IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-156CMW

Hanwha SBP-156CMW Telescoping Ceiling Mount

Telescoping ceiling mount for PTZ cameras, 34–57 inches adjustable
- Adjusts 34.1–56.5 inches to fit variable ceiling heights without custom mounts
- Lightweight aluminum construction at 4.2 kg handles single-technician installation
- White RAL9003 finish blends into drop ceilings and modern office interiors
In stock · Ships same business day

$255.00 $190.99 Save $64.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-156KMW

Hanwha SBP-156KMW White Corner Mount Adapter

Corner mount adapter for Hanwha cameras, IP66 rated, 6 kg capacity
- IP66 rated aluminum construction handles outdoor rain, dust, and spray
- 6 kg load capacity supports most compact and mid-range Hanwha cameras
- Corner-specific geometry covers two perpendicular surfaces from one mount
In stock · Ships same business day

$119.00 $89.99 Save $29.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-156LMW

Hanwha SBP-156LMW White Telescoping Parapet Mount

Telescoping parapet mount for Wisenet PTZ, 853–1116mm height range
- Adjustable height 853–1116mm handles variable parapet thickness without field cuts
- Aluminum alloy with white powder coat resists salt spray and UV degradation
- Lightweight 7.1 kg design enables solo rooftop installation by one technician
In stock · Ships same business day

$435.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-156LMW1

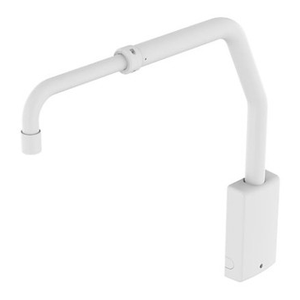

Hanwha SBP-156LMW1 Telescopic Parapet Mount

Telescopic parapet mount with 835–1098 mm height adjustment for outdoor camera placement
- Adjustable arm compensates for varying wall thicknesses without custom fabrication or hardware swaps
- Aluminum construction with RAL9003 white finish resists rust and UV degradation in outdoor exposure
- Compact 1000 × 95 mm base minimizes visual footprint and wind load on parapet edges
In stock · Ships same business day

$410.00 $307.99 Save $102.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-160C

Hanwha SBP-160C Mounting Hole Cover Pack of 5

White polycarbonate hole covers for Hanwha wall mount brackets
- Pack of 5 covers fits SBP-250WMW and SBP-400WMW brackets
- Polycarbonate construction resists dust and debris exposure
- 170.65mm square covers conceal cable entry points and unused apertures
Special Order · Ships in 2-3 weeks

$30.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-160HMW1

Hanwha SBP-160HMW1 White Cap Adapter

PF 1½" pole mount adapter for Hanwha XND/PND/XNV/XNF cameras
- Aluminum core with plastic cap resists corrosion at 320g total weight
- TR20 camera screw matches Hanwha dome and bullet mount bosses
- White finish (RAL9003) with compact Φ175×67mm profile for pole mount
In stock · Ships same business day

$50.00 $33.99 Save $16.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-160TM

Hanwha SBP-160TM Tilted Wall Mount

23° tilted wall mount for 16+ Hanwha dome cameras
- Fixed 23° tilt angle optimizes camera positioning without adapters
- Lightweight aluminum construction rated for indoor and outdoor walls
- Compact 5.9" × 6.1" × 4.2" design fits discreetly on standard surfaces
Special Order · Ships in 2-3 weeks

$25.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-160TMW1

Hanwha SBP-160TMW1 Tiled Wall Mount

White aluminum wall mount with 20° tilt for Hanwha IP cameras
- 20° tilt range optimizes viewing angle without full pan-tilt complexity
- Aluminum construction resists corrosion in humid retail and indoor spaces
- Designed for flush alignment on tiled or flat wall surfaces
In stock · Ships same business day

$49.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-160WMW1

Hanwha SBP-160WMW1 Wall Mount for Network Cameras

Wall mount for Hanwha network cameras with adjustable positioning
- Fits single, double, 4" octagon, and 4" square gang boxes for flush installation
- M25 conduit port routes cables inside walls to hide Ethernet and power runs
- Aluminum body with polycarbonate cover weighs just 1.53 lbs for easy mounting
In stock · Ships same business day

$79.00 $52.99 Save $26.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-167HM

Hanwha SBP-167HM Cap Adapter, Ivory

PF 1 1/2" threaded cap adapter for XND-6081V/8081V cameras, ivory
- PF 1 1/2" male thread mount integrates directly with XND series housings
- Ivory finish blends into ceiling and wall installations without visibility
- Precision OEM accessory maintains consistent mechanical tolerances across installs
In stock · Ships same business day

$50.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-168HMB

Hanwha SBP-168HMB Cap Adapter for XNP-6120H

Matte black cap adapter for XNP-6120H 2MP outdoor mini PTZ
- Direct fit for XNP-6120H with IP66/IK10 weather protection maintained
- Compact design mounts securely on fixed surveillance installations
- Matte black finish reduces reflections in diverse outdoor environments
Special Order · Ships in 2-3 weeks

$109.99

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: SBP-180C

Hanwha SBP-180C Mounting Hole Cover Plate Pack

Pack of 5 white cover plates for Hanwha vandal dome housings
- Conceals mounting holes on SBP-250WMW and SBP-400WMW housings
- White polycarbonate construction rated for indoor and outdoor use
- 7.5" square plates install quickly on compatible XNV and PNV cameras
Special Order · Ships in 2-3 weeks

$30.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-180CMB

Hanwha SBP-180CMB Ceiling Mount Base

180mm ceiling mount base for Hanwha dome cameras, indoor use
- 180mm diameter spreads load across drywall or suspended tile safely
- Aluminum construction with white finish blends with acoustic ceilings
- TR30 interface plus dual conduit holes (3/4" and M25) for flex install
In stock · Ships same business day

$130.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-180CMS

Hanwha SBP-180CMS Swivel Ceiling Mount Base

Ceiling swivel base for Hanwha domes—adjust angle post-install
- Ball-head design allows pan/tilt adjustment after mounting, no remounting
- 180mm aluminum base with low 86.5mm profile fits standard drop ceilings
- TR30 camera interface and M25 conduit hole for cable routing included
In stock · Ships same business day

$170.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-180HMW1

Hanwha SBP-180HMW1 White Cap Adapter

White cap adapter for Hanwha XNV & PNV-A cameras with TR20 mount
- Aluminum core with plastic cap in RAL9003 white blends into ceiling
- Lightweight 340g design minimizes load on mounting infrastructure
- Compact Φ195 × 67mm form fits tight ceiling plenums and conduit spaces
In stock · Ships same business day

$50.00 $33.99 Save $16.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: SBP-187HM

Hanwha SBP-187HM Cap Adapter, Ivory

PF 1 1/2" cap adapter for XNV-6081/8081 ceiling mounts, ivory
- Standard PF 1 1/2" male thread connects to existing mounting infrastructure
- Ivory finish blends into indoor ceiling grids and light-colored surfaces
- Precision-engineered tolerances prevent play and vibration on mounted camera
In stock · Ships same business day

$50.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Hanwha SBP-156CMW Telescoping Ceiling Mount

Hanwha SBP-156KMW White Corner Mount Adapter

Hanwha SBP-156LMW White Telescoping Parapet Mount

Hanwha SBP-156LMW1 Telescopic Parapet Mount

Hanwha SBP-160C Mounting Hole Cover Pack of 5

Hanwha SBP-160HMW1 White Cap Adapter

Hanwha SBP-160TM Tilted Wall Mount

Hanwha SBP-160TMW1 Tiled Wall Mount

Hanwha SBP-160WMW1 Wall Mount for Network Cameras

Hanwha SBP-167HM Cap Adapter, Ivory

Hanwha SBP-168HMB Cap Adapter for XNP-6120H

Hanwha SBP-180C Mounting Hole Cover Plate Pack

Hanwha SBP-180CMB Ceiling Mount Base

Hanwha SBP-180CMS Swivel Ceiling Mount Base

Hanwha SBP-180HMW1 White Cap Adapter

Hanwha SBP-187HM Cap Adapter, Ivory

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
