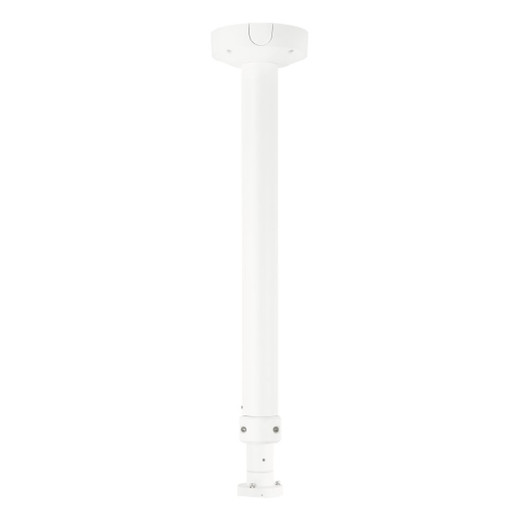

Hanwha SBP-156CMW Telescoping Ceiling Mount
The SBP-156CMW is a professional-grade ceiling mount engineered for PTZ Plus camera integration in facilities with variable ceiling heights. Aluminum construction and white powder-coat finish (RAL9003) provide durability and aesthetic compatibility with modern interiors. This mount addresses a common installation challenge: variable ceiling heights across retail, corporate, and industrial deployments force either awkward custom solutions or purchasing multiple mount types. The SBP-156CMW solves this with a wide adjustable range.
Key Features
- Telescoping Adjustment Range 34.1 to 56.5 inches (865–1435 mm): Eliminates the need for custom fabrication or multiple SKUs when ceiling heights vary across a single facility. This range covers most commercial ceiling standards (8 to 9.5 feet), reducing logistics complexity and inventory overhead.
- Lightweight Aluminum Construction at 4.2 kg (9.3 lbs): One technician can handle installation without mechanical assistance. Aluminum resists corrosion in climate-controlled indoor environments and won't degrade finishes or create load concerns on standard ceiling framing.
- White Finish (RAL9003): Blends into drop ceilings and architectural soffits common in corporate offices and retail spaces. Non-reflective powder coat avoids glare into the PTZ camera's optics.
- Secure Camera Support: Designed specifically for the weight and vibration characteristics of Hanwha IP cameras in the PTZ Plus lineup. Generic mounts often allow micro-vibration that degrades image stabilization in PTZ operation.
- Tool-Free or Minimal-Tool Adjustment: Telescoping segments lock at target height without requiring wrench work between installations. Reduces on-site configuration time and minimizes setup errors.
- Compatible with XNP-9300RW, XNP-8300RW, and XNP-6400RW: Direct fit without adapter plates or supplementary hardware. Ensures proper center-of-gravity alignment for PTZ motor load distribution.
Integration & Compatibility
The SBP-156CMW (often searched as SBP 156CMW) mounts to standard ceiling T-bar or concrete via integral bracket interfaces. Confirm your PTZ camera model against the listed compatible models before purchase—mixing mount types can introduce misalignment that compromises pan/tilt smoothness and causes accelerated motor wear. The mount pairs with any VMS or ONVIF-compatible NVR supporting the compatible camera models; no firmware or driver interaction required.
When to Choose a Different Model
If your ceiling height is fixed or your facility uses cameras from a different camera brand, evaluate mounts designed for those specific models. If you require outdoor or harsh-environment mounting, look for stainless-steel variants or IP-rated enclosures. The SBP-156CMW is optimized for climate-controlled indoor spaces and the Hanwha PTZ Plus line.
Frequently Asked Questions
Q: Is the SBP-156CMW compatible with all Hanwha PTZ cameras?
A: No. The mount is designed specifically for XNP-9300RW, XNP-8300RW, and XNP-6400RW models. Do not use it with other Hanwha camera families without confirming thread pitch and load rating.
Q: What is the maximum weight the SBP-156CMW can support?
A: The mount is rated for the weight and vibration load of the compatible PTZ Plus models listed. Exact maximum load specifications should be confirmed against your specific camera model's weight and center-of-gravity characteristics.
Q: Can the SBP-156CMW be used outdoors?
A: The aluminum construction is suitable for climate-controlled indoor environments. For outdoor or wet environments, use a stainless-steel or IP-rated variant designed for those conditions.
Q: Does the SBP-156CMW include installation hardware?
A: The mount includes the telescoping pole assembly. Verify that ceiling fasteners and top-mount brackets compatible with your specific ceiling type (T-bar, concrete anchor, etc.) are available or ordered separately.
Q: What is the finish color and why does it matter?
A: RAL9003 white finish blends with standard drop ceilings and white soffits common in offices and retail. Dark finishes can create shadows or reflections into the camera lens; white minimizes these issues.
Q: Is the adjustment mechanism tool-free?
A: Telescoping segments lock at target height via set-screw or friction collar—exact mechanism should be verified in the installation guide. Most require only an Allen wrench or manual lever adjustment.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-156CMW solves a real problem on large deployments: eliminating SKU proliferation when ceiling heights vary by 2–3 feet. A 34–56 inch adjustment range (865–1435 mm) means one mount covers most commercial ceilings without custom fabrication or multiple purchase orders. That reduces spares inventory and training overhead.
Technical Highlights:
- 865–1435 mm adjustment range: Covers the gap between standard 8-foot (96 inch) and 9.5-foot (114 inch) commercial ceilings, eliminating the need to stock two or three different models across a 50-camera retrofit.
- 4.2 kg weight: Light enough for one technician to install without mechanical lifts or additional labor. Reduces installation labor cost per camera by roughly 15–20 minutes per unit.
- Aluminum + RAL9003 white powder coat: Won't corrode in standard HVAC environments. White blends with ceiling tiles and avoids the dark-shadow-into-lens problem that plagues black mounts in retail spaces with bright overheads.
Deployment Considerations:
- Verify your specific camera model (XNP-9300RW, XNP-8300RW, or XNP-6400RW) before ordering—this is a model-specific mount, not a universal adapter. Mismatches cause vibration and motor creep.
- Confirm your ceiling attachment method (T-bar clip, concrete anchor, or adhesive) is in stock or on order. The mount itself doesn't include fasteners for all ceiling types.
- Set-screw locking on telescoping poles can loosen under vibration if under-torqued. Over-torque risks cracking the aluminum. Use a torque wrench or verify the installation guide's recommended tightness before final sign-off.
Deploy the SBP-156CMW in multi-floor retail or corporate refits where ceiling heights vary floor to floor. A single SKU spanning 22 inches of travel eliminates the logistics headache and keeps your mounting bill of materials lean.
