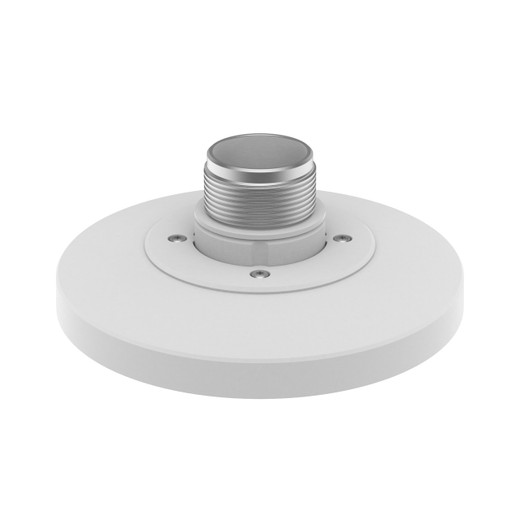

Hanwha SBP-160HMW1 White Cap Adapter

Hanwha SBP-160HMW1 White Cap Adapter

The Hanwha SBP-160HMW1 is a professional mounting adapter designed to standardize and simplify camera installation across Hanwha IP camera deployments. This adapter bridges the gap between pole or wall infrastructure and multiple Hanwha camera models, eliminating the need for custom fabrication or adapter stacking during commissioning.

Key Features

• Aluminum core with plastic cap construction — aluminum resists corrosion and provides structural rigidity, while the plastic cap offers weather resistance without adding bulk. This hybrid design keeps weight to 320g, simplifying mounting on existing poles without over-torquing threaded connections.
• PF 1 1/2" male aluminum mount thread — standard female receptacle on most commercial pole mounts (lighting, traffic, utility poles). This thread size is common in outdoor security infrastructure, reducing the risk of incompatible adapters mid-deployment.
• TR20 camera attachment screw — matches the standardized mount boss on compatible Hanwha domes and bullets. Ensures consistent, repeatable alignment without guesswork during installation.
• White finish (RAL9003) — professional appearance that blends into most architectural environments. Reduces visual clutter compared to unpainted metal or mixed finishes across a surveillance network.
• Compact dimensions: Φ175 x 67mm (6.89" diameter × 2.64" height) — compact profile minimizes wind loading on poles and simplifies concealment in ceiling cavities or wall recesses. Low profile is critical when aesthetics or structural deflection are concerns.
• Broad camera compatibility — engineered for XND, PND, XNV, and XNF camera series, covering fixed domes, panoramic models, and vandal-resistant variants. This compatibility eliminates the need to stock multiple adapter SKUs for different camera types within the same facility.

Integration & Compatibility

The SBP-160HMW1 integrates with the following camera models: XND-C6083RV, XND-7083RV, XND-8083RV, XND-9083RV, XND-6083RV, XND-8093RV, XND-8082RV, XND-9082RV, PND-A6081RV, PND-9081RV, XNV-C6083R, XNV-7083R, XNV-8083R, XNV-9083R, XNF-9013RV, and XNF-9010RV. Verify your camera's mount boss specification (TR20 screw) before ordering to confirm fit. For pole mounting brackets and infrastructure verification, confirm the PF 1 1/2" female thread is present on your pole adapter or wall-mounted infrastructure.

Deployment Scenarios

Ideal for pole-mounted surveillance in parking lots, building perimeters, and utility infrastructure where standardized threading ensures repeatability across dozens of installations. Also suited for wall-mounted and elevated ceiling deployments in retail, warehouse, and industrial facilities where consistent aesthetic presentation is required. The white finish maintains a cohesive appearance across mixed-brand environments when deployed alongside neutral-colored cabling and conduit.

Frequently Asked Questions

Q: Will the SBP-160HMW1 work with my existing pole mount infrastructure?

A: Yes, provided your pole adapter has a female PF 1 1/2" thread receptacle. This is the standard thread size for most commercial and utility pole mounts. If your infrastructure uses a different thread size (e.g., PF 1"), this adapter will not thread correctly — contact the pole mount manufacturer to verify compatibility.

Q: Can I use the SBP-160HMW1 with non-Hanwha cameras?

A: No. The TR20 camera screw mount and dimensions are engineered specifically for Hanwha XND, PND, XNV, and XNF series cameras. Other brands' mount bosses will not align properly with the TR20 attachment point.

Q: Is the white finish durable in outdoor UV exposure?

A: The plastic cap and aluminum core are designed for outdoor weathering, but long-term UV exposure may cause minor discoloration over 3–5 years depending on climate. The structural integrity and corrosion resistance remain unaffected. If color preservation is critical, consider repainting or shielding the adapter from direct sunlight.

Q: What is the maximum load the SBP-160HMW1 can support?

A: Load capacity depends on the pole mount infrastructure, not the adapter itself. The aluminum core is rated for the weight of a single Hanwha dome or bullet camera (typically 200–400g). Do not stack multiple cameras or heavy auxiliary equipment on a single adapter.

Q: Do I need any tools to install the SBP-160HMW1?

A: Standard installation requires a wrench or socket for the PF 1 1/2" male thread connection and a Torx TR20 driver for the camera attachment screw. No special tools are required.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SBP-160HMW1 solves a real integration problem: standardizing mount interfaces across heterogeneous Hanwha camera deployments without custom fabrication. The aluminum + plastic hybrid construction and PF 1 1/2" male thread are the engineering specifics that matter here — they ensure this adapter plays well with standard utility pole infrastructure while keeping weight low enough that you won't need structural reinforcement.

Technical Highlights:

• Aluminum core + plastic cap hybrid — balances corrosion resistance (aluminum) with weather-sealing and weight reduction (plastic cap). At 320g total, the adapter won't create leverage stress on pole mounts or cause sagging in ceiling installations where deflection is a concern.
• PF 1 1/2" male thread — matches female receptacles on the majority of commercial pole adapters and infrastructure-standard mounts. Eliminates the need to source custom thread reducers or fabricate transition rings mid-deployment.
• TR20 screw standardization — ensures repeatable camera attachment torque and alignment across all compatible Hanwha models (XND, PND, XNV, XNF series). Reduces misalignment incidents and simplifies field technician onboarding.

Deployment Considerations:

• Thread compatibility is non-negotiable — verify your pole mount has a female PF 1 1/2" receptacle before deployment. A PF 1" or non-standard thread will cause the adapter to fail. Check infrastructure specs, not just the camera documentation.
• White finish and UV exposure — RAL9003 white may discolor over 3–5 years in direct sunlight, though structural integrity remains intact. If your facility requires color consistency across the network after commissioning, plan for periodic repainting or consider pole shade placement.
• Single-camera per adapter — the aluminum core is engineered for one camera mount, not stacked or dual configurations. Exceeding this will introduce twist and eventual loosening.

The SBP-160HMW1 is strongest in medium to large Hanwha camera rollouts where you're standardizing across multiple pole and wall mount points — parking facilities, perimeter security, and utility monitoring. If your infrastructure mixes thread sizes or you're integrating single cameras into existing mixed-vendor environments, verify the mount interface first; this adapter only works if the threading aligns.
