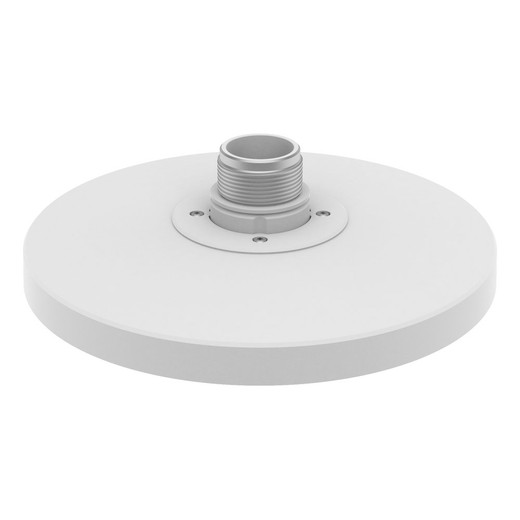

Hanwha SBP-250HMW White Cap Adapter

Hanwha SBP-250HMW White Cap Adapter

The SBP-250HMW is a precision aluminum cap adapter engineered for hanging-mount installations on Hanwha IP cameras in the PNM series. Its white finish—rather than black or raw aluminum—matters in deployments where the ceiling or mounting surface is light-colored; it reduces visual contrast and blends into modern office, retail, and educational environments where camera presence should be visually discrete.

Key Features

• Aluminum Construction: Lightweight yet rigid material withstands vibration and temperature cycling without warping, ensuring the camera remains level and maintains focus over months of operation.
• White Finish: Reduces visual prominence in light-colored ceilings and walls—a practical choice when you need surveillance without drawing attention to the hardware itself.
• PF 1 1/2" Male Mounting Thread: Standard pipe-thread connection compatible with Hanwha's PNM camera line; allows direct mounting to existing threaded conduit, pendant arms, or junction boxes without adapters.
• TR20 Mount Screw: Torx-head fastener (size TR20) provides secure engagement and resists corrosion better than Phillips or slotted screws in humid or coastal environments.
• Hanging Mount Design: Optimized for ceiling-pendant and overhead conduit installations where the cap adapter bridges between the camera body and the structural mounting point, allowing the camera to hang cleanly without exposed threads or rough edges.
• Low Profile: Minimal extension between the PNM camera and mounting surface preserves sightlines and reduces the mechanical footprint in tight ceiling cavities.

Integration & Compatibility

The SBP-250HMW is engineered exclusively for the Hanwha PNM series. Confirmed compatible models include:

• PNM-9084QZ
• PNM-9084QZ1
• PNM-C16083RVQ
• PNM-C32083RVQ

Do not attempt cross-fitting this adapter to other manufacturers' camera lines or non-PNM Hanwha models; the PF 1 1/2" thread pitch and mounting geometry are specific to the PNM platform. If your camera uses a different mounting thread size or proprietary quick-connect, consult the camera's installation guide or contact the camera manufacturer for the correct adapter.

Deployment Context

This adapter is most useful in corporate offices, warehouses, retail locations, and educational facilities where ceiling-mounted cameras feed into a networked NVR or cloud-based recording system. The white finish works best in drop-ceilings or drywall environments; in concrete or dark-colored industrial settings, a black adapter variant may be preferable. When planning the mounting point, ensure adequate space above the camera body for focus adjustment and for any PoE power connections at the junction box. The TR20 screw should be tightened firmly but not over-torqued—hand-tight plus a quarter turn is typical for aluminum-to-aluminum connections.

Frequently Asked Questions

Q: Is the SBP-250HMW (often searched as SBP 250HMW) compatible with other Hanwha camera models outside the PNM series?

A: No. The PF 1 1/2" thread and TR20 mount screw are designed exclusively for PNM-series cameras. Other Hanwha lines use different mounting specifications.

Q: Can I use this adapter with a wall-mounted camera instead of a hanging mount?

A: This adapter is optimized for pendant and ceiling-hanging applications. For wall mounts, check whether the PNM camera supports wall-bracket adapters separately; the SBP-250HMW mounting geometry is not ideal for wall deployment.

Q: What tools do I need to install the SBP-250HMW?

A: A Torx TR20 wrench or socket driver is required to secure the mount screw. Standard conduit or threaded-pipe tools may be needed to prepare the hanging point. A level is recommended to verify proper camera alignment after installation.

Q: Will the white finish fade or yellow over time in outdoor sunlight?

A: Aluminum can weather in direct UV exposure. For extended outdoor use (rooftops, eaves), consider a black or dark-gray variant or apply UV-protective coating to the white adapter.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SBP-250HMW is a straightforward but essential piece of hardware if you're building a Hanwha PNM camera installation on a threaded pendant or conduit. The PF 1 1/2" male thread is the standard in commercial ceiling mounts, so this adapter acts as the critical interface between the camera body and whatever structural or electrical conduit you're hanging it from. Get this detail right, and the camera stays level and secure for years; get it wrong, and you'll be re-mounting after a few months of vibration.

Technical Highlights:

• PF 1 1/2" Male Thread: Direct compatibility with standard commercial ceiling-pendant and conduit arms means zero additional adapters in the mounting chain—fewer points of failure and faster installation.
• Aluminum Body: Resists corrosion better than steel in humid or salt-air environments (coastal facilities, food-service warehouses); won't rust and seize like bare iron would over 3–5 years.
• TR20 Torx Screw: Torx fasteners grip more securely than Phillips or slotted heads and are less prone to stripping, a real advantage when you're tightening by hand on a ladder and can't always feel the exact torque limit.

Deployment Considerations:

• White finish is not a minor cosmetic choice—in light-colored drop-ceiling environments, it genuinely reduces visual prominence. In dark warehouses or outdoor rooftop settings, the white stands out more than dark variants would.
• This adapter is PNM-only. Attempting to fit it to a Wisenet non-PNM camera or a competitor's line will waste time and potentially damage threads; verify the camera model before ordering.
• The SBP-250HMW adds minimal height above the junction box, so there's still room for PoE connectors and splitter boxes if you're using an splitter architecture instead of native PoE switches.

Best suited to corporate office builds and retail chains where ceiling-mounted cameras need to blend in visually and where you're standardizing on PNM hardware for consistency across multiple locations. If you're doing a mixed-brand deployment, this adapter only solves the Hanwha half of the problem.
