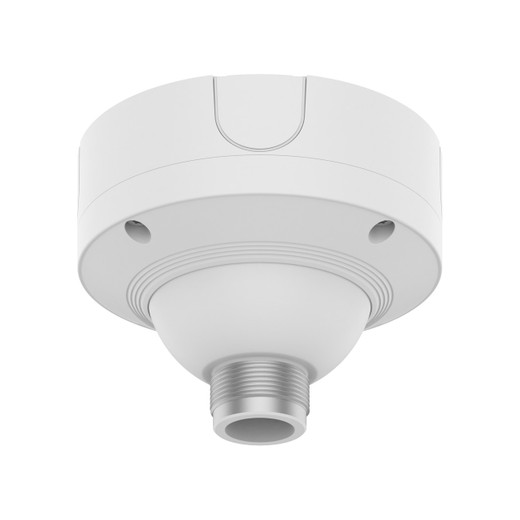

Hanwha SBP-180CMS Swivel Ceiling Mount Base
Overview
The Hanwha SBP-180CMS is a ceiling-mounted swivel base engineered for Hanwha IP dome cameras. The ball-head design lets you adjust pan and tilt angles after the mount is secured to the ceiling—eliminating the common integration friction point where fixed mounts force you to predict the exact angle before installation. If sight lines need adjustment later, you unlock the swivel mechanism, reposition, and lock again. No unmounting, no ceiling re-penetration.
Key Features
- Ball-head swivel mechanism: Pan and tilt adjustment happens post-installation without removing the camera body. Saves labor during commissioning and reduces the number of ceiling penetrations needed for multi-camera deployments—a real cost factor on large warehouse or retail projects.
- 180mm diameter aluminum base: The 7.09-inch footprint distributes load across a wide area, reducing point stress on ceiling fasteners and drywall anchors. Aluminum keeps the mount itself lightweight at 970g (2.14 lbs), so standard drop-ceiling grids and drywall anchors handle it without reinforcement—important in retrofit scenarios where structural upgrades aren't an option.
- Low profile height (86.5mm / 3.41 inches): Sits flush enough to avoid fouling suspended ceiling tiles or architectural details common in offices and warehouses. Still provides clearance for cable strain relief and conduit routing below the mount point without creating a snag hazard during maintenance.
- TR30 screw mount interface: Standardized attachment point for compatible Hanwha dome cameras ensures a repeatable, secure connection across the product family. Not cross-compatible with other vendors' optics—verify your camera model before ordering.
- M25 conduit hole (19.1mm pre-drilled opening): Routes network and power cables through the mount base into the ceiling void, keeping wiring organized and out of sight. Supports standard M25 cable glands for a finished, professional appearance on exposed or semi-exposed ceilings.
- White finish (RAL 9003): Blends into most ceiling environments without requiring paint touch-up. Aluminum resists corrosion in dry indoor spaces; not rated for outdoor humidity or temperature swings.
Compatibility
The SBP-180CMS mounts Hanwha dome cameras with TR30 screw interface, including models SBP-C15P, SBP-150CMP, SBP-300CMP, and SBP-900CMP. Verify your camera model against this list—the TR30 interface is Hanwha-specific and will not accept cameras from other manufacturers. If you're deploying a mixed-brand surveillance system, confirm mount compatibility during the design phase.
Deployment Context
Deploy this mount in indoor surveillance environments—retail ceilings, office spaces, warehouse overhead areas, and facility monitoring zones where exact sight lines are hard to predict during rough-in. The swivel capability is especially valuable when viewing angles shift after initial deployment or when multiple cameras must cover overlapping zones from a single penetration point. The aluminum construction and cable management design make this a practical choice for integrator installations where neatness, maintainability, and professional finish matter.
Frequently Asked Questions
Q: Which Hanwha cameras are compatible with the SBP-180CMS?
A: The SBP-180CMS is compatible with Hanwha models SBP-C15P, SBP-150CMP, SBP-300CMP, and SBP-900CMP. All use the TR30 screw mount interface. Always confirm your camera model before purchasing—the interface is specific to this Hanwha dome family and will not accept cameras from other manufacturers.
Q: Can I adjust the camera angle after the mount is bolted to the ceiling?
A: Yes. The ball-head swivel mechanism permits pan and tilt adjustment after installation. Once positioned to your satisfaction, you lock the swivel to hold the angle. This eliminates the need to unmount the camera if angle tweaking is required during commissioning or if viewing requirements change later.
Q: Is the SBP-180CMS rated for outdoor deployment?
A: No. The SBP-180CMS is designed for indoor use only. Aluminum construction and white finish are suited to dry interior environments. For outdoor ceiling-mount applications, consult Hanwha's outdoor-rated accessory line or consider wall or pole mounting with weatherproof housings.
Q: What fastening method does the base use?
A: The SBP-180CMS is bolted to the ceiling using standard anchor hardware. The 180mm diameter base distributes load across a wide footprint, reducing stress on fasteners. Drywall anchors or drop-ceiling hardware suitable for a ~1 kg load are typical for most indoor deployments; verify anchor rating against your ceiling system before installation.
Q: Does the mount support cable routing?
A: Yes. The M25 conduit hole (19.1mm diameter) is pre-drilled to route network and power cables through the base into the ceiling void. Standard M25 cable glands finish the opening and protect cable ingress from snagging during maintenance.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-180CMS solves a real installation pain point: fixed ceiling mounts force you to nail down your viewing angle before the camera body is attached. The Hanwha SBP-180CMS swivel mechanism flips that—lock the base, adjust angles after, then secure. On a 40-camera warehouse retrofit, that flexibility cuts commissioning labor by hours and keeps your penetration count down.
Technical Highlights:
- 180mm aluminum base distributes load across a 7-inch footprint: Means you can deploy on standard drywall anchors and drop-ceiling hardware without needing structural reinforcement. At 970g total weight, the mount itself imposes almost no structural demand—a real advantage in retrofit scenarios where reinforcing the ceiling costs time and money.
- Ball-head swivel with locking mechanism: Pan and tilt post-install, lock when dialed in. Eliminates the unmount-and-remount cycle if angles need tweaking during commissioning or after the system has been live for a while.
- M25 conduit hole routes cables through the base: Keeps network and power cables organized and out of the ceiling void clutter. Standard M25 glands finish the opening cleanly—matters on visible or semi-exposed ceilings.
Deployment Considerations:
- The SBP-180CMS is TR30-specific to Hanwha domes (SBP-C15P, SBP-150CMP, SBP-300CMP, SBP-900CMP). If your system mixes vendors, you'll need different mounts for non-Hanwha cameras—plan your BOM accordingly during design.
- Indoor-only rating: aluminum and white finish don't handle outdoor humidity or temperature swings. Confirm your deployment is dry interior before ordering.
- The 86.5mm height is low enough for drop ceilings but verify clearance with your exact ceiling type during rough-in. Some modular grid systems have very tight tolerances.
Best fit: retail, office, and warehouse ceiling deployments where you need post-install angle adjustment and professional appearance matters. Saves labor and looks clean. Skip this if you're deploying outdoor or mixed-brand camera systems.
