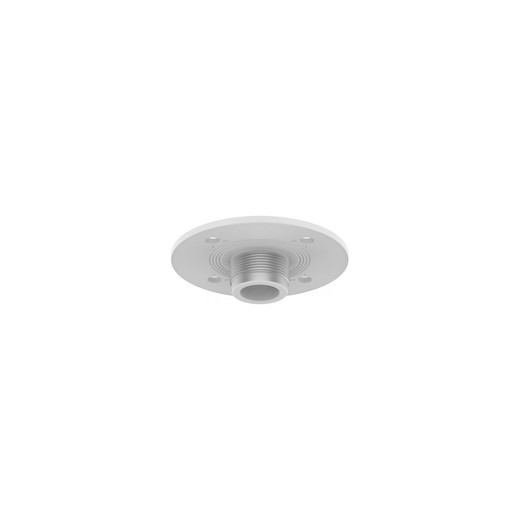

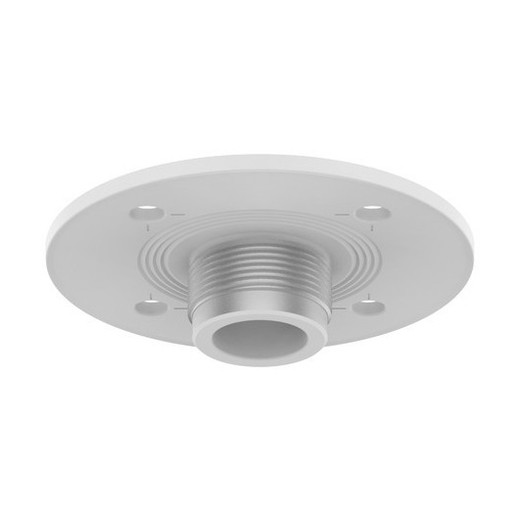

Hanwha SBP-140CMB Ceiling Mount Base
The Hanwha SBP-140CMB is a professional-grade aluminum ceiling mount base designed to anchor network cameras in fixed overhead deployments. It serves as the foundation for straightforward ceiling-mounted surveillance in retail, office, warehouse, and industrial facilities where you want the camera secure, level, and visually understated.
Key Features
- 140mm diameter footprint: Sized to match standard ceiling tile grids and junction box openings in commercial buildings — reduces layout conflicts and simplifies pre-installation planning.
- Aluminum construction with RAL9003 white finish: Resists corrosion and blends into white or light-colored ceilings. Weight distributed across the mount prevents sagging or creep over time, even under vibration from HVAC systems.
- 33mm compact height: Minimal profile means the camera sits closer to the ceiling plane, reducing visual clutter and the shadow cast below the lens. Critical in retail or office spaces where aesthetics matter alongside security coverage.
- M10 mount screw interface: Standard across most fixed-dome and turret-style IP cameras in the Hanwha catalog and compatible third-party lines. Ensures a secure, repeatable mechanical interface without adapter plates.
- 250g lightweight design: Easy single-technician installation — no special lift equipment needed, even when working at height on a ladder. Reduces install time and labor cost per camera.
- Compatible with extension pipes (SBP-150CMP, SBP-300CMP, SBP-900CMP): If your ceiling-to-target distance is greater than the base alone allows, stack extension pipes to reach the desired drop distance. Maintains M10 thread continuity through the stack, so you can configure height post-installation without swapping hardware.
Integration & Compatibility
The SBP-140CMB works with any IP camera or sensor head that uses an M10 mounting screw. It does not include the camera itself — this is the mount base only. Pair it with fixed-dome cameras, compact turrets, or sensor modules from Hanwha's surveillance line or compatible OEM products. If you are deploying multiple cameras across a facility, confirm the camera's weight (typically 300–600g for compact domes) does not exceed the structural capacity of your ceiling system; the base itself is rated for standard interior drywall and tile with proper fasteners.
What's in the Box
- 1x SBP-140CMB ceiling mount base (aluminum, RAL9003 white)
- Mounting hardware (fasteners for standard drywall anchors and tile grids)
Frequently Asked Questions
Q: Can I use the SBP-140CMB outdoors?
A: The aluminum construction resists corrosion, but the base itself has no IP rating. Use it in covered soffits or protected eaves only. For exposed outdoor installations, specify a powder-coated or stainless-steel mount rated IP66 or higher.
Q: What cameras work with the M10 screw interface?
A: Most fixed-dome and compact turret-style IP cameras use M10 threads. Verify your camera's mounting spec before purchase. PTZ cameras, larger turrets, or modular sensor heads may require different mounts.
Q: Do I need an extension pipe, or will the base alone work?
A: The 33mm height is sufficient if your camera's optical center sits roughly 1.3 inches below the ceiling surface. If you need the lens 6 inches or more below the ceiling (for aesthetics, glare reduction, or field-of-view adjustment), add a 150mm, 300mm, or 900mm extension pipe.
Q: Is the SBP-140CMB NDAA or TAA compliant?
A: The mount is a passive aluminum bracket with no electronics, so compliance status is determined by the camera mounted on it. Verify your camera's certifications separately.
Q: Can the base be painted or finished after installation?
A: Yes. The RAL9003 white is a standard industrial finish that can be repainted if ceiling color changes occur during facility renovation. Allow paint to cure fully before mounting the camera to avoid adhesion issues.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-140CMB (often searched as SBP 140CMB) is straightforward hardware — aluminum base, M10 thread, done. What makes it a sensible choice is the spec-to-installation balance: 140mm diameter matches standard ceiling grids, 33mm height keeps the camera tight to the plenum, and 250g weight means you're not wrestling hardware on a lift or ladder. If your deployment spec calls for fixed overhead cameras in a retail, office, or warehouse environment with standard drywall or tile ceiling, this base will not slow you down.
Technical Highlights:
- 140mm diameter footprint: Aligns with 12-inch ceiling tile grids common in North American commercial construction. Reduces the likelihood of ceiling trim or junction-box conflicts before you even mount the camera.
- M10 screw interface: Matches the vast majority of compact fixed-dome and turret cameras. No adapter plates, no cross-threading risk, just align and lock. Repeatability across a multi-camera install cuts commissioning time.
- 33mm (1.3-inch) compact profile: Close-to-ceiling mounting minimizes the visual footprint and shadows cast on surfaces below. In retail or office ceilings, this matters for customer perception and incident documentation — less distraction, clearer sightlines to the lens.
Deployment Considerations:
- The SBP-140CMB is a mount base only. It includes no cable conduit, camera housing, or surge protection. Run your CAT6 and PoE lines separately through ceiling plenum before attaching the base, or plan for a conduit run alongside the extension pipe if you use one.
- Ceiling structure matters: drywall anchors are sufficient for interior suspended ceilings, but concrete decks require masonry fasteners. Specify the right anchor hardware during site survey — this base's 250g weight plus your camera's 300–600g means the fastener pullout load must be rated for roughly 1 kg (2.2 lbs) per camera. Not a problem in normal conditions, but skip this mount for acoustical tile with no backing or deteriorated plaster.
- If you plan to upgrade the camera in the future, the M10 thread and 140mm footprint give you flexibility — you are not locked to one camera model. That said, confirm weight and CG (center of gravity) of the replacement camera before swap.
Choose the SBP-140CMB when you are deploying fixed-dome or compact turret IP cameras in standard commercial ceilings — retail, office, light industrial — and you want a mount that disappears into the infrastructure. It will not add fuss to the install, and it handles camera rotation, cable management, and future swaps without surprises. For outdoor, high-vibration, or specialty mounting scenarios (PTZ arrays, modular sensor heads, weatherproof environments), evaluate alternative mount families in the Hanwha lineup.
