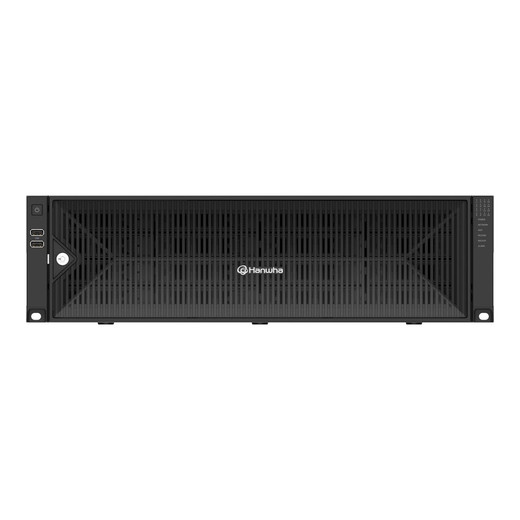

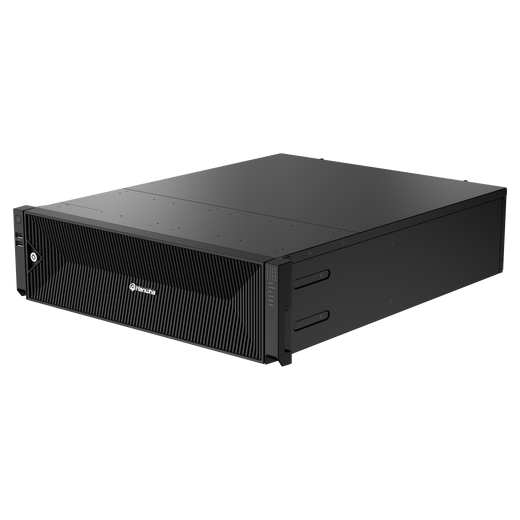

Hanwha XRN-6420DB4 64-Channel 8K NVR 96TB
The Hanwha XRN-6420DB4 is an enterprise-grade 64-channel 8K NVR engineered for large-scale surveillance deployments requiring maximum recording capacity and high-resolution support. Built on 12th-generation Intel processors, this unit combines 32MP recording capability with 96TB configured storage and advanced redundancy features, making it ideal for mission-critical security infrastructure in government, transportation, and industrial environments.
Key Features
- 64-channel 32MP maximum resolution support with H.265, H.264, and MJPEG codec compatibility
- 96TB raw storage capacity with 16 SATA HDD bays (up to 10TB per drive)
- 520 Mbps recording bandwidth (distributed mode) and 200 Mbps playback bandwidth
- RAID 5/6 support with automatic hot-swap and N+1 failover for business continuity
- Dual HDMI outputs: 4K at 30Hz and 1080p at 60Hz for simultaneous monitoring
- Two-way audio support with PoE compatibility for integrated communications
- WiseStream codec optimization to reduce bandwidth and storage consumption
- Automatic Recovery Backup (ARB) and iSCSI external storage integration
Recording and Performance
The XRN-6420DB4 handles demanding surveillance workloads with dual-stream recording, enabling simultaneous high-resolution archival and lower-bandwidth live viewing. Schedule-based, event-triggered, and continuous recording modes with pre- and post-event buffering provide flexible deployment options. Up to 200 Mbps playback bandwidth supports rapid forensic review across multiple channels and timeframes.
Storage and Reliability
With 16 SATA bays expandable to 160TB total capacity, this NVR accommodates extended retention periods for large surveillance networks. RAID 5 and RAID 6 configurations deliver fault tolerance without sacrificing performance. Automatic hot-swap capability, ARB functionality, and N+1 failover architecture ensure continuous operation during drive failures or maintenance windows. iSCSI support enables integration with external storage systems for hybrid deployment models.
Display and Interface
Dual HDMI outputs allow independent 4K and 1080p monitoring simultaneously. Dynamic layout and virtual channel viewing provide flexible presentation options, while clone mode supports up to 64 divisions for comprehensive multi-site visibility.
Applications
- Critical infrastructure and government facilities requiring 32MP resolution and extended storage
- Transportation hubs, airports, and border security with high-bandwidth camera networks
- Large-scale retail and industrial complexes with 64+ camera deployments
- Multi-site operations requiring redundant recording and failover capabilities
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XRN-6420DB4 represents a premium solution for enterprise deployments where storage capacity and processing power are non-negotiable. The 12th-gen Intel processor backbone ensures stable performance under sustained 64-channel loads, while H.265 codec support with WiseStream optimization helps offset the storage demands of 32MP cameras. RAID 6 capability and N+1 failover architecture are essential for facilities where recording interruption carries regulatory or operational risk.
The 96TB baseline configuration is practical for organizations requiring 7–14 day retention at full resolution; expansion to 160TB supports longer archival windows. Two-way audio and PoE compatibility enhance integration with modern IP camera ecosystems. This NVR is best suited for buyers with established IT infrastructure, as configuration and management require professional-level expertise.
