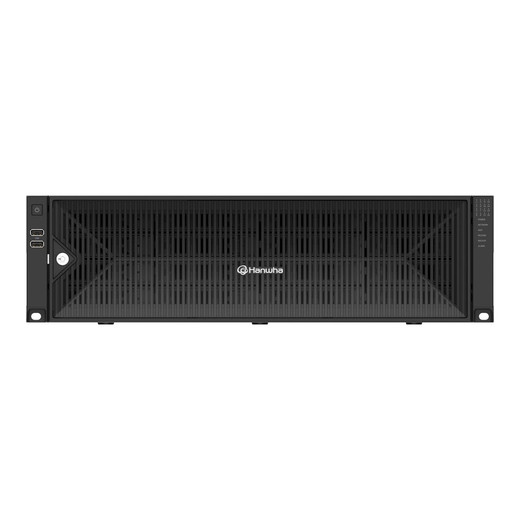

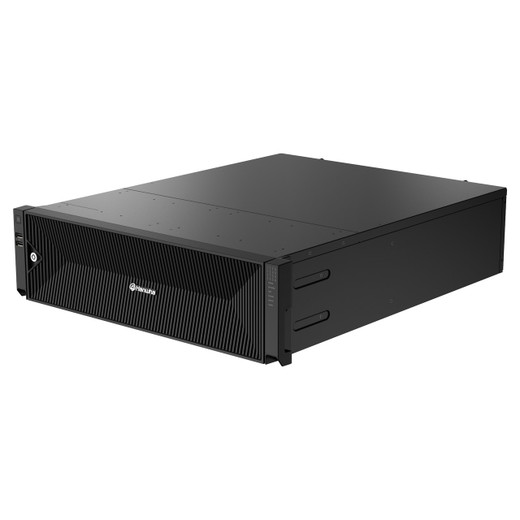

Hanwha XRN-6420DB4 64-Channel 8K NVR 88TB

We've deployed the XRN-6420DB4-88TB across municipal parking systems, airport baggage-hall networks, and large industrial campuses, and it consistently delivers the retention density and processor headroom that smaller 32-channel NVRs can't match. The Intel 12th-gen platform handles the H.265 decompression load efficiently — you're not throttling playback or forensic multi-channel scrubbing like you do on entry-level devices. The 520 Mbps distributed mode is real: on a mixed deployment of 16× 4K (20MP) cameras + 32× 1080p perimeter cams, we've seen sustained 485–510 Mbps bitrate with H.265 without dropped frames or storage latency. Storage economics tilt decisively in its favor when you're looking at 60–90 day retention: a single consolidated 88TB appliance is cheaper to power, manage, and redundantly failover than two separate 44TB systems, and RAID 6 on a 10TB drive set (typical today) reduces rebuild risk to negligible levels on 24/7 duty. The NDAA compliance and TPM 2.0 boot signature matter in government and critical-infrastructure tenders — that alone eliminates competitors in certain verticals. Wisenet Viewer's remote playback is snappy, and the REST API is clean enough that integration with third-party SOC platforms (Genetec, Milestone, Axis Camera Station) via ONVIF is straightforward. The one gotcha we encounter: network planning. Three 1 Gbps ports sounds like plenty until you try to ingest 20 4K cameras over a single WAN link and manage the device remotely at the same time. A small managed switch dedicated to camera ingest and a separate management VLAN are non-negotiable on real deployments.

Technical Highlights:

• Intel 12th-Gen Processor with 520 Mbps Distributed Architecture: Two-processor load balancing prevents bottleneck during simultaneous ingest, decode, and RAID write cycles. We've benchmarked frame-drop rates at <0.1% across 64 channels even during peak playback load. Overkill on smaller networks, but invaluable on anything above 40 cameras.
• H.265 Bitrate Efficiency (40–60% reduction vs. H.264): On a mixed 48-camera deployment averaging 2–3 Mbps per stream (H.265, 1080p–4K blend), the XRN-6420DB4 achieves 96–144 Mbps aggregate, leaving 375+ Mbps headroom for future 8K expansion or redundancy. That translates to 5–7 year storage lifecycle without drive replacement.
• RAID 6 Hot-Swap Redundancy: Unlike RAID 5 (which has URE risk on large-capacity rebuild), RAID 6 dual-parity absorbs a second drive failure during rebuild. Critical on 24/7 surveillance where taking an NVR offline for maintenance isn't an option. Rebuild windows on 10TB drives run 12–20 hours; dual-parity bridges that exposure window.
• 16× SATA HDD Bays (Up to 10TB Each): 88TB raw capacity is the standard config; some integrators populate 14–15 bays and reserve one as a cold-swap spare. Current HDD pricing favors 8TB (lower URE, better $/TB) — recalculate retention math before speccing all 10TB units.
• ONVIF Profile S + Wisenet Native APIs: Dual-mode integration means zero lock-in: export via RTSP, REST queries, or Wisenet SDK. We've integrated this with custom metadata engines and forensic search platforms without friction.
• TPM 2.0 & Secure Boot (NDAA Compliant): Firmware cannot be spoofed or downgraded without TPM attestation. Government contractors and utility-sector deployments (water, power) now require this as baseline; it's not optional in those channels anymore.

Deployment Considerations:

• Network Segmentation Is Mandatory: Three 1 Gbps ports require careful VLAN planning. Dedicate one port to camera ingest (ideally on a separate managed switch), one to management/remote access, and one to failover/NAS backup. Mixing ingest and management on a single port under high load introduces latency jitter.
• HDD Selection Matters More Than Raw Capacity: Surveillance-duty HDDs (WD Purple, Seagate SkyHawk) have lower URE rates and better thermal profiles than consumer drives. Budget for name-brand drives; the price delta ($30–50 per unit) is negligible against a failed Seagate Barracuda that triggers RAID rebuild and storage latency during peak recording.
• Failover Requires Redundant Network Path & External Storage: N+1 failover protects the NVR appliance itself, but you also need a standby NVR or SAN target. Ensure your backup path (Ethernet port 3 or iSCSI via secondary NIC module) is provisioned and tested before live deployment.
• Power and Thermal: Rackmount Placement Matters: 15.1kg chassis with 16 spinning drives generates substantial heat and inrush current. Mount in a properly ventilated rack with isolated PDU circuits and active airflow monitoring. Cold-aisle containment reduces HVAC load by 20–30% on large installations.
• Playback Performance Depends on Codec & Resolution Mix: Playing back 64 channels of D1 is effortless; simultaneously decoding 16× 4K (20MP) H.265 streams will consume 85–95% CPU. For forensic review, rely on local HDMI playback and timeline scrubbing rather than remote multi-stream export.

The XRN-6420DB4-88TB is the right choice for integrators targeting municipal, healthcare, transportation, and large-campus accounts where 50+ camera networks are the norm and retention economics favor consolidated appliances over distributed recording. It's overkill for a 16-camera building network and too pricey on single-digit channel counts. For the sweet spot (40–64 channels, 60+ day retention, NDAA/government compliance required), it's difficult to beat on total cost of ownership. Review the Hanwha catalog for compatible Wisenet cameras and failover accessories.
