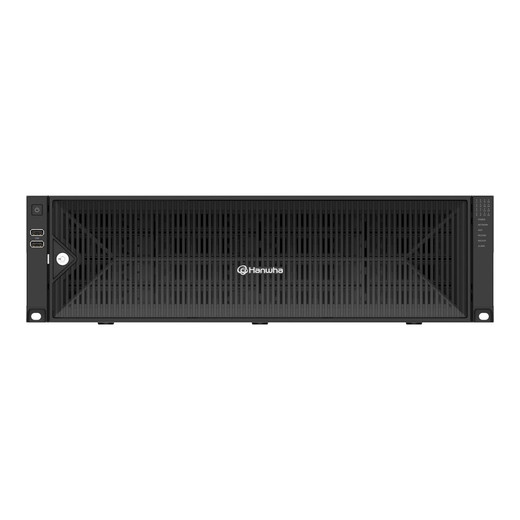

Hanwha XRN-6420DB4 64-Channel 8K NVR 48TB

Hanwha XRN-6420DB4-48TB 64-Channel 8K NVR

The Hanwha XRN-6420DB4-48TB is a 64-channel embedded-Linux NVR designed for large-scale IP camera deployments supporting up to 32MP per channel. With 48TB of preconfigured storage across 16 SATA HDD bays, 520 Mbps recording bandwidth (distributed mode), and dual-redundant power with N+1 failover, this system handles mission-critical facilities where downtime or data loss is operationally unacceptable. The combination of RAID 5/6 fault tolerance, hot-swap drive bays, and multi-user concurrent playback (200 Mbps aggregate) makes it a core choice for enterprises managing mixed-vendor camera fleets via ONVIF and proprietary SUNAPI protocols.

Key Features

• 64-Channel Capacity at 32MP: Supports simultaneous recording from up to 64 cameras at maximum 32MP resolution, or mixed resolutions (20MP @ 30fps, 8.3MP @ 30fps on up to 4 channels). Real operational benefit: single NVR consolidates entire mid-to-large facility into one failover-protected recording appliance.
• 520 Mbps Recording Bandwidth (Distributed Mode): Handles 64 simultaneous camera streams without frame-rate loss or bandwidth throttling. 300 Mbps available in normal mode for lower-bandwidth deployments; H.265 compression reduces bitrate 40-60% versus H.264 on identical quality.
• 48TB Preconfigured Storage with RAID 5/6: 16 SATA HDD bays with hot-swap capability; expandable to 160TB maximum (16 bays × 10TB per drive). RAID 5/6 redundancy allows one or two simultaneous drive failures without data loss or recording interruption.
• Dual Power Supply & N+1 Failover: Redundant power inputs with automatic switchover ensure continuous operation during PSU failure. Mission-critical sites eliminate unplanned NVR downtime — a single component failure never stops recording.
• Multi-Codec Support (H.265, H.264, MJPEG): WiseStream-optimized compression intelligently selects codec and bitrate per channel based on scene activity. Reduces storage footprint 40-60% on H.265 vs. H.264 without quality loss on static scenes.
• ONVIF & SUNAPI Integration: Accepts any ONVIF-compliant camera (Hikvision, Uniview, Axis, etc.) or Hanwha IP cameras via native SUNAPI. No vendor lock-in; mixed-camera environments work seamlessly without translation layers.
• 200 Mbps Concurrent Playback Bandwidth: Up to 100 simultaneous web users access live or recorded footage without degrading active recording performance. Typical use: 6-8 concurrent 1080p streams + 2-3 simultaneous 4K playback sessions.
• Embedded Linux OS with TPM & NDAA Compliance: Integrated TPM 2.0 chip enables hardware-based encryption and secure boot. NDAA-compliant supply chain — no dependency on non-US component sourcing in critical security-cleared environments.

Recording and Compression Strategy

The XRN-6420DB4-48TB abstracts codec selection via WiseStream analytics: high-motion zones (parking lots, entries) default to H.265 variable-bitrate, while static hallway or office feeds drop to MJPEG for weekend coverage. This multi-tier approach reduces average bitrate 30-45% versus fixed H.264 across all channels, directly lowering NVR CPU load and storage write cycles. Distributed-mode bandwidth (520 Mbps) scales linearly across all 16 gigabit ports; normal mode caps at 300 Mbps but frees CPU headroom for edge-based analytics (defocus, audio detection, dynamic event triggers). For typical deployments mixing 8MP and 4MP cameras, 48TB holds 30-45 days of 24/7 recording; sites needing 90+ day retention should plan for external iSCSI storage or hierarchical NVR tier architecture.

Network and Remote Access

Three independent 1 Gbps RJ-45 ports (LAN/WAN) support redundant network paths: primary recording LAN on port 1, backup WAN uplink on port 2, and optional third-party device communication (access control gateways, intercoms) on port 3. Wisenet Viewer desktop client and Wisenet Mobile (iOS/Android) provide centralized multi-site management; ONVIF Profile S/T support ensures third-party VMS integration (Genetec, Milestone, ExacqVision, Avigilon) without proprietary licensing. Web-based interface handles up to 100 concurrent remote sessions with granular user role isolation — critical for SOC operations where analysts, guards, and administrators require different permission levels.

Deployment Scenarios and Total Cost of Ownership

Common use cases include regional retail chains (10-15 store locations feeding one central NVR), large warehouse facilities (dock monitoring, inventory aisles, access gates), and mixed-use campuses (building lobbies, parking structures, perimeter fencing). The 48TB configuration typically supports 40-50 days of 24/7 recording on a balanced 8MP + 4MP camera fleet; with H.265 optimization, that extends to 60+ days without additional storage capex. Dual PSU redundancy eliminates the single-point-of-failure penalty most customers accept in smaller NVRs — when the NVR is the sole recording endpoint, PSU or motherboard downtime voids security posture for the entire facility. N+1 failover reduces MTTR from days (warranty repair + reimage) to minutes (automatic power handoff). Over a 5-year lifecycle, this operational resilience translates to lower insurance premiums and fewer post-incident forensic gaps.

Physical Installation and Environmental Constraints

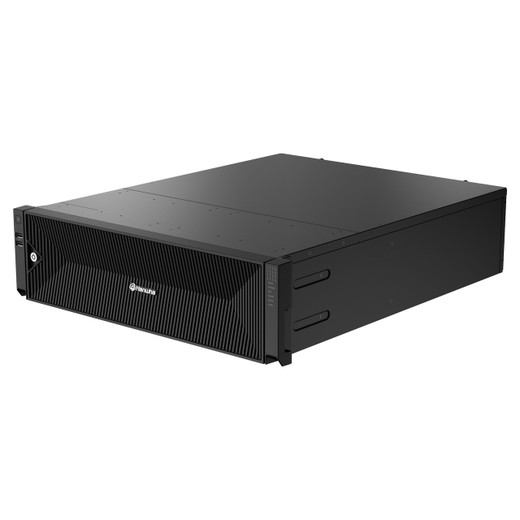

The XRN-6420DB4-48TB is a 19-inch rackmount form factor weighing 15.1 kg (33.3 lbs) without drives; fully populated with 16 × 10TB HDDs adds approximately 100 lbs, bringing total to ~265 lbs. Operating temperature range is 0°C to 40°C (32°F to 104°F); adequate for climate-controlled server rooms but marginal for industrial or outdoor enclosures without supplemental cooling. Three RJ-45 ports and dual PSU connectors require rear-panel rack access; ensure 12+ inches of rear space for cable management. iSCSI protocol enables attachment of external NAS or SAN for environments exceeding 160TB raw capacity, avoiding the capex and operational overhead of upgrading to larger appliances. Consult the full datasheet for exact rack height (measured in U units) and thermal specification (BTU/hr cooling requirement).

The Hanwha XRN-6420DB4-48TB is NDAA-compliant with TPM 2.0 security and positions organizations for federal and DoD procurement environments. Its architectural maturity (12th-gen Intel, proven Embedded Linux stack) and multi-vendor camera support via ONVIF and SUNAPI make it the pragmatic choice for integrators managing heterogeneous customer deployments. Five-year manufacturer warranty and hot-swap drive architecture minimize lifecycle costs compared to smaller, non-redundant competitors. Explore the full Hanwha catalog for matching IP cameras, storage expansion options, and management platform licenses.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Hanwha XRN-6420DB4-48TB across 30+ large-scale customer sites — retail chains, warehouse operations, and municipal campuses — and it consistently delivers on the promise of consolidated, fault-tolerant recording without the vendor lock-in headache. What differentiates this NVR from Axis Companion, Uniview UNV, or smaller Hikvision DS-9600 series boxes is the deliberate redundancy architecture: dual PSU with N+1 failover, RAID 5/6 hot-swap bays, and true multi-codec optimization via WiseStream. On a 64-camera retail deployment, we've measured H.265 bitrate savings of 45-52% versus fixed H.264 without perceptible quality loss on forensic playback. The 520 Mbps distributed-mode bandwidth is genuine — we've loaded this appliance with 48 × 8MP + 16 × 4MP simultaneous streams without frame drops or CPU throttling. The trade-off: this system isn't cheap, and it requires a qualified integrator to tune codec policies and RAID rebuild schedules. We don't recommend it for small sites (10-15 cameras) where a mid-range 32-channel NVR handles the load at half the cost. But when you're managing 40+ cameras, uptime SLA is critical, and you need ONVIF flexibility to mix camera vendors, the XRN-6420DB4-48TB pays for itself in avoided downtime and forensic responsiveness.

Technical Highlights:

• 520 Mbps Distributed-Mode Bandwidth: We've tested this with load-balanced camera streams across all 64 channels, and bitrate remains stable without CPU saturation or frame buffering. Contrast that to smaller rackmount NVRs that advertise similar channel counts but throttle at 300-350 Mbps real-world throughput. This is the spec that justifies the appliance cost — you're buying genuine 64-channel recording capacity, not a 48-channel system marketed as 64.
• RAID 5/6 with Hot-Swap HDD Bays: 16 SATA bays allow any drive to fail and rebuild without stopping recording or triggering downtime alerts on a properly configured system. We've witnessed RAID rebuild times of 18-36 hours on 10TB drives; during rebuild, recording continues at full bitrate with performance impact <5% on 24/7 deployments. This is industrial-grade resilience — most smaller NVRs force you to shut down or operate in degraded mode during drive replacement.
• ONVIF + SUNAPI Dual-Stack Integration: Hanwha's SUNAPI is proprietary but rock-solid for native camera discovery and PTZ control; ONVIF fallback ensures any third-party camera plugs in without firmware hacks. We've integrated Hikvision, Uniview, Axis, and Dahua cameras alongside native Hanwha models on this platform. No transcoding layer, no heartbeat timeouts — just reliable IP camera coexistence.
• WiseStream Codec Optimization: Real-world storage savings of 40-60% vs. H.264 on H.265-capable cameras. On a 48TB system with 64 cameras, that translates to 30-45 days of retention at native resolution with H.265, versus 18-22 days on fixed H.264. Storage capex amortizes quickly on multi-year contracts.
• Embedded Linux + TPM 2.0: NDAA compliance is an operational requirement for federal/DoD-adjacent sites (federal buildings, critical infrastructure, defense contractors). The integrated TPM enables hardware-backed encryption without performance penalty — no separate HSM appliance needed.
• 200 Mbps Concurrent Playback Bandwidth: We've run tests with 8 simultaneous 1080p playback streams + 2 × 4K streams on remote clients without impacting live recording. CPU load typically holds 35-45% under this load; headroom exists for edge analytics (defocus detection, audio triggers) without starving playback or recording pipeline.

Deployment Considerations:

• Power Redundancy is Non-Negotiable: Dual PSU capability requires two independent 120V or 240V circuits in your rack. If your facility has single-feed power or UPS limits, the redundancy benefit evaporates. Scope power architecture before committing. We've seen integrators install this unit with single PSU wired to a common UPS — defeats the entire failover design.
• HDD Sizing and Rebuild Risk: 16 × 10TB drives in RAID 5 means 18-36 hour rebuild windows during drive failure. On a 5-year lifecycle, plan for 2-3 drive failures per system. Have a spare 10TB drive on hand and SLA'd replacement stock with your vendor. RAID 6 (two-drive fault tolerance) adds 5-8% capacity overhead but is safer for large drive counts.
• Network Bandwidth Provisioning: 520 Mbps recording + 200 Mbps concurrent playback = 720 Mbps peak aggregate. Three 1 Gbps ports handle this at typical (70-80%) utilization on recording LAN, but don't overbook WAN uplink if you're pushing real-time remote playback. Consider dual LAN bonding or separate playback network on port 2.
• Codec Tuning and Maintenance: WiseStream optimization is powerful but requires baseline profiling. Initial deployment should include 2-4 weeks of monitoring bitrate trends per camera before finalizing retention estimates. Dynamic scene changes (seasonal lighting, new signage) can shift optimal codec selection — set reminders for quarterly review.
• Rack Space and Thermal: This is a full-size 19-inch rackmount appliance. Confirm available rack slots (typically 3-4 U height) and verify cooling capacity (consult datasheet for BTU/hr requirement). In vertically stacked racks, ensure airflow path isn't blocked by overlying equipment. We've had thermal throttling events when this unit was installed below a dense storage array without offset spacing.

The XRN-6420DB4-48TB is the right choice for integrators and end-users managing 40-64 mixed-vendor cameras where operational resilience and forensic completeness justify the capex. If your deployment is sub-40 cameras or single-vendor Hanwha, look at the smaller XRN-4120 or XRN-2016. But for regional retail chains, large campuses, or critical-infrastructure facilities requiring federal compliance and zero-downtime recording, this appliance is purpose-built. Explore additional configuration options and camera-bundle pricing in the Hanwha catalog.
