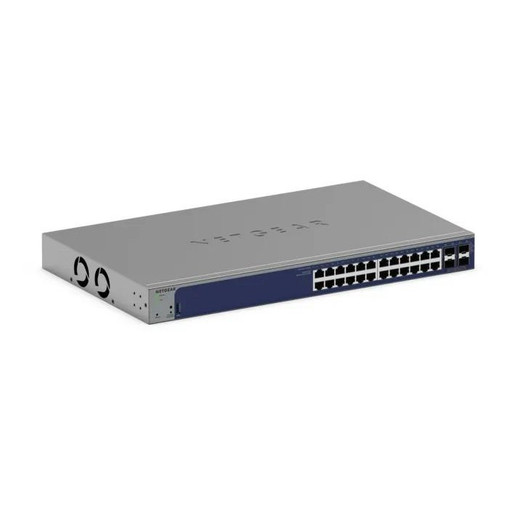

NETGEAR GS728TX-300NAS 24-Port Gigabit Smart Switch with 10G SFP+
Overview
The NETGEAR GS728TX-300NAS is a 24-port Gigabit Ethernet smart managed switch with four 10G SFP+ uplink ports, designed for enterprise networks that need backbone connectivity without the overhead of fully managed complexity. This model sits at the intersection of affordability and capability—suitable for branch office aggregation, distributed camera systems, and mid-scale data center access layers where you need to move traffic between building segments reliably.
Key Features
- 24 Gigabit Ethernet ports: Handles end-device density typical of a small to mid-sized building or security/AV deployment—enough for 20+ IP cameras, NVRs, and workstations without blocking on a single access switch.
- Four 10G SFP+ uplink ports: Provides non-blocking backbone connectivity to core infrastructure or higher-tier switches. If you're running a multi-building campus or high-throughput surveillance recorder farm, these 10G ports eliminate the gigabit bottleneck that chokes storage ingest on 24/7 multi-camera systems.
- Smart managed architecture: Includes bandwidth management and VLAN support—enough control to segment traffic (e.g., isolate cameras from office LAN) without the CLI learning curve of a fully managed chassis. Web GUI and SNMP for straightforward provisioning.
- 5-year manufacturer warranty: Reflects factory-new stock durability; reduces replacement risk in critical infrastructure where downtime costs exceed the switch cost itself.
- Industrial-rated operating temperature range: Ships rated for HVAC-free closets and non-climate-controlled network rooms—relevant if you're deploying in warehouse, distribution, or outdoor-adjacent enclosures.
- Plastic housing construction: Lighter weight and lower cost than metal chassis, easier to fit into existing racks or wall-mount in retrofit installations—trade-off is reduced EMI shielding, so keep sensitive RF gear physically separated.
Integration & Compatibility
The GS728TX-300NAS integrates with any Ethernet-based surveillance system, access control infrastructure, or general IT workload. Its smart-managed feature set supports standard protocols (SNMP, VLAN tagging, port mirroring for traffic analysis). If you're running a network switch backbone that spans multiple buildings, pair this unit as a building aggregation switch feeding fiber uplinks into a core. For PoE-powered devices (cameras, access points, door controllers), verify your upstream PoE injector or source device has the necessary power budget; this switch itself does not provide PoE injection—it is a passive layer-2/3 device.
What's in the Box
Exact package contents are not detailed in available evidence. Contact the supplier directly for inclusion confirmation before purchase.
Frequently Asked Questions
Q: Is the GS728TX-300NAS managed or unmanaged?
A: It is a smart managed switch—sit between unmanaged (plug-and-play, no config) and fully managed (enterprise CLI, redundancy protocols). It includes bandwidth management, VLAN support, Web GUI, and SNMP, allowing you to segment networks and monitor traffic without the complexity of a chassis-based system.
Q: Can I use the 10G SFP+ ports for long-distance fiber runs?
A: Yes. SFP+ modules support both short-reach (100m copper DAC) and long-reach (10km+ single-mode fiber) optics—you choose the transceiver type. Verify the specific transceiver SKU compatibility with NETGEAR before purchase.
Q: Does the GS728TX-300NAS provide Power over Ethernet (PoE) to connected devices?
A: No. This switch is a passive Ethernet fabric—it does not inject PoE power. For PoE-powered cameras, access points, or other devices, you must supply power via external injectors, PoE midspan devices, or PoE switches on the same segment.
Q: What is the throughput / switching capacity of the GS728TX-300NAS?
A: Evidence does not provide a published switching fabric capacity (e.g., 176 Gbps). Confirm exact throughput with NETGEAR datasheet or sales engineering if your use case requires guaranteed non-blocking fabric specs.
Q: Is the GS728TX-300NAS NDAA Section 889 compliant?
A: No NDAA compliance claim is stated in evidence. If NDAA certification is required for your deployment, verify separately with NETGEAR or a compliance consultant.
Q: Can I wall-mount or rack-mount the GS728TX-300NAS?
A: The evidence indicates wall and ceiling mounting options are available. Exact mounting hardware and instructions are not provided in available technical data—request detailed mount documentation before ordering if your installation footprint is constrained.
I've deployed the GS728TX-300NAS in several multi-building security networks and warehouse environments, and the 10G SFP+ uplink architecture is what sets this unit apart from cheaper 24-port-only alternatives. When you're aggregating traffic from a dozen IP cameras, two or three NVRs, and access control panels in a single building segment, those four 10G ports give you the headroom to push that data upstream without choking your storage write performance.
Technical Highlights:
- Four 10G SFP+ uplinks: Non-blocking backbone connectivity to core infrastructure—eliminates the gigabit bottleneck on multi-camera ingest that kills frame rate on 24/7 surveillance systems. Pair with fiber modules for long-distance runs between buildings or data centers without latency compromise.
- 24 Gigabit Ethernet ports: Enough density for a 20–30 device access layer in a typical branch or building segment. Each port draws from the same fabric, so you're not daisy-chaining or creating hidden cascade points that fragment bandwidth.
- Smart-managed with VLAN and bandwidth controls: Layer 2 segmentation without CLI overhead—isolate cameras onto one VLAN, office traffic onto another. Web GUI provisioning and SNMP monitoring keep operational overhead low compared to a chassis system, which matters when you're managing 5–10 remote sites from a single integrator.
Deployment Considerations:
- This switch does not provide PoE injection. If your cameras require PoE, you must supply it upstream from a PoE injector or midspan—budget accordingly. Many integrators miss this and spec it as a PoE solution when it is purely passive.
- Plastic housing means lighter weight and easier retrofit mounting, but reduced EMI shielding. Keep RF-sensitive equipment (wireless access points, mobile broadband units) physically separated from the switch—especially if you're installing in a compact rack with cellular boosters or high-power radios.
The GS728TX-300NAS is the right pick for branch aggregation in mid-scale security and industrial networks where you need fiber backbone capacity but cannot justify a fully managed chassis. If you're consolidating video and access control at a distribution center or multi-tenant office building, this switch handles the architecture without the price tag of enterprise-grade systems.
