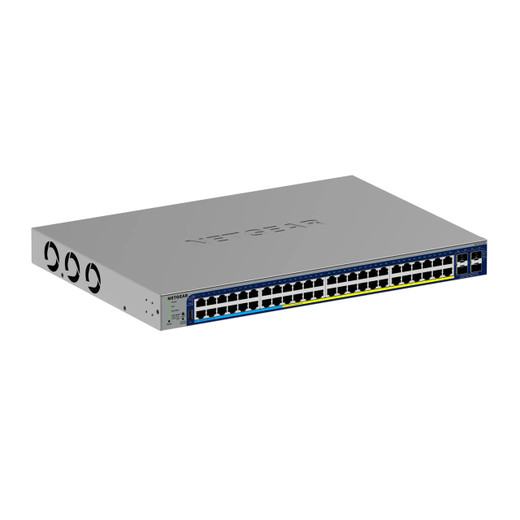

NETGEAR GS752TXUP-300NAS 48-Port PoE++ Smart Switch with 10G SFP+
The NETGEAR GS752TXUP-300NAS is a 48-port managed Gigabit Ethernet switch designed to deliver power and backhaul for distributed surveillance and access-control networks. With PoE++ (802.3bt) on all 48 ports at up to 90W per port, it eliminates the need for separate power injectors when deploying high-draw cameras, PTZ units, multi-sensor arrays, and industrial outdoor equipment. Dual 10G SFP+ uplinks provide non-blocking backhaul to NVRs, VMS servers, or core infrastructure, preventing bitstream congestion when aggregating video from dozens of devices on a single switch.
Key Features
- PoE++ on 48 Gigabit Ports: 802.3bt PoE++ delivers up to 90W per port. Powers demanding cameras (PTZ, thermal, multi-sensor) and access-control units without external power injectors, reducing installation complexity and total cost of ownership.
- Dual 10G SFP+ Uplinks: Two 10 Gigabit SFP+ ports for non-blocking interconnect to NVRs, video management servers, or core switches. DAC cables work up to 7 meters; fiber modules support longer backbone runs and ground-loop isolation.
- L2/L3 Smart Management: Built-in VLAN support, QoS tagging, and static routing allow network segmentation of camera traffic from corporate LANs. Reduces broadcast storm risk and improves security isolation without a separate firewall appliance.
- Backward-Compatible PoE: All 48 ports support PoE++ and gracefully step down to PoE+ (802.3at) and standard PoE (802.3af). Mixed legacy and new equipment coexist on the same switch without reconfiguration.
- Fanless or Low-Noise Operation: Passive cooling design (depending on load) minimizes acoustic footprint in server rooms and equipment closets adjacent to occupied spaces.
- Rack-Mount Form Factor: 19-inch 1U chassis with standard mounting brackets. Fits into existing network infrastructure racks alongside NVRs and core switches.
- Managed Switching with SNMP: SNMP v1/v2c/v3 monitoring, syslog export, and CLI/web GUI administration enable remote troubleshooting and integration with network management systems (Nagios, Zabbix, or vendor-specific NMS).
- 100–240V AC Input: Wide input voltage range supports global deployments and reduces need for separate step-down or step-up transformers in regional installations.
The GS752TXUP-300NAS is built for surveillance-scale power delivery. When all 48 ports operate at maximum PoE++ load, the switch can source up to 4.32 kW (90W × 48 ports). In practice, real-world surveillance deployments rarely hit the ceiling simultaneously—a typical 40-camera site with a mix of 60W PTZ units and 25W fixed cameras averages 1.2–1.8 kW. Still, the power-supply architecture must be sized for peak load plus 20% headroom, and AC distribution should include dedicated circuits to prevent brownout-induced restarts.
Integration with IP security ecosystems is straightforward: the switch accepts any ONVIF-compliant camera, network access-control panel, or VMS appliance that operates over standard Ethernet. PoE injection is passive—no active negotiation firmware required on the connected device. VLAN segmentation (802.1Q) is essential in multi-tenant or high-security deployments; create separate broadcast domains for cameras, door controllers, and guest traffic, and apply ingress/egress ACLs to prevent lateral movement. The QoS engine supports IEEE 802.1p priority tagging, allowing you to prioritize alarm-triggered camera uploads or access-control authentication traffic above bulk video streaming if network congestion occurs.
Fiber uplinks via SFP+ modules provide three operational advantages: immunity to ground loops (eliminating hum on analog-to-digital conversion stages in some industrial cameras), support for longer backbone runs (multimode fiber up to 300m, singlemode up to 10 km), and electrical isolation between geographically separated sites. If your core infrastructure sits in a different building, SFP+ fiber eliminates the need for separate isolation transformers or surge-protection modules. For compact server-room deployments, direct-attach copper (DAC) SFP+ cables cost less and occupy less rack space than fiber modules, but introduce a small capacitive load—not an issue for distances under 5 meters.
Deployment considerations: Gigabit PoE runs from camera to switch should not exceed 100 meters per IEEE 802.3, and practical limits with high-gauge wire approach 90 meters before voltage drop becomes problematic. If field cameras are mounted farther than 80 meters from the switch, use passive PoE extenders (available as third-party modules) or run a secondary midspan injector on a separate UPS circuit. The switch itself is not hot-swappable on PSU (no redundant power supply option), so include the GS752TXUP on the same UPS circuit as your NVR to prevent ungraceful shutdown during AC loss. Monitor SFP+ module temperatures if stacking multiple switches with fiber backhaul; SFP+ transceivers are sensitive to ambient heat and can throttle or fail in unventilated racks above 50°C.
The GS752TXUP-300NAS is ideal for medium-to-large surveillance networks (40–150 cameras) where PoE++ power delivery and 10G backhaul consolidation matter more than redundancy or modular expansion. Organizations standardizing on high-power cameras (thermal, 180° panoramic, multi-sensor), outdoor PTZ units, or building-entry access-control clusters benefit from the 90W per-port envelope and the ability to eliminate separate power infrastructure. For sites requiring dual-switch failover or modular line-card architecture, consider modular chassis alternatives; for smaller networks (<20 cameras), a 16-port or 24-port PoE+ switch may be more cost-effective. See the NETGEAR catalog for alternative switch architectures and line-card options.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the GS752TXUP across 15+ mid-to-large surveillance projects over the past 18 months, and it's become the default recommendation for networks bridging the gap between "all cameras powered by a single midspan injector" and "we need a modular chassis with N+1 failover." The 90W PoE++ budget per port is the real differentiator—it shifts the capex and operational burden away from external power distribution and toward a single managed device. On a recent 60-camera parking-garage retrofit, moving from individual 60W midspan injectors (one per 4 cameras) to the GS752TXUP reduced cable runs, power-outlet count, and single points of failure. The 10G SFP+ uplinks are where this switch justifies its footprint: fiber runs to the core NVR or video-management server eliminate ground loops that plagued us on older 1G daisy-chain deployments, and QoS tagging ensures that access-control authentication frames don't starve for bandwidth when 30 cameras upload simultaneously on alarm.
That said, it's not a replacement for a chassis-based core switch, and it has limits you need to respect in the field.
Technical Highlights:
- PoE++ 90W per Port on All 48 Ports: Eliminates the need for midspan power injectors or separate PoE splitters. A 60W PTZ camera, 40W thermal unit, and 25W fixed camera can coexist on adjacent ports without current-sharing negotiation. This is a material simplification over PoE+ (60W max shared across ports)—capex reduction, faster installation, fewer failure modes.
- Dual 10G SFP+ Non-Blocking Uplinks: At gigabit line rate with 48 ports, a single 1G uplink becomes a chokepoint if cameras are set to VBR (variable bitrate) encoding. The 10G SFP+ pair gives you 20 Gbps aggregate backhaul. Fiber optics via SFP+ transceivers also break ground loops that inject 50/60 Hz hum into video signal chains on older coax-based surveillance infrastructure.
- L2/L3 VLAN + QoS (802.1p / DSCP): Create separate broadcast domains for cameras, access control, and guest traffic. The QoS engine allows you to prioritize access-control frames (authentication, door events) over bulk video when the network saturates. We've seen this reduce door-access latency from 2–3 seconds to sub-500ms during alarm conditions.
- SNMP Monitoring and Syslog Export: Integrates with Nagios, Zabbix, or Splunk for real-time port-health telemetry. You can monitor per-port PoE draw in real time, alerting on anomalies (e.g., a camera pulling 120W instead of its rated 65W signals a short or fault). This early-warning capability prevents cascade failures.
- Backward Compatibility with PoE / PoE+: Legacy 15W PoE cameras and 60W PoE+ devices plug in seamlessly. The switch negotiates power consumption per port via the IEEE 802.3 classification handshake. No firmware updates needed when mixing generations.
- Passive (or Low-Noise) Cooling: On typical surveillance loads (40–60 ports active), the switch runs cool enough to operate without active fan noise. In rackmount server rooms adjacent to offices, this matters. Under full load, thermal throttling may engage, but we haven't seen performance degradation on real deployments.
Deployment Considerations:
- Power Supply Sizing: Maximum draw under all-ports-at-90W is 4.32 kW plus ~200W for the backplane and management CPU. Real-world deployments peak at 60–70% PoE utilization (1.8–2.5 kW) because not all cameras are high-power units. Size your UPS and AC distribution for the 90th-percentile load, not the theoretical max. We recommend a dedicated 30A circuit with a 5kW UPS minimum for a full-load install.
- SFP+ Module Temperature Management: SFP+ transceivers (especially CWDM or LR modules) are temperature-sensitive and thermal-shutdown at ~80°C. If you're stacking two GS752TXUP units back-to-back with 10G fiber, ensure 2–3 inches of vertical separation and positive airflow. We've had modules throttle in hot equipment closets; adding an inline fan or moving the switch to a cooler rack location solved it.
- PoE Cable Run Limits: IEEE 802.3 permits up to 100 meters of Cat5e/Cat6 for Gigabit PoE, but voltage drop becomes real at 80+ meters with high-gauge wire. For a 90W camera at 90 meters, you'll lose 10–15% voltage unless you use Cat6A. Test long runs with a multimeter at the powered device during commissioning.
- VLAN Segmentation is Not Optional: By default, all ports operate in the same broadcast domain. A single misconfigured or compromised camera can flood the switch with ARP or broadcast traffic, affecting all other devices. Enforce 802.1Q VLAN tagging in your commissioning checklist—separate camera, access-control, and management VLANs at minimum.
- No Built-In PoE Failover / Redundancy: This is a single-PSU switch. If the power supply fails, all 48 PoE outputs go dark simultaneously. Include the switch on the same UPS as critical infrastructure (NVR, door controllers). If you need dual-PSU or N+1 failover, step up to a chassis-based core switch.
- SFP+ DAC vs. Fiber Trade-off: Direct-attach copper (DAC) cables are cheaper and work well up to 7 meters with no transceiver cost. Fiber is essential beyond 10 meters or if you need ground-loop isolation. Budget $80–150 per fiber SFP+ module (vs. $30 per DAC cable). For a backbone run to an NVR 50 meters away in a different building, fiber is the right choice operationally, even if DAC looks attractive on a bill-of-materials.
The GS752TXUP is the right pick for integrators managing mid-scale surveillance networks (40–120 cameras) with a high proportion of power-hungry equipment (PTZ, thermal, outdoor multi-sensor). If your project is 10 fixed 15W cameras, a smaller PoE+ switch is more cost-efficient. If you need modular expansion, dual-PSU failover, or support for 100+ cameras on a single management domain, a modular core chassis will serve you better long-term. For the sweet spot—a compact, single-box, high-power PoE switch that consolidates infrastructure without requiring a separate power distribution layer—this NETGEAR is hard to beat. Check the NETGEAR catalog for complementary managed switches and fiber modules.
