Model:

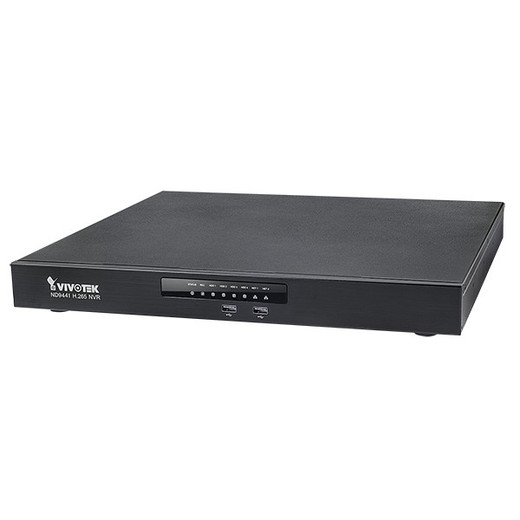

ND9441
OS:
Embedded Linux
Watchdog:
Hardware + Software
Power Restoration:
System Restart Automatically after Power Recovery
LiveView Display:
16 Channels; Multi-Layout Display: 1x1, 2x2, 3x3, 1P+3,2P+3,1M+5, 1P+6, 3V,1M+12, 4x4
Video Output:
HDMI x1, VGA x1
Display Resolution:
3840x2160, 1920x1080, 1280x720
Camera Position:
Change the viewcell position on the Live View screens
Stream Application:
Constant\Auto Adaptive Stream
Monitor Enhancement:
OSD display (NVR), OSD display (camera), camera information, remote I/O control, event notification, aspect ratio
Fisheye Dewarp:
1O, 1P, 1R, 1O3R, 1O8R
PTZ Operation:
Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control
Video Format:
H.265, H.264, MJPEG
Graphic Decoder:
Hardware decoding
Decoding Resolution:
Up to 4096x4096 (H.265); 8192x8192 (H.264)
Decoding Capability:
H.265/H.264: 3840x2160 @ 120 fps (4-CH); 1920x1080 @ 480 fps (16-CH)
Audio Format:
G.711, G.726
Audio In/Out:
3.5 Phone jack audio output x1; 3.5 Phone jack audio input (reserved) x1
Recording Time (sec:
Pre-Record: 5 (Max. 10); Post-Record: 20 (Max. 300)
Recording Stream:
Single
Recording Throughput:
192 Mbps
Recording Mode:
Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
Recording Setting:
Recycle (unit: Day)
Watermark:
Supported
HDD Devices:
Internal x4 (3.5"); *HDD is purchased by separately.
HDD Max. Capacity:
*Please refer to recommended HDD list on the VIVOTEK website.
RAID:
RAID 0, 1, 5 (single volume up to 16TB)
Disk Management:
Create, Format and Remove Disk; HDD S.M.A.R.T.
External Storage:
USB Storage (USB 3.0)
Video Clip Export:
USB Dongle (FAT Format)
Schedule Backup:
FTP
Playback Display:
4 Channels; Multi-Layout display: 1x1, 2x2, 1P+3, 1V+3
Playback Control:
Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
Video Search:
By calendar, date/time, and alarm
Thumbnail Explorer (Storyboard:
Listing the thumbnail of recorded video (Max. 2-CH)
Snapshot:
JPEG
Video Clip Export:
EXE
Ethernet:
10/100/1000Mbps Ethernet (RJ-45) x2
Video Throughput for Remote Client:
96 Mbps
Protocols:
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
USB:
Front: 2 (USB 2.0); Back: 1 (USB 3.0)
Alarm In:
8
Alarm Out:
4
Audio In/ Out:
3.5 Phone Jack Audio Output x1; 3.5 Phone Jack Audio Input (Reserved) x1
RS485:
1 Port (Reserved)
POS Integration:
Supported (by project request)
UPS Integration:
Supported (by project request)
Camera Integration:
ONVIF Profile S
Event:
Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, Network disconnected
Event Action:
Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO,VIVOCloud APP Notification
User Management:
User level: administrator, regular user
Log:
System, recording, user, error
Date & Time:
Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Language:
Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese
VCA Counting Solution:
Supported
VCA Event Search:
Supported
Smart Search II:
Supported
Trend Micro IoT Security:
Supported
Cybersecurity Management:
Supported
Software AP:
Shepherd, VAST 2
Mobile/Tablet App:
iViewer (Android & iOS)
Web Browser:
Internet Explorer 10 (32 bit) or above/ Windows; Chrome v68.0.3 & Firefox v61.02 or above/ Windows & macOS; (The new web interface is only supported by Chrome)
VIVOCloud:
Supported
Power Input:
DC 56V 1.34A
Power Consumption:
Max. 120 W
Dimensions:
430 (W) x 400 (D) x 44.5 (H) mm
Weight:
3.87 kg (without HDD)
Operating Temperature:
0°C ~ 40°C (32°F ~ 104°F)
Humidity:
0 ~ 95%
Safety Certifications:
CE, LVD, FCC, VCCI, C-Tick, UL
