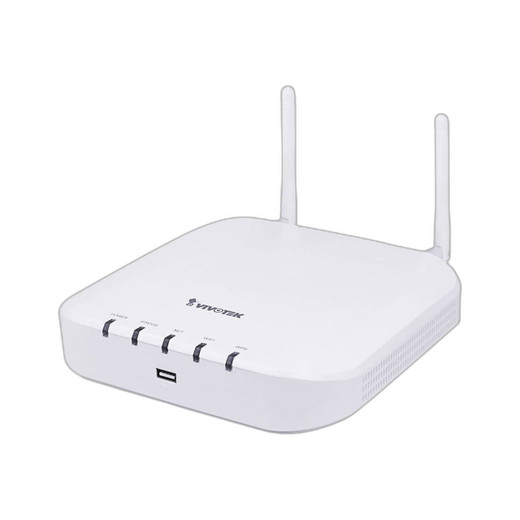

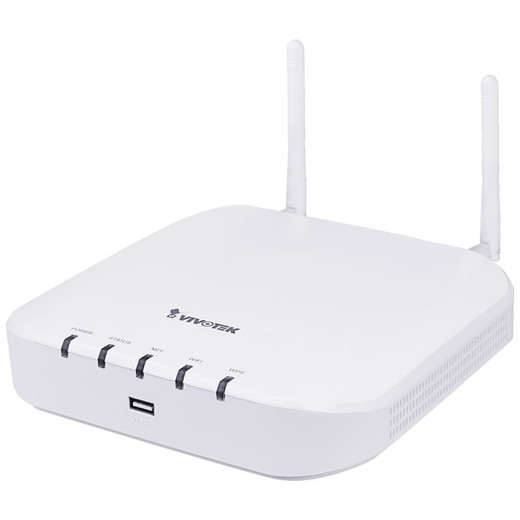

Model:
ND8212W
OS:
Embedded Linux
Watchdog:
Hardware + Software
Power Restoration:
System Restart Automatically after Power Recovery
HDD Devices:
Internal x1
HDD Max. Capacity:
6TB x1
Disk Management:
Create, Format and Remove Disk HDD S.M.A.R.T
Video Output:
HDMI x1
Resolution:
3840x2160, 1920x1080, 1280x720
Graphics Decoder:
Hardware decoding
Decoding Capacity:
H.264: 3840x2160 @ 30 fps (1CH) 1920x1080 @ 120 fps (4CH) 1280x720 @ 240 fps (8CH)
Camera Position:
Change the viewcell position on the Live View screens
USB Interface:
Front: 1 (USB 2.0) Back: 1 (USB 2.0)
Audio:
HDMI Audio Output
Network Interface:
10/100Mbps Ethernet (RJ-45) x 1
Wi-Fi:
2.4Ghz 802.11 b/g/n
Protocols:
IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/ RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter, WPS
Power Input:
DC 12V 3A
Power Consumption:
Max. 15.6 W
LED Indicator:
Power, Status, NET, Wi-Fi, WPS
Form Factor:
Desktop
Operation Buttons:
Reset/WPS (Back)
Dimensions:
198 (W) x 200 (D) x 47(H) mm
Weight:
560 g (without HDD)
Operating Temperature:
0°C ~ 40°C (32°F ~ 104°F)
Humidity:
0 ~ 95%
Safety Certifications:
CE, LVD, FCC, VCCI, C-Tick, MIC, NCC, BSMI
Warranty:
24 months
Operating System:
Microsoft Windows OS: XP/Vista/7/8/10/2008/2012
CPU:
Intel Celeron or above
Memory:
2 GB or above
Ethernet:
10/100Mbps
Display Resolution:
1024x768 pixels or above
Web Browser:
Internet Explorer 10 (32 bit) or above
Software AP:
Installation Wizard 2, Shepherd, VAST, VAST 2
Mobile/Tablet App:
VIVOCloud, iViewer (iOS) VIVOCloud, iViewer (Android)
Cloud Connection:
VIVOCloud Portal
Others:
Power adaptor, QIG, 8 x HDD screw, 2 x HDD Brackets,1 x USB Mouse, 2 x 2.4Ghz Wi-Fi Antenna
Maximum Channel:
Up to 8 (4CH Wi-Fi + 4CH Wired)
Record Throughput (MB:
24 Mbps, default settings: 1920X1080 @ 32 fps (4CH)
Network Throughput (MB:
40 Mbps
Audio Format:
G.711, G.726
Video Format:
MJPEG, H.264
Video Resolution:
UP to 8MP Camera
Recording Time (sec:
Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300)
Recording Stream:
Single
Recording Mode:
Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
Recording Setting:
Recycle (unit: day)
Recording Path:
Local Path
Record Video Format:
3GP
Watermark:
Supported
Schedule Backup:
Supported
Stream Application:
Constant/Auto Adaptive Stream
LiveView Display:
8 Channels (4CH Wi-Fi + 4CH Wired) Multiple Layout Display: 1x1, 3V, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6
Monitor Enhancement:
OSD Display (NVR), OSD Display (Camera), Camera Information, Remote I/O Control, Event Notification, Aspect Ratio, Fisheye Dewarp (1O, 1P, 1R, 1O3R, 1P3R, 1O8R)
PTZ Control:
Panel Control/Joystick
PTZ Operation:
Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control
Playback Display:
4 Channels Multiple Layout Display: 1x1, 2x2, 1P+3, 1V+3
Playback Control:
Regular (Play, Pause, Stop), Rewind, Next/ Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)
Video Search:
By Calendar, Date/Time, Alarm
Thumbnail Explorer (Storyboard:
Listing the thumbnail of recorded video (Max. 2 CH)
Monitor Enhancement:
OSD Display (Camera), Event Notification, Aspect Ratio, PiP Control, Fisheye Dewarp (1O, 1P, 1R, 1O3R, 1P3R, 1O8R)
Snapshot:
JPEG
Video Clip Export:
EXE
Stream Application:
Stream Selection
Audio Capability:
One Way
LiveView Display:
4 Channels Multi Layout Display: 1x1, 2x2, 1V+3
Monitor Enhancement:
OSD Display (NVR), Drag & Drop, Image Freeze, Audio Control, Remote I/O Control, Event Notification, Bookmark, Fisheye Dewarp (1O, 1P, 1R)
PTZ Control:
Panel Control
PTZ Operation:
Direction Control, Home, Zoom, Focus, Iris, Preset, Patrol (Group), PiP Control
Playback Display:
4 Channels Multiple Layout Display: 1x1, 2x2, 1V+3
Playback Control:
Regular (Play, Pause, Stop), Next Frame, Speed Control, Calendar, Timeline, Timeline Scale, Bookmark
Monitor Enhancement:
OSD Display (NVR), Drag & Drop, Audio Control, PiP Control, Fisheye Dewarp (1O, 1P, 1R)
Schedule Type:
Continuous, Schedule, Manual
Event:
Motion Detection, PIR Detection, Tampering Detection, Digital Input (Camera), Digital Output (Camera), Connection Abnormal, Storage Abnormal, Storage Full, Camera Network Loss
Action:
Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), Camera DO, VIVOCloud APP Notification
Manual:
USB Dongle (FAT Format), FTP Server Upload
User Management:
User Account: 16 User Account Time Limit: 10 mins User Level: Administrator/Regular User User Feature Definition: By Camera
Log:
System, Recording, User, Error
Date&Time:
Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Firmware:
Manual update
Restore Default:
Supported
Backup/Restore (Configuration:
Supported
Language:
Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese, Polish
Insert Camera:
Manual, Search
Video (Media) Setting:
Compression, Resolution, FPS, Video Quality
Image Setting:
Image Display, Image Adjustment
Motion Detection:
Supported
ONVIF Core SPEC:
Version 2.2 or above (By Project)
ONVIF Stream:
Video (H.264 & MJPEG)
ONVIF Recording:
Continuous, Schedule, Manual
ONVIF Discover:
Discover other brand camera through "Insert Camera & Batch Insert"
