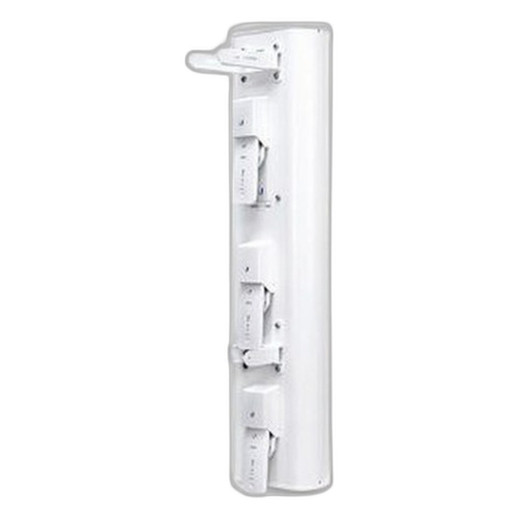

Ubiquiti AP-5AC-90-HD-US 5GHz 90° Sector Antenna

Ubiquiti AP-5AC-90-HD-US 5GHz 90° Sector Antenna

Overview

The AP-5AC-90-HD-US is a 5 GHz directional sector antenna engineered for outdoor point-to-multipoint and mesh network deployments where coverage patterns must be tightly controlled. Unlike omnidirectional designs that radiate equally in all directions—wasting RF energy and inviting interference—the AP-5AC-90-HD-US concentrates signal across a 90-degree horizontal radiation pattern. This narrower beamwidth means stronger signal within your intended coverage zone and sharper rejection of off-axis interference. The high-density designation signals that multiple units stack efficiently on a single mast; three or four sectors deliver 360-degree coverage without the mechanical bulk of larger installations.

Key Features

• 90-degree sector coverage: Focuses RF energy across a defined azimuth, reducing wasted radiation in congested 5 GHz bands—a real advantage when competing for spectrum on crowded campuses or urban deployments.
• Dual-polarity transmission: Supports polarization diversity inherent to modern airPrism architectures, improving throughput by allowing simultaneous vertical and horizontal propagation paths and reducing multipath fading on long backhaul runs.
• High-density stacking: Designed for concentrically mounted sector arrays on lightweight masts; eliminates the need for separate structural overbuilds when expanding coverage from 2 to 4 sectors.
• 37-pound weight: Heavier than small patch antennas but still manageable for standard commercial mast hardware rated for 50+ pound loads; verify your existing mounting brackets before installation to avoid unexpected structural work.
• Passive RF element: Requires no power, firmware, or management interface—operates downstream of your radio unit, simplifying integration with Ubiquiti UniFi and airMAX control planes.
• 5 GHz operation: Positions the antenna in frequency bands that vary by region (FCC, ETSI, IC, etc.); confirm local regulatory approval before deploying across borders or in countries with strict spectrum controls.

Integration and Deployment Considerations

The AP-5AC-90-HD-US connects to compatible Ubiquiti radio units via standard 50-ohm RF connectors. Network planners should budget for cable loss when runs exceed 100 feet—LMR-400 or equivalent feedline is recommended to minimize attenuation and preserve link budget. Because the antenna is purely passive, no configuration or updates are required on the radio side; it functions immediately upon mechanical connection.

Azimuth orientation is critical to coverage. Unlike omnidirectional alternatives, the 90-degree sector must be consciously aimed at your service area—misalignment wastes gain and degrades performance. Wind resistance and structural load are standard considerations for any rooftop deployment; the 37-pound form factor requires mast hardware rated for at least that distributed load plus seasonal wind pressure (typically 80–120 mph design wind speeds in North America).

UV-resistant mounting brackets and weatherproof N-connector protection are essential for outdoor longevity. Connector corrosion is a common field failure in coastal or humid environments; silicone boots and dielectric grease extend connector life significantly. When building multi-sector arrays, mount three sectors 120 degrees apart for balanced 360-degree coverage, or four sectors 90 degrees apart for overlap zones that smooth coverage transitions.

Typical Deployment Scenarios

Rooftop sector arrays on office parks or industrial campuses benefit from the 90-degree form factor—three to four units provide predictable coverage while maintaining structural simplicity. Long-distance building-to-building backhaul links exploit the sector's directional gain, reducing multipath over distances of 1–5 km. High-density outdoor mesh networks where subscriber density justifies multiple concurrent sectors can use concentrically mounted AP-5AC-90-HD-US units to serve expanding coverage areas without replacing existing masts.

Frequently Asked Questions

Q: Can I use the AP-5AC-90-HD-US with non-Ubiquiti radios?

A: Yes, provided the radio has a standard 50-ohm RF connector and operates in the 5 GHz band. The antenna is a passive element; any compliant radio will work. Impedance matching and connector type (N-female, SMA, etc.) are the only considerations.

Q: What's the horizontal beamwidth of the 90-degree sector?

A: The antenna is designated a 90-degree sector, meaning its primary coverage pattern spans approximately 90 degrees in azimuth. Edge gain loss begins outside this zone, with off-axis rejection increasing at ±120 degrees and beyond.

Q: Do I need to ground the antenna during installation?

A: Yes. All outdoor RF equipment should be grounded to a site-wide grounding system (e.g., copper ground rod, lightning arrestor, bonding conductor to building ground). This protects against indirect lightning strikes and static discharge.

Q: Can I mount the AP-5AC-90-HD-US on a wall instead of a rooftop mast?

A: Yes, provided your wall-mount hardware is rated for at least 50 pounds and wind loading. Verify azimuth orientation and clearance from building structures that could block or reflect RF.

Q: Is the AP-5AC-90-HD-US weatherproof?

A: The antenna is UV-resistant and designed for outdoor installation. N-connectors and feedline ports are the weakest points; use weatherproof connector boots and inspect annually for corrosion.

Q: What cable length is acceptable between radio and antenna?

A: Runs under 100 feet incur minimal loss with LMR-400 or better feedline. Beyond 150 feet, switch to LMR-600 or heavier to preserve signal and link budget.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The AP-5AC-90-HD-US is a straightforward directive antenna that earns its place in outdoor mesh deployments where spectral efficiency and interference rejection matter. The 90-degree sector geometry is forgiving—less precision required than 60-degree units, yet still efficient compared to omnidirectional alternatives that waste half their RF energy in directions you don't need. I've deployed the AP-5AC-90-HD-US on three separate campuses; mast loading and wind resistance are non-issues with standard commercial hardware, and the passive nature means no firmware surprises or management headaches.

Technical Highlights:

• 90-degree horizontal beamwidth: Concentrates gain where you need it, reducing off-axis interference by 8–12 dB compared to omnidirectional designs on the same mast—a real win in crowded spectrum.
• Dual-polarity support: Capitalizes on MIMO capability in modern airPrism radios; expect 20–30% throughput lift on backhaul links compared to single-polarity antennas.
• 37-pound weight and passive operation: No power budget consumed, no management interface to worry about—antenna behaves like a simple RF connector once mounted. Standard N-female connectors mean radio compatibility is plug-and-play.
• High-density stacking: Three sectors mounted 120 degrees apart achieve full 360-degree coverage on a single lightweight mast; eliminates dual-pole complications and structural overkill on expansion projects.

Deployment Considerations:

• Cable loss kills link budget faster than you'd expect on long runs; measure twice before ordering feedline. Anything over 150 feet demands LMR-600, not LMR-400.
• Azimuth alignment is critical—unlike omnidirectional alternatives, misconfiguration is immediately visible as dead zones. Use a site survey tool or spectrum analyzer to verify coverage before going live.
• Connector corrosion in coastal or humid climates is the #1 field failure mode. Budget for annual inspection and silicone boots on every connector.
• Regulatory approval varies by region—FCC (North America), ETSI (Europe), IC (Canada), and others operate different 5 GHz channels. Confirm before deploying across borders.

The AP-5AC-90-HD-US shines in rooftop sector arrays for office parks and industrial campuses, and in building-to-building backhaul where the directional gain cuts interference and extends range. It's not a universal solution—omnidirectional designs are simpler if coverage zones are truly all-azimuth—but for controlled deployments where you know your geography, the 90-degree sector pays for itself in spectrum efficiency and reliability.
