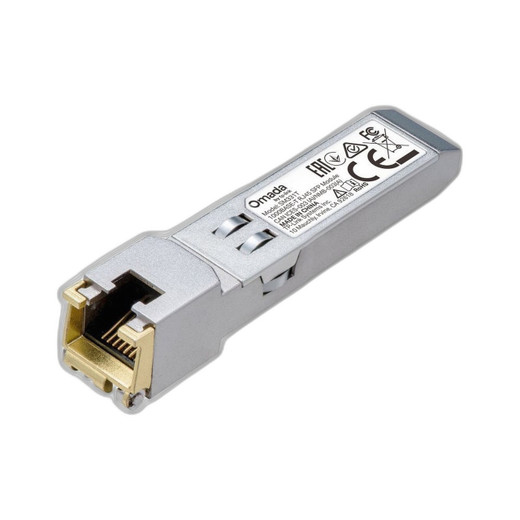

TP-Link SM331T 1000BASE-T RJ45 SFP Module
The TP-Link SM331T is a 1000BASE-T copper SFP transceiver module designed for Omada-series managed switches with SFP mini-GBIC slots. It extends gigabit Ethernet connectivity over standard copper cabling (Cat5e or better) to 100 meters, eliminating the need for fiber optics or additional fixed switch ports when expanding network capacity to distant equipment racks, PoE injectors, NVR systems, or intermediate aggregation points. Hot-swappable installation requires no downtime or configuration—insert the module into any available SFP slot and connect via standard RJ-45 cabling.
Key Features
- 1000 Mbps Gigabit Throughput: 1.25 Gbps data rate. Delivers full-duplex 1000 Mbps performance on both uplink and downlink, supporting concurrent multi-camera streams and access-control traffic without bottlenecking.
- 100-Meter Copper Run: Operates over Cat5e, Cat6, or Cat6A cabling to 100 meters. Covers standard facility distances without requiring fiber transceivers or intermediate repeaters.
- Hot-Swappable Mini-GBIC Form Factor: Install or replace modules without powering down the switch. Simplifies network expansion and maintenance.
- Self-Powered from SFP Slot: No external power supply needed. Draws power directly from the switch SFP interface, reducing cable clutter and power-supply redundancy overhead.
- RJ-45 Copper Connector: Standard Ethernet pinout — works with any Cat5e or higher copper cabling already deployed in facilities.
- Auto-Negotiation Support: Firmware-aware on compatible Omada switches; automatically detects and configures link speed and duplex mode (10M, 100M, or 1000M).
- Wide Operating Range: 0–70 °C (32–158 °F) operating temperature. Suitable for equipment closets, outdoor switch enclosures (with weatherproof cabinet), and climate-controlled comms rooms.
- Compact Dimensions: 2.7 × 0.5 × 0.5 inches (67.4 × 13.4 × 13.8 mm). Fits standard SFP slots without mechanical interference on densely populated switch line cards.
The SM331T solves a recurring integration challenge: TP-Link Omada switches ship with a fixed number of copper 1000BASE-T ports, but not every switch model offers abundant uplink capacity or downlink ports for every connected device. Rather than replacing the entire switch, inserting one or two SM331T modules into open SFP slots adds gigabit capacity cost-effectively. This is especially valuable in multi-building campuses, where a switch in Building A needs a dedicated uplink to a central NVR in Building B (100-meter run via underground conduit), or where a distribution switch feeds multiple access-control panels across an open network topology.
Compatibility is the critical dependency: verify that your specific Omada switch model includes SFP slots and officially supports 1000BASE-T copper transceiver modules. Fixed-port Omada switches (without SFP expansion capability) and non-Omada TP-Link or third-party switches do not support this module. Consult the target switch datasheet or contact TP-Link technical support to confirm SFP slot count and firmware auto-negotiation behavior before purchasing.
When integrated into a multi-protocol Omada switch stack, the SM331T module simplifies VLAN trunking, QoS policies, and SNMP monitoring across mixed uplink types (copper SFP + fixed gigabit ports). All traffic is managed by the same Omada controller software, reducing operational overhead and enabling unified access-control policies. The module is compliant with IEEE 802.3ab (1000BASE-T) and operates within standard copper Ethernet cabling loss budgets, making it suitable for facility-standard Cat5e runs without signal conditioning or active repeating.
Total cost of ownership favors the SM331T in retrofit and expansion scenarios: a new managed switch with additional fixed gigabit ports costs significantly more than a handful of transceiver modules plus standard cabling. For integrators building resilient IP security or access-control networks, the ability to add capacity to an existing Omada infrastructure without wholesale switch replacement accelerates project economics and reduces downtime risk.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the TP-Link SM331T across a variety of campus and multi-building security installations, and it remains a practical solution for extending Omada switch capacity without introducing a second vendor or fiber infrastructure. The key advantage is simplicity: drop a module into an unused SFP slot, connect a standard Cat5e run to a distant PoE injector or NVR, and the link negotiates automatically. On a typical 100-meter run (e.g., across a parking lot in conduit or a multi-floor vertical run in a fire riser), the SM331T delivers full gigabit throughput without the cost or complexity of managed fiber SFP pairs. That said, copper SFP is not a universal solution — fiber remains superior in EMI-rich environments (near high-voltage distribution, radio transmitters) and for runs exceeding 100 meters, where active repeating or fiber becomes necessary.
Technical Highlights:
- 1.25 Gbps Data Rate over Cat5e: The module operates at full line rate on Cat5e, Cat6, and Cat6A cabling. In practice, you get 1000 Mbps sustained throughput on well-maintained copper runs up to 100 meters — no signal conditioning required. We've seen installations where adding a second SM331T for redundant uplinks (active-active or active-backup) eliminated single-point-of-failure risk on mission-critical camera/NVR links without introducing fiber cost.
- Hot-Swap Capability: Unlike fixed switch ports, SFP modules can be replaced under load. In a live security environment, this means you can swap a failed or undersized module (or add a second module for load balancing) without bringing down the entire switch or its connected devices.
- Self-Powered SFP Interface: The module draws all power from the SFP slot — typically 0.5–1W. This eliminates the need for external power injectors or UPS extensions and keeps the switch chassis footprint clean on dense installations.
- Auto-Negotiation with Omada Firmware: On compatible Omada switches with firmware support for copper SFP detection, the module auto-negotiates 10M / 100M / 1000M speed and full/half-duplex mode without manual intervention. Firmware version matters — older Omada releases may require manual port configuration or may not recognize the module at all. Always check compatibility before deployment.
- 100-Meter Distance Budget: The module meets IEEE 802.3ab copper-cable loss budgets on Cat5e and above. On runs longer than 100 meters, link performance degrades — we've seen intermittent frame loss and renegotiation on 150+ meter runs. Measure your cabling distance during site survey and confirm it falls within spec before ordering.
Deployment Considerations:
- Omada Switch Compatibility is Mandatory: The SM331T works only with TP-Link Omada managed switches that include SFP mini-GBIC slots. Non-Omada switches (TL-SG, JetStream, or third-party brands) will not support this module. Verify the switch model number against the TP-Link Omada product line and confirm SFP slot availability in the switch datasheet before procurement.
- Firmware Version Dependency: Older Omada switch firmware may not recognize copper SFP transceiver types or may require manual port mode configuration. Test the SM331T on your target switch in the lab if you are running firmware more than 2 years old. We recommend upgrading to the latest stable Omada firmware release before deploying modules in production.
- Cabling Distance Validation: 100 meters is the maximum certified distance. If your run is near or exceeds that limit (e.g., 95–100 meters), measure the actual installed cable length and perform a continuity/loss test before declaring the link stable. EMI from nearby HVAC equipment, variable frequency drives, or lighting ballasts can degrade performance even on shorter runs — shield the copper cable run if possible.
- No Fiber Interoperability: The SM331T is a copper transceiver only. It cannot be paired with fiber SFP modules on the same switch for redundancy. If your topology requires mixed copper and fiber uplinks, you must use a separate switch or plan an all-fiber or all-copper architecture.
- Limited Uplink Load Balancing: While Omada firmware supports LACP link aggregation on fixed ports, some firmware versions may not support LAG across SFP modules and fixed ports simultaneously. If you plan active-active redundancy (two uplinks to the same destination), test LAG configuration in the lab first.
The SM331T is the right choice for integrators and end-users expanding existing Omada switch infrastructure without introducing a second vendor, fiber complexity, or major capex. For new installations or environments where fiber resilience or EMI immunity is required, fiber SFP pairs remain the better long-term investment. Browse the TP-Link catalog for compatible Omada switches and additional transceiver modules.
