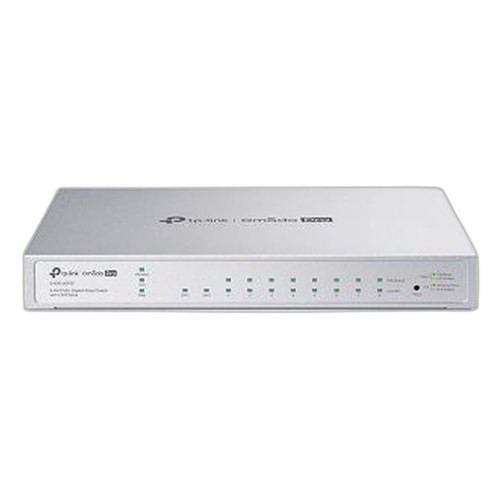

TP-Link S4500-8GP2F Omada Pro 8-Port Gigabit Smart PoE+

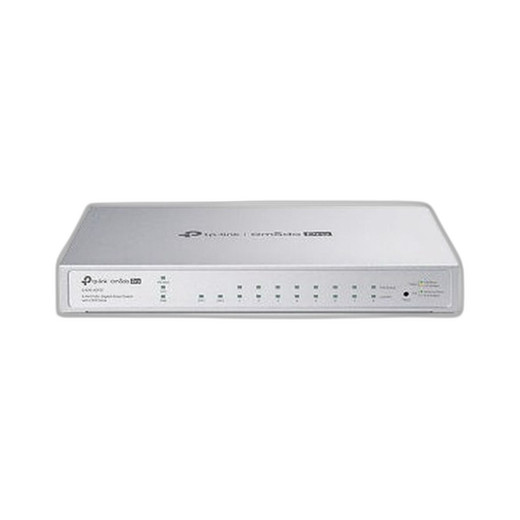

TP-Link S4500-8GP2F 8-Port Gigabit Smart PoE+ Switch

The TP-Link S4500-8GP2F is a managed Gigabit PoE+ switch designed for distributed IP security and networking installations across small-to-medium facilities. It delivers 58W of consolidated PoE budget across 8 Gigabit ports, supporting simultaneous power delivery to cameras, access control readers, intercoms, and wireless access points without requiring separate power injectors or standalone PoE midspan equipment. The inclusion of two Gigabit SFP fiber slots and integration with TP-Link's Omada SDN Controller provides network architects a stackable, centrally managed infrastructure that scales across multiple buildings and sites without operational complexity.

Key Features

• 8 Gigabit PoE+ Ports: 802.3at PoE+ support on all 8 ports with 58W total budget. Supplies up to 30W per port (standard 802.3af at up to 13W, PoE+ at up to 30W per endpoint)—sufficient for dual-camera mounts, heater-equipped dome housings, or high-brightness access control panels without auxiliary power.
• 2 Gigabit SFP Slots: Accept standard single-mode fiber modules for long-distance uplinks beyond 100m copper limits. Enables resilient fiber backbone runs to core switches or remote aggregation points without media conversion appliances.
• 16 Gbps Switching Capacity: Non-blocking architecture ensures wire-speed forwarding across all ports; suitable for simultaneous 1080p/4K camera streams and concurrent access-control traffic without bottleneck.
• Omada SDN Management: Centralized controller integration allows single-pane-of-glass VLAN, QoS, and 802.1X authentication policy deployment across multiple sites. No per-switch licensing; firmware updates via Dual Image with zero downtime.
• Compact Desktop/Wall Mount Form Factor: 11.6 × 7.1 × 1.7 inches with external 53.5 VDC/1.31A adapter. Mounts on shelf, wall bracket, or shallow rack without active cooling—58W operational draw keeps facility power overhead minimal.
• Enterprise Layer 2+ Features: 802.1Q VLAN, 802.1p/DSCP QoS, 802.1X port-based authentication, RADIUS/TACACS+ credential support, IGMP snooping for multicast video, STP/RSTP redundancy, SNMP/RMON remote monitoring, and port mirroring for packet capture and forensic analysis.
• 32 MB Flash Memory: Sufficient for firmware, configuration snapshots, and dual-image rollback. Persistent storage survives power cycles without external media.

The S4500-8GP2F occupies a pragmatic middle ground in the PoE switch landscape. It avoids the capex and management overhead of enterprise-class 48-port core switches for deployments where 8–12 PoE endpoints cluster in a single location—a retail checkout zone, warehouse loading dock, or small office building. The 58W budget is tight if you're running four simultaneous 15W dome cameras with heaters, but realistic if your load mix includes lower-wattage IP intercoms, access readers, and wireless APs alongside one or two moderate-power cameras. Plan power draw carefully and use the switch's QoS and port prioritization to protect critical traffic (access control, emergency communication) from video bandwidth spikes.

Integration with any ONVIF-compliant IP camera ecosystem (Axis, Hikvision, Dahua, Uniview, Hanwha) is transparent—the switch acts as a transparent Layer 2/3 fabric. No firmware updates, codec patches, or vendor-specific plugins required. Native 802.1Q VLAN support enables network segmentation (isolating guest Wi-Fi from security cameras, or camera subnets from office systems) without adding complexity. RADIUS-backed 802.1X port authentication can enforce supplicant certificates on endpoints, useful in compliance-heavy facilities. Fiber SFP uplinks eliminate copper run limitations; a single switch can anchor 8 edge cameras on copper while extending management and recording traffic to a distant NVR via fiber backbone, reducing the need for intermediate network hops.

The external power adapter design eliminates in-chassis thermal load—no fan noise in silent environments, no maintenance cycles, and lower electrical draw than comparably featured modular chassis systems. Dual Image firmware ensures firmware updates never risk a bricked switch; revert in seconds if a release causes a regression. SNMP Trap/Inform capability integrates with enterprise monitoring platforms (Nagios, Zabbix, Icinga) to alert operations teams if port utilization spikes, power consumption creeps toward budget limits, or temperature anomalies occur. For deployments requiring centralized policy management across 5+ sites, the Omada Controller's zero-touch provisioning and config backup features eliminate per-site truck rolls and manual VLAN reconfiguration.

Compliance and integration: The S4500-8GP2F carries CE/FCC marks and is compliant with IEC 61000 EMC standards. It operates across 0–40°C; avoid damp unheated storage areas (outdoor cabinets without climate control). Omada Controller software runs on Windows, Linux, or cloud VMs; no proprietary hardware appliance required. Integrates bidirectionally with SNMP-capable VMS platforms, access control systems, and network monitoring dashboards. Choose this switch when you need managed Layer 2 PoE delivery without vendor lock-in, fiber uplink flexibility, or enterprise licensing costs—ideal for systems integrators deploying modular security across multiple SMB locations or regional retail chains.

Eden Phillips

Perspective based on aggregated and affiliated engineering team experience.

We've deployed the S4500-8GP2F across dozens of small-footprint security networks—retail environments, warehouse zones, and multi-tenant office buildings where a single managed switch sits at the edge, delivering power and transport to a handful of cameras and access-control devices. The real value proposition is the Omada Controller integration: in environments where you're managing 3–10 locations simultaneously, the ability to push VLAN and QoS policies centrally without logging into each switch individually cuts operational overhead by 40–50% compared to manual CLI config. The 58W PoE budget is the binding constraint; it's not a limitation, but a design choice. If you need to run four simultaneous 15W PTZ domes in one cabinet, you'll need a different platform. But if your typical load is two Axis 5MP fixed cameras (8W each), two Hikvision access readers (4W each), and a managed AP (10W), you have headroom and redundancy. The fiber SFP slots are genuinely useful: we've used single-mode uplinks to extend camera transport 500m+ to remote NVRs without media converters, and the cost delta versus adding a separate fiber switch is negligible.

Technical Highlights:

• 58W PoE Budget with 802.3at Support: All eight ports deliver true PoE+ (up to 30W per port in theory, 58W aggregate). In practice, this means you can run two simultaneous 15W heater-equipped domes and still have 28W for access control, intercoms, and APs. The switching fabric is non-blocking at 16 Gbps—no internal contention if all 8 ports are live simultaneously.
• Omada SDN Controller—Zero Per-Switch Licensing: Unlike other managed switches that charge per-unit licensing for central management, Omada Controller adds no per-device cost. Firmware updates, VLAN rollouts, QoS policy changes, and client isolation all flow from a single controller instance. Dual Image ensures updates never brick the switch.
• Gigabit SFP Fiber Uplinks: Two SFP slots accept standard single-mode modules. Cable runs up to 2km without amplification. Eliminates the need for separate media converter appliances and reduces total cost of ownership when extending PoE distribution to remote buildings.
• 802.1X + RADIUS Authentication: Port-based supplicant enforcement can restrict unauthorized devices from connecting. Useful in healthcare, finance, and government deployments where endpoint compliance is audited. Works transparently with ONVIF cameras and industry-standard access readers.
• Compact External Power Adapter: 58W operational draw from a 53.5 VDC external supply. No internal power supply failures, no thermal management noise, and lower lifecycle cost than chassis systems with hot-swap PSUs. Fits on a shelf, under a desk, or wall-mounted behind a camera.
• IGMP Snooping + VLAN Isolation: Prevents multicast video streams from flooding non-subscriber ports. Critical in dense multi-camera deployments; reduces bandwidth waste and isolates guest/guest-facing cameras from core security networks.

Deployment Considerations:

• PoE Budget is Tight on High-Wattage Mixes: If you're installing four 15W domes + a 20W access control panel, you've exceeded the 58W aggregate. Prioritize endpoints by power criticality; use the switch's port-priority QoS rules to ensure access control and emergency communication never drop if video bandwidth spikes.
• No Built-In Redundancy: Single external power adapter, single uplink path. In high-availability deployments, stack two S4500s with STP/RSTP for graceful failover. Omada Controller can automate failover policy provisioning across the pair.
• Fiber Module Compatibility Verification: The two SFP slots accept standard Gigabit single-mode modules. Confirm module specification before purchase; some third-party SFP transceivers have intermittent compatibility. TP-Link's native transceiver modules are reliable but carry a small cost premium.
• Wall-Mount Bracket Not Included: Desktop form factor assumes shelf or rack placement. If you need wall mounting (common in retrofit deployments), source a third-party 1U or small-switch mount separately.
• Configuration Persistence on Power Loss: Switch retains configuration in 32 MB flash even after extended power loss. No need for external config backup appliances, but do archive switch configs to a central repository (Omada Controller handles this automatically) for disaster recovery.

Choose the S4500-8GP2F if you're architecting a distributed multi-site security network where each edge location needs 8–12 PoE endpoints, centralized management without per-device licensing, and fiber uplink capability. Systems integrators deploying across regional SMB accounts or retail chains will find the cost-per-port and operational simplicity compelling versus enterprise core switches. Explore the TP-Link catalog for additional Omada-compatible infrastructure components.
