TP-Link MC200CM Fiber Converter Multi-Mode 1000-1000

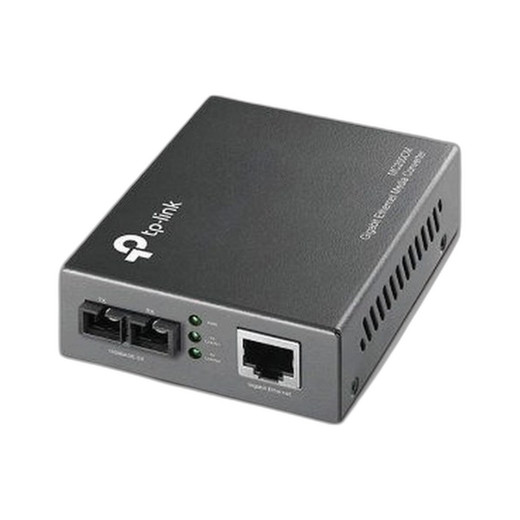

TP-Link MC200CM 1000Mbps Multi-Mode SC Fiber Media Converter

The TP-Link MC200CM is a fiber media converter designed for extending gigabit Ethernet connectivity across industrial campuses, large warehouses, and security surveillance networks where copper distance or electromagnetic interference creates signal loss. This compact, rackmountable unit bridges standard 1000BASE-T RJ45 (copper) to 1000Mbps multi-mode SC fiber optics, enabling full-duplex operation over distances up to 550 meters without active amplification or repeaters. The combination of ceramic SC connectors and switched 100–240VAC power supply makes the MC200CM a straightforward integration point in network backbones that must isolate video surveillance, access-control, or data systems from electrical noise on factory floors, parking structures, or outdoor perimeter paths.

Key Features

• Gigabit Full-Duplex Conversion: 1000Mbps RJ45 to multi-mode SC fiber. Full-duplex eliminates collision overhead — maintains line-rate throughput for continuous video streaming or real-time sensor data without bottlenecking.
• Multi-Mode SC Fiber (550m Span): OM2/OM3-grade multi-mode SC connectors. 550-meter reach covers single buildings, campus backbones, and perimeter loops without additional active equipment.
• Compact Rackmount Form Factor: 3.7 × 2.9 × 1.1 inches. Mounts directly in standard 19-inch racks or enclosures, conserving panel space in central equipment rooms.
• Auto-Sensing Power Input: 100–240VAC switching adapter or 5V/1A DC option. Works globally without voltage conversion; no UPS integration required (but recommended for mission-critical links).
• Industrial Temperature Range: 0°C–40°C operating window. Sufficient for climate-controlled network closets and indoor wiring vaults; not rated for outdoor unhoused installation.
• Passive SC Fiber Connectors: Keyed, polished connectors prevent cross-connection and accommodate standard SC patch panels. Works with any OM2/OM3 multi-mode cabling plant.
• Certifications: CE and FCC — meets basic EMI suppression and safety standards for North American and European deployments.
• No Configuration Required: Plug-and-play operation. No IP address, firmware updates, or management interface — transparent pass-through at line rate.

Deployment Scenarios & Network Architecture

Fiber conversion addresses three critical surveillance-network problems: distance, noise immunity, and ground-loop elimination. On a 200+ meter run from a central NVR to a remote parking-structure camera network, copper Gigabit Ethernet (1000BASE-T) suffers insertion loss and capacitive coupling of switching-supply noise from building HVAC or manufacturing equipment. Inserting a pair of MC200CM converters at the source and destination transparently extends the reach to 550 meters per fiber segment. Multi-mode fiber offers immunity to RF interference that would corrupt unshielded copper lines running alongside high-current power conduits or radio antennas. The unit operates at full 1000Mbps bidirectionally — supporting simultaneous video upload from edge recorders and downstream control commands (PTZ, relay activation) without latency.

Integration with PoE-powered cameras and NVRs is transparent: a PoE injector upstream of the RJ45 port continues to deliver power and data unchanged through the converter to the camera. The converter passes all Ethernet frames without inspection or buffering, so ONVIF streams, RTSP, H.264/H.265 video, and custom API traffic flow unmodified. This write-once-install-forever approach eliminates the management overhead of managed switches or intelligent media converters that require monitoring and firmware maintenance.

Total cost of ownership improves when the alternative is pulling new copper or installing active repeater racks every 100 meters. A single 550-meter multi-mode run with two converters costs less than three shorter copper runs and the associated labor, termination, and testing. For campus-wide video surveillance, fiber backbone resilience also matters: multi-mode SC plant is less prone to accidental disconnection than RJ45 patch cords, and fiber is immune to the ground loops that plague shared copper infrastructure.

Environmental & Installation Considerations

The MC200CM is rated for indoor use only: 0–40°C operating range and no environmental sealing mean it must reside in a climate-controlled network room, wiring closet, or equipment rack. Outdoor installations require an outdoor-rated enclosure with passive cooling. SC connectors are keyed and ceramic; forcing connections or cross-threading can crack the connector tip and render the link permanently inoperable. Fiber bends must exceed 15 cm radius to avoid microbending losses — important when routing through existing conduit or cabletrays alongside power and control bundles. Because the unit is passive with no status LEDs or diagnostics output, link verification requires a separate media converter link-test device or observing carrier on the far end (e.g., NVR detects camera online). No PoE power is injected by the converter itself; any PoE injection must occur upstream on the Ethernet segment.

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

We've deployed fiber converters like the MC200CM across dozens of campus surveillance networks, parking structures, and industrial facilities, and this unit remains a workhorse for distance extension because it offers rock-solid reliability without managed complexity. The key differentiator is simplicity: it doesn't need a web interface, SNMP trap monitoring, or firmware updates — you connect it, both devices come online, and the link stays up until someone physically disconnects a fiber connector or the power cord comes loose. In our experience, that transparency is exactly what integrators and facility managers want when extending a video network 300+ meters: no mystery black box, no troubleshooting ladder, and no middle-of-the-night alarm because a converter rebooted after a power blip. Multi-mode fiber at 550 meters is adequate for single buildings and most campus loops; if you're bridging multiple buildings more than 2 kilometers apart, you're already thinking about backbone redundancy, and that's where managed switches or dedicated fiber network gear make more sense. The real trade-off against single-mode fiber is distance — single-mode reaches 10+ kilometers with the same converter footprint, but requires single-mode cabling plant and connector discipline. For anything under 1 kilometer, multi-mode is faster to install, cheaper, and more forgiving of termination errors. We've also found that pairing the MC200CM with a UPS on the power input eliminates one more failure mode: a brownout in the facility doesn't drop the link for the seconds it takes to recover, which is critical when your remote recorder or edge device is recording into network storage 300 meters away over fiber.

Technical Highlights:

• Full-Duplex 1000Mbps Pass-Through: No buffering, no latency penalty. Real-time video and PTZ commands flow simultaneously without contention — essential for live monitoring and rapid incident response on remote perimeter segments.
• Multi-Mode SC (550m Maximum Span): OM2/OM3 fiber rated; 550 meters accommodates most campus backbones and industrial-site perimeter loops. Single-mode fiber extends beyond 10 kilometers, but requires different connectors and termination skill — choose based on your actual distance requirement and fiber plant already in place.
• Passive Transparent Conversion: No configuration, no IP management, no status interface. Reduces failure modes and eliminates the need for monitoring/alerting on converter health — you know the link is working because your NVR is receiving video.
• Plug-and-Play PoE Compatibility: Passes PoE frames unmodified on the Ethernet side. A PoE injector upstream continues to power PoE cameras on the far end, no special PoE over fiber needed or cost adder.
• Dual Power Input (100–240VAC or 5V DC): Works with global AC standards and with DC battery packs in remote cabinets. Budget for a UPS or backup power supply if uptime SLA is 99%+ over the surveillance segment.

Deployment Considerations:

• SC connectors are keyed but not foolproof — train installation staff to avoid over-torquing. A cracked ceramic ferrule is not field-repairable and requires full connector replacement.
• Fiber runs must not exceed 15 cm bend radius (sharper bends cause microbending loss and link degradation over time). Secure fiber conduit or tray to prevent stress on the run when cables are repositioned.
• No onboard status LED or diagnostics output — verify link by monitoring the far-end device (camera online in NVR) or use a separate media converter test device if troubleshooting offline installation.
• Indoor-only rating: 0–40°C operating range. Outdoor runs require a weatherproof enclosure with passive cooling and cable glands rated for your local climate.
• Pair the MC200CM with a UPS on the AC input if the fiber segment is carrying critical video to a remote recorder; a 10-second power loss during brownout will drop the link until power returns, causing gap in recording.
• Confirm your fiber patch panels, splice enclosures, and termination equipment support multi-mode SC before ordering — mixing single-mode/multi-mode by accident is an expensive install mistake.

The MC200CM is ideal for integrators and facility teams extending surveillance or access-control networks across industrial facilities, campuses, and large commercial properties where Ethernet distance or electrical noise makes copper impractical, and where passive, maintenance-free operation is a priority. For detailed specifications and ordering, see the TP-Link catalog.
