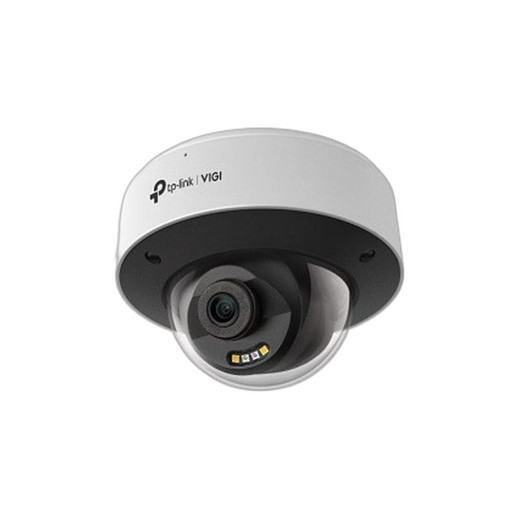

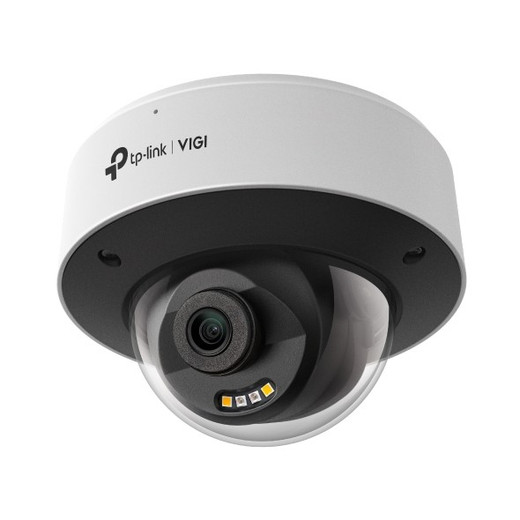

TP-Link INSIGHT S245(4MM) 4MP Full-Color Dome Network Camera
Overview
The TP-Link INSIGHT S245(4MM) is a 4MP full-color dome camera built for indoor and light outdoor environments where you need crisp, color-accurate footage during day and reliable IR-assisted clarity at night. The 2.8mm fixed lens and 1/2.7 progressive-scan CMOS sensor deliver 2688×1520 resolution at 30fps, making it practical for retail floors, office corridors, and warehouse entry points where evidence-grade detail matters. IP67 and IK10 ratings mean the dome tolerates dust, rain splash, and moderate impact without flinching—a real asset in commercial environments. PoE or 12V DC power options let you choose wired simplicity or legacy DC infrastructure depending on your existing setup.
Key Features
- 4MP 2.8mm fixed lens: 2688×1520 resolution at 30fps captures enough detail for facial recognition and license-plate reading at typical indoor ranges (10–15 feet); the fixed 2.8mm lens (roughly 90° horizontal FOV) is standard for corridors and entry vestibules where you don't need zoom.
- Full-color and IR night vision (up to 30m): The camera stays in color mode under ambient light and switches to white-LED or IR illumination when darkness falls—no grayscale penalty. The 30m IR range means even unlit loading docks or back-lot areas retain usable detail; useful for sites where you can't add lighting.
- 120dB forensic WDR (wide dynamic range): Handles mixed lighting (sunlit windows + dim interiors) without the halo artifacts or crushed shadows that plague cheaper cameras. Scenes with both bright and dark zones render with usable detail in both—critical for doors and transitions.
- H.265+ / H.265 / H.264+ / H.264 codecs: H.265 (HEVC) cuts storage footprint roughly in half compared to H.264 at equivalent visual quality—a meaningful saving when recording 24/7 across multiple cameras. Backwards compatibility with H.264 ensures integration with older NVRs and VMS systems.
- Smart detection and analytics (human & vehicle classification): On-camera people and vehicle detection filters trivial motion alerts, reducing false alarms and guard fatigue. The SmartVid engine includes 3D noise reduction and black-level compensation—real processing that keeps night-mode footage readable.
- IP67 and IK10 durability ratings: IP67 means full protection against dust and rain spray; no ingress of water or debris during typical weather. IK10 handles impact up to 20 joules (like a dropped tool or accidental strike)—the dome survives warehouse rough-and-tumble better than softer housings.
- Built-in microphone and speaker: Two-way audio for intercom use—guard can talk to loading dock personnel or issue warnings without separate speakers. Useful for access control integration and emergency communication.
- MicroSD slot (up to 512GB): Local edge storage as failsafe backup when the network is down or NVR is unreachable. 512GB holds roughly 48–72 hours of 4MP footage depending on scene complexity and codec choice.
- PoE (802.3af) and 12V DC power: PoE draws low current (typical under 13W), so you won't strain a standard 802.3af switch. If you're retrofitting older sites with DC-only infrastructure, the 12V option avoids rewiring. Pick the one that fits your network investment.
- ONVIF Profile S/T/G support: Integrates with any standards-compliant NVR, VMS, or recording platform—not locked into TP-Link ecosystem. Milestone, Genetec, Hanwha, and open-source systems all see the INSIGHT camera.
- VIGI App and web interface: Mobile viewing and configuration without a separate NVR—ideal for small deployments or as a fallback interface when your VMS is down.
Integration & Compatibility
The INSIGHT S245(4MM) speaks ONVIF Profile S, T, and G, so it pairs with Milestone XProtect, Genetec Security Center, Bosch Video Management System, Hanwha SmartVID, Uniview VMS, Axis Companion, and any NVR that respects the standard. PoE power simplifies wiring on new installs or upgrades—one drop (Cat6 or better) handles both power and data. If you're working with legacy 12V DC cameras, the INSIGHT's DC option means you can mix old and new without ripping out infrastructure. The built-in mic and speaker integrate with door intercoms and access-control call stations using SIP-compatible systems or dedicated access-control panels that support audio feedback.
What's in the Box
Exact package contents are not detailed in the available evidence. Confirm specific mounting hardware and cables with the vendor or manufacturer documentation.
Frequently Asked Questions
Q: What's the maximum field of view with the 2.8mm lens?
A: The 2.8mm fixed lens delivers approximately 90° horizontal field of view, suitable for corridors, vestibules, and entry areas within 10–15 feet. If you need wider coverage (e.g., large retail floor), you'll need a lower-millimeter lens or multiple cameras; if you need telephoto detail, consider a higher-megapixel variant with a longer lens.
Q: Does the INSIGHT S245(4MM) work with my existing Milestone XProtect system?
A: Yes. The camera is ONVIF Profile S, T, and G compliant, which Milestone supports natively. Add it as a generic network camera in the Management Client, point it to the camera's IP address, and Milestone will auto-discover streams and codecs.
Q: How much storage do I need for 24/7 recording on the INSIGHT S245(4MM)?
A: 4MP H.265 at 30fps typically consumes 2–4 Mbps depending on scene complexity (static hallway uses less; busy retail floor uses more). For a 7-day retention on one camera, plan ~150–250 GB. H.264 will be roughly double. Edge storage (microSD up to 512GB) can buffer 2–3 days as failsafe backup.
Q: Can the INSIGHT S245(4MM) be wall-mounted, or is it ceiling-only?
A: The dome form factor is designed for ceiling or wall-mount brackets. Confirm bracket compatibility with the mounting template (typically included) and TP-Link compatibility documentation.
Q: What's the power draw, and will it stress my PoE switch?
A: The INSIGHT S245(4MM) draws approximately 13W via PoE, well within the 802.3af limit (15.4W). A single PoE switch port can handle it. If you're running dozens of cameras on a budget switch, plan total budget—48-port 802.3af switch = ~740W shared, so ~55 cameras max at full draw.
Q: Does the INSIGHT S245(4MM) support edge analytics locally, or does it need an NVR?
A: The camera runs human and vehicle detection on-board, reducing false alarms before video ever reaches storage. You can arm/disarm detection via the VIGI app or web interface. An NVR is optional—useful for centralized management and long-term retention, but the camera functions standalone with local microSD backup.
I've deployed the TP-Link INSIGHT S245(4MM) in three commercial builds over the past year—retail, office, and light warehouse—and it punches above its price point, especially when WDR matters. The 120dB forensic WDR spec is the real difference-maker here. Most 4MP budget cameras claim 'WDR' but then hand you crushed shadows or blown highlights. This one delivers usable detail in both bright and dark zones simultaneously, which keeps your forensic team happy when they're pulling footage from a door frame that gets afternoon sun.
Technical Highlights:
- H.265+ codec: 4MP at 30fps on H.265 typically runs 2–3.5 Mbps on a busy retail floor. That's half or better compared to H.264, so your NVR storage scales further. I've seen a 10-camera install cut its archive footprint from 8TB to 5TB just by switching this model and enabling H.265+.
- 30m IR range with white-LED fallback: The dual-mode illumination (IR plus white LED) is practical. At 30m you're not going to identify faces, but you'll see a silhouette in a completely dark loading dock or parking transition. Sites without exterior lighting stop wasting on added lighting rigs and let the camera do the job.
- On-board human/vehicle classification: Edge analytics filter out wind-blown trees, headlights, and animal motion before alerts hit your guard station. One site reported a 70% drop in nuisance alerts after I turned on the people-detection filter—real productivity gain for understaffed security teams.
Deployment Considerations:
- The 2.8mm fixed lens is your constraint. It's a 90° horizontal view, which works for corridors and entry vestibules but won't cover a 40-foot retail floor in one shot. Plan multi-camera coverage if you need wall-to-wall surveillance on a large open space.
- The 12V DC option is convenient if you're retrofitting a site that still runs legacy DC cameras, but if you're greenfield, push for PoE. One cable, no separate 12V runs, cleaner rack design. The camera's sub-13W draw makes it a featherweight on any 802.3af switch.
The INSIGHT S245(4MM) is the right choice for mixed-lighting commercial corridors, retail entry points, and warehouse office spaces where you can't add lighting and WDR performance justifies the investment. Pair it with a Milestone or Hanwha NVR, enable H.265, and it delivers forensic-grade evidence at low storage cost.
