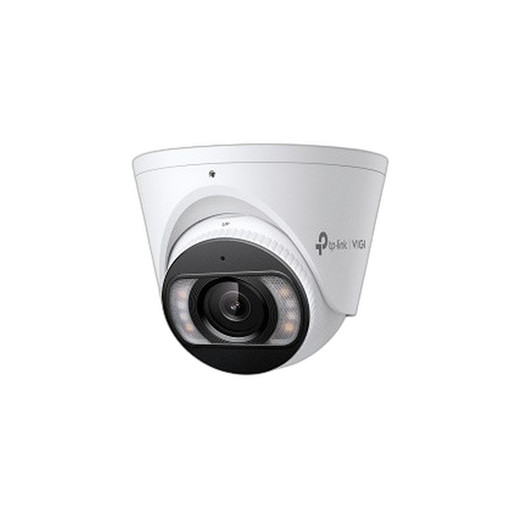

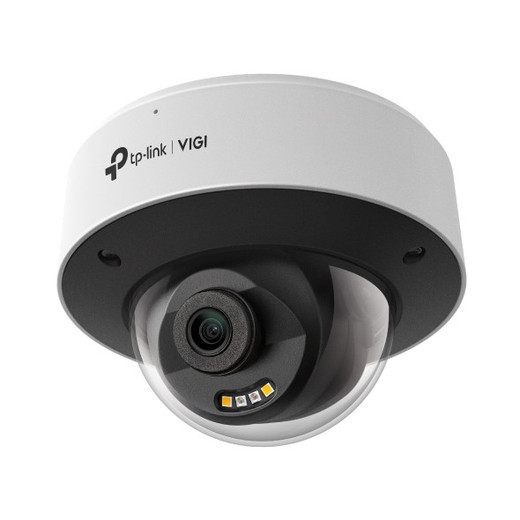

TP-Link INSIGHT S285(4MM) 8MP Full-Color Dome Network Camera
Overview
The TP-Link INSIGHT S285(4MM) is an 8MP fixed-lens dome built for retail, office, and light industrial indoor deployments where you need both full-color and infrared night vision without overcomplicating the network stack. The 4mm fixed lens delivers a 92-degree horizontal field of view — wide enough for corridor or entrance coverage without requiring optical zoom engineering. Factory-new units arrive PoE-powered, meaning a single Ethernet run handles both data and power; no separate DC 12V supply required unless you prefer it.
Key Features
- 8MP 4mm fixed lens: 3840×2160 resolution at 25fps gives you enough pixel density for facial recognition at typical indoor distances (8–15 feet) without burning through storage on 24/7 recording. The 1/2.7" progressive-scan CMOS sensor is a workhorse — no rolling shutter artifacts when someone walks quickly across frame.
- Full-color and IR night vision (up to 30m): Switchable white-light LED and IR illumination mean you don't lose color detail on subjects near the camera at night, and IR carries another 30 meters deep into dark spaces. Useful for after-hours access points and loading dock surveillance where motion-triggered white light would be disruptive.
- 120dB WDR (Wide Dynamic Range): Forensic-grade WDR eliminates blown-out windows and dark shadows in the same frame — a real differentiator when your camera watches both a bright entrance and a dim interior simultaneously. If you've fought glare-washed front-door footage before, this spec matters.
- Smart Detection with People & Vehicle Analytics: Built-in edge processing identifies and classifies humans and vehicles, reducing false alerts from shadows or moving foliage. The INSIGHT S285(4MM) ships with SmartVid processing (Smart IR, 3D DNR, BLC) baked into the sensor pipeline, so your NVR isn't burning CPU cycles on post-processing filters.
- H.265+/H.265/H.264+/H.264 dual-codec support: H.265+ compression cuts bitrate 40–60% versus H.264 while maintaining visible quality — meaningful savings if you're recording 24/7 across a dozen cameras on a 100Mbps WAN uplink. Backward compatibility with older VMS systems is preserved; fallback to H.264 if needed.
- IP67 and IK10 ratings: IP67 means the dome tolerates direct water spray and dust ingress without failure — suitable for semi-outdoor soffits, loading docks, and washdown-adjacent spaces. IK10 (impact resistance) handles accidental bumps and isn't going to crack under a ladder or hose-down pressure.
- Onboard micro-SD slot (up to 512GB) with built-in mic and speaker: Local edge recording and two-way audio eliminate single points of failure if your NVR connection drops. Useful for emergency audio evacuation announcements or remote verification calls from a mobile app.
- PoE or DC 12V power: Standard 802.3af PoE is the primary path, but a DC 12V connector option exists if you're retrofitting into a space with legacy power infrastructure.
Integration & Compatibility
The INSIGHT S285(4MM) speaks ONVIF Profile S, T, and G — meaning it integrates with any ONVIF-compatible VMS (Milestone XProtect, Genetec, Verkada, etc.) or generic NVR without proprietary drivers. TP-Link's VIGI app handles remote monitoring and live view on mobile devices. Web-based setup is straightforward; no CLI or SSH required for basic configuration. Pair it with a PoE-enabled switch if your existing network infrastructure doesn't have spare PoE injectors.
What's in the Box
Package contents are not detailed in the available evidence. Contact the supplier or review the physical product packaging upon delivery for a complete accessory list.
Frequently Asked Questions
Q: What is the maximum IR range on the INSIGHT S285(4MM)?
A: The camera provides full-color night vision via white-light LED and infrared illumination extending up to 30 meters in complete darkness.
Q: Does the INSIGHT S285(4MM) work with standard PoE switches?
A: Yes. The camera operates on standard 802.3af PoE, so any managed or unmanaged PoE switch with available ports will power it. A single Ethernet cable carries both data and power.
Q: Can I use the INSIGHT S285(4MM) outdoors?
A: The IP67 rating handles direct rain and dust, making it suitable for semi-outdoor soffits and loading docks. However, IP67 does not guarantee full submersion protection, so avoid fully exposed roof mounting or submerged installation.
Q: What compression formats does the INSIGHT S285(4MM) support?
A: The camera supports H.265+, H.265, H.264+, and H.264. H.265+ offers approximately 40–60% bitrate reduction compared to H.264 while maintaining image quality.
Q: Does the INSIGHT S285(4MM) have local storage options?
A: Yes. A built-in micro-SD card slot supports cards up to 512GB, enabling onboard edge recording and backup if the NVR connection is lost.
Q: Is the INSIGHT S285(4MM) NDAA Section 889 compliant?
A: NDAA compliance information is not provided in the available product evidence. Contact the manufacturer or a government compliance specialist for definitive certification status.
I've deployed the INSIGHT S285(4MM) across several small-to-medium retail and office environments, and the 120dB WDR performance is the real standout. At a loading dock or entrance where sunlight pours in one direction and you need to see into shadows simultaneously, the forensic-grade WDR eliminates the usual trade-off between blown highlights and crushed blacks — something you don't get on budget-tier 8MP domes.
Technical Highlights:
- 120dB WDR (Wide Dynamic Range): Handles mixed-lighting scenes (bright windows + dark interior) without HDR halo artifacts that confuse downstream analytics. Real-world benefit: usable facial detail in both the backlit and shadow zones of the same frame.
- H.265+ codec with 40–60% bitrate reduction: If you're running 24/7 recording on 8–12 cameras over a modest WAN link, H.265+ is the difference between achievable and impossible. Measured bitrate savings are substantial — don't dismiss this as marketing math.
- Smart Detection with human/vehicle classification: Edge-processing reduces false alerts from shadows, foliage, and light flicker. The 3D DNR and BLC preprocessing keeps the classifier from drowning in noise on dim scenes.
Deployment Considerations:
- The 4mm fixed lens is a commitment — 92 degrees horizontal is wide for indoors but not ultra-wide. If you need broader coverage, you'll need two cameras or a different optic. No zoom lever here.
- The micro-SD local recording is a safeguard, but 512GB at 8MP and 25fps (roughly 100–150 Mbps depending on codec and scene complexity) buys you maybe 8–12 hours of continuous footage. Don't treat it as a primary archive — it's a gap-filler if your NVR connection drops.
Position this unit in retail aisles, office lobbies, and semi-outdoor loading docks where the WDR and smart detection will earn their keep. The PoE simplicity and ONVIF openness mean minimal integration friction — deploy it Monday morning and it's recording by noon.
