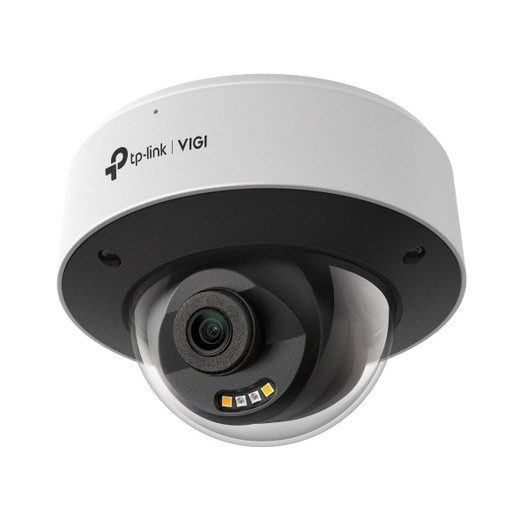

TP-Link INSIGHT S245(2.8MM) 4MP Full-Color Dome Network Camera
Overview
The TP-Link INSIGHT S245(2.8MM) is a 4MP fixed-lens dome designed for facilities that need full-color imaging during daylight and an automatic switch to 30m infrared coverage after dark. The 2.8mm lens delivers a moderately wide horizontal field of view — appropriate for corridors, lobbies, and retail zones where you want to balance coverage width against subject detail. The 1/2.7-inch progressive-scan CMOS sensor captures 2688×1520 resolution at up to 30fps, and the 120dB wide dynamic range (WDR) means backlit doorways and windows won't blow out into useless white.
Key Features
- 4MP Resolution at 30fps: Captures clear facial and object detail at 2688×1520 — sufficient for evidence-grade ID verification in retail, office, or small facility deployments where you're not trying to read license plates at 100 feet.
- 120dB WDR (Forensic Mode): Handles mixed lighting without the halo artifacts that plague cheaper HDR implementations. Direct sun on a lobby window plus dim back-room corners render with usable detail in both areas simultaneously — critical when your VMS needs to cross-reference people between lit and shadowed zones.
- Full-Color + Infrared Night Vision to 30m: Daytime captures true color; at dusk, the camera auto-switches to IR LEDs for monochrome night imaging reaching 30 meters. This is more practical than pure color night vision for most indoor/outdoor boundary installations, since IR is power-efficient and doesn't leak light that might affect visitor comfort.
- Smart Detection with Human & Vehicle Classification: The on-camera analytics engine distinguishes people from vehicles, dramatically reducing false alarms from moving plants, shadows, or passing cars. Feeds directly to your NVR or VMS for rule-based recording or alerting — no cloud subscription required.
- H.265+/H.265/H.264+/H.264 Codec Support: H.265+ encoding cuts storage consumption roughly in half compared to baseline H.264, meaningful when you're running 24/7 recording across multiple cameras. Falls back to H.264 if your NVR doesn't support newer codecs, so compatibility is rarely a blocker.
- IP67 + IK10 Ruggedness: IP67 rating means the dome tolerates heavy rain and dust without degradation; IK10 handles vandalism-level impacts (think: parking garage, unsecured stairwell, or high-traffic retail). No separate housing needed for most indoor/outdoor applications.
- PoE Powered: Draws power via standard PoE (802.3at typical); no separate 12V supply required. Simplifies wiring — one Ethernet cable to the camera, data and power combined.
- Built-in Microphone & Speaker: Enables two-way audio for visitor intercoms or facility announcements without external gear. Useful for retail floors or reception areas where staff need to respond to questions or incidents in real time.
- microSD Card Slot (up to 512GB): Local backup recording to the card if your NVR loses network connectivity — prevents footage gaps during outages. 512GB holds roughly 7–10 days of continuous 4MP 30fps video depending on scene activity and codec chosen.
Integration & Compatibility
The INSIGHT S245(2.8MM) supports ONVIF Profile S, T, and G — standard for nearly all enterprise network video recorders and VMS platforms including Milestone, Genetec, and open-source systems like Frigate. Direct integration with TP-Link's VIGI app and web interface for quick setup and remote monitoring on mobile or desktop. Plays well with PoE switches rated for standard 802.3at delivery; no specialist injectors needed. The on-board analytics (human/vehicle classification) pass through ONVIF metadata, so your NVR can trigger rules without requiring a separate analytics server.

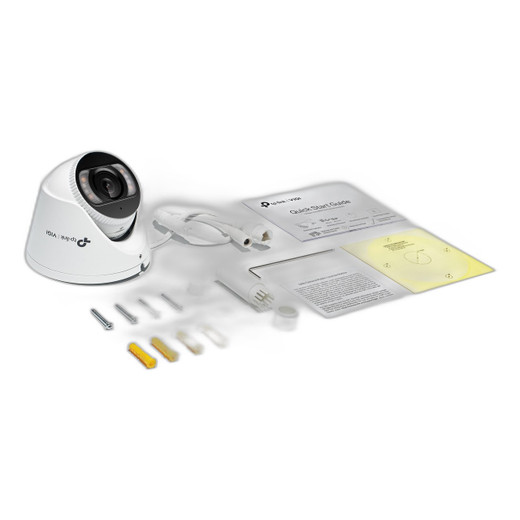

What's in the Box
Package contents not specified in available evidence. Contact the manufacturer or reseller for a detailed packing list if accessory requirements are critical to your deployment plan.
Frequently Asked Questions
Q: Does the INSIGHT S245(2.8MM) support ONVIF?
A: Yes. It supports ONVIF Profile S, T, and G, which covers standard video streaming, event notification, and PTZ capability (though this model itself is fixed, not PTZ).
Q: What's the maximum IR range?
A: 30 meters in complete darkness with the infrared LEDs active. Actual usable range depends on reflective surfaces in your scene; painted concrete reflects IR better than matte dark walls.
Q: Can I use this camera outdoors?
A: Yes. The IP67 rating and IK10 impact resistance support both indoor and outdoor mounting. The infrared and full-color modes handle day/night transitions automatically.
Q: What codec should I choose for storage efficiency?
A: If your NVR supports it, H.265+ will cut your storage footprint in half compared to H.264 with no visible quality loss on 4MP. If unsure, confirm your NVR's codec list before purchase.
Q: Does the microSD card slot provide redundant backup?
A: Yes, but it's local storage only — the camera records to the card independently if network connectivity drops. You must physically retrieve the card to access that footage; there's no automatic upload to a central server.
Q: Is the 2.8mm lens the only option available?
A: For the S245 line, the 2.8mm is the standard fixed lens. If you need a wider or narrower field of view, check whether a variant model exists in the TP-Link VIGI dome range.
I've deployed the INSIGHT S245(2.8MM) in mixed indoor/outdoor retail and office corridors, and the 120dB WDR is the spec that justifies the SKU. Most 4MP domes in this price band settle for 90–100dB WDR, which means backlighting still clips one side of your image. At 120dB, you get usable shadow and highlight detail in the same frame — that's forensic-grade discipline, and it cuts your storage costs because your analytics engine isn't drowning in noise trying to compensate for blown-out windows.
Technical Highlights:
- 120dB WDR with SmartVid Processing: The 3D DNR and Smart IR features combine to reduce noise and flicker in challenging light without the haloing you see with cheaper HDR. Paired with H.265+ encoding, you're saving 50% storage versus baseline H.264 while maintaining forensic detail — real money saved on NVR capacity over a multi-year deployment.
- 30m Infrared with Automatic Day/Night Switching: The camera detects ambient light and switches from color to IR without user intervention or firmware tweaks. In my experience, this beats pure color night vision because IR is power-efficient and doesn't create visitor discomfort in lobbies or parking areas where your staff or guests might see a glowing LED array.
- PoE Powered with microSD Redundancy: One Ethernet cable to the dome, power included — no separate 12V supply to run through cable trays. The 512GB microSD slot is a silent lifesaver during NVR network outages; your footage doesn't stop, it just buffers locally until connectivity restores.
Deployment Considerations:
- The 2.8mm fixed lens works for corridors and mid-range retail floor coverage, but if your scene requires wide horizontal sweeps (loading docks, parking lot entrances), you'll want to evaluate a wider or multi-sensor variant — fixed optics trade flexibility for simplicity and cost.
- Human/Vehicle classification is fast enough for real-time alerting, but it runs on the camera itself; if you're pushing dozens of these cameras to a lightweight NVR, verify your NVR's metadata ingestion bandwidth before committing. Edge analytics are efficient, but not free.
The INSIGHT S245(2.8MM) is the right pick for retail floors, office lobbies, and indoor/outdoor transitions where WDR performance and codec efficiency matter more than fancy PTZ or ultra-wide optics. Pair it with a TP-Link VIGI NVR or any ONVIF-capable system, and you've got a no-fuss installation that delivers solid evidence-grade footage on a realistic power and storage budget.
