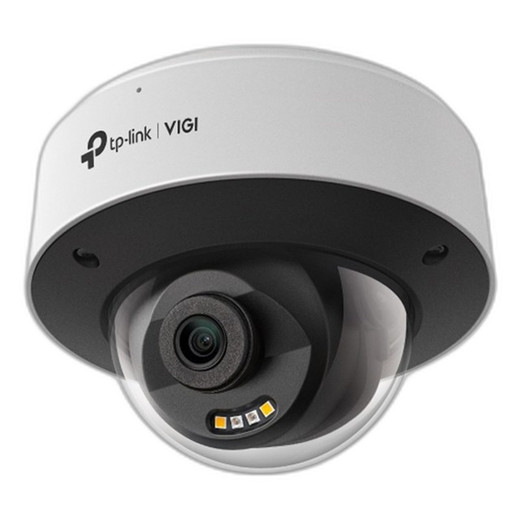

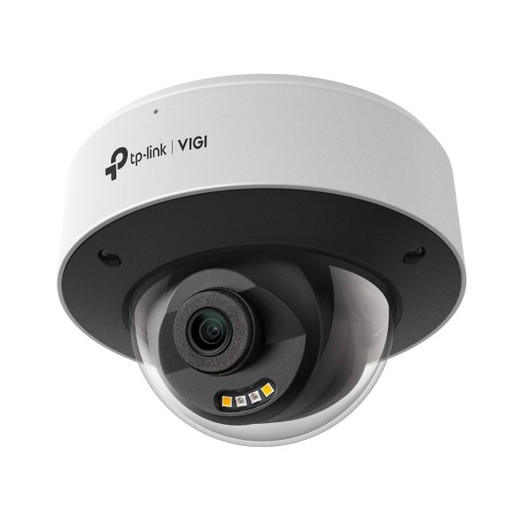

TP-Link INSIGHT S285(2.8MM) 8MP Full-Color Dome Network Camera
Overview
The TP-Link INSIGHT S285(2.8MM) is an 8MP full-color dome purpose-built for retail floors, lobbies, and entrance monitoring where you need evidence-grade footage in mixed lighting without eating storage. The 2.8mm fixed lens delivers a 110° horizontal field of view — wide enough for typical indoor corridors without requiring pan/tilt complexity. Built-in IR LEDs extend night vision to 30 meters, while synchronized white-light LEDs ensure color detail after dark when motion matters. Smart detection engine classifies humans and vehicles in real-time, cutting false alerts and making footage search faster when you need it.
Key Features
- 8MP (3840 × 2160) 1/2.7" CMOS sensor: 4x the pixel count of 2MP cameras means sharper facial detail and license-plate legibility at typical 10–15 meter indoor distances. Particularly valuable for retail and hospitality where guest identification matters post-incident.
- H.265+ and H.265 compression: H.265+ intelligently compresses low-motion areas (walls, ceilings) while preserving detail on moving subjects. Compared to H.264, you'll see 40–60% storage reduction on 24/7 recordings — meaningful when scaling from single camera to 8+ unit deployments on modest NVR storage.
- Full-color night vision with dual lighting: IR LEDs (up to 30m range) handle pitch-black scenes; white-light LEDs maintain color for better facial recognition in dimly lit spaces. No floodlight deployment needed for entry vestibules or back-of-house corridors.
- 120dB WDR (wide dynamic range): Handles sunlit windows and shadowed interior simultaneously without halo artifacts. Watch the door with sun blazing behind it without losing detail on the entry threshold — WDR algorithms eliminate the over/underexposed trade-off.
- Human and vehicle classification analytics: Edge-based detection filters out animals, shadows, and wind-blown debris — only alerts you to actual people or vehicles. Dramatically cuts false positive noise in retail motion-based recording or perimeter monitoring.
- IP67 and IK10 rated for durability: IP67 means dust-tight and submersible to 1 meter for 30 minutes — handles spray wash-downs and high-humidity back-of-house areas. IK10 withstands 20J impacts (equivalent to 5kg object dropped 40cm) without lens or dome breakage — essential in retail traffic areas or warehouses with occasional bumps.
- PoE or 12V DC power flexibility: Draws under 13W via standard 802.3af PoE, eliminating separate power runs on retrofit installations. DC 12V option available for sites with legacy power infrastructure or where PoE injectors aren't convenient.
- Micro-SD local recording up to 512GB: On-device storage acts as edge backup — if your NVR goes offline, the camera continues recording. Retrieves critical footage without transport loss or dependency on centralized storage.
- Built-in mic and speaker: Enables two-way audio for retail customer service, warehouse dispatch, or security challenges without separate intercom hardware. Real-time communication from VMS or mobile app reduces dispatch delays.
- ONVIF Profile S/T/G compliance: Integrates with any ONVIF-capable VMS (Milestone XProtect, Genetec, Hanwha Wisenet, etc.) or third-party NVR software — eliminates vendor lock-in and lets you mix brands on the same network.
Integration & Compatibility
The INSIGHT S285(2.8MM) works with TP-Link VIGI NVRs, generic ONVIF-compliant VMS platforms, and standalone remote monitoring via TP-Link VIGI mobile app or web browser. Supports simultaneous H.264+ and H.265+ streams, allowing older VMS clients to pull H.264 while modern systems use H.265+ for bandwidth efficiency. Smart IR, 3D denoise (DNR), and backlight compensation (BLC) are all hardware-accelerated — no CPU overhead on your NVR.
What's in the Box
Package contents are not detailed in available evidence. Contact the manufacturer or your supplier for a verified packing list before installation planning.
Frequently Asked Questions
Q: What's the actual field of view with the 2.8mm lens?
A: The 2.8mm fixed lens on the INSIGHT S285(2.8MM) delivers approximately 110° horizontal field of view — typical for indoor corridor and retail-floor coverage without ultra-wide distortion.
Q: Does the INSIGHT S285(2.8MM) work with my Milestone XProtect VMS?
A: Yes. The INSIGHT S285(2.8MM) supports ONVIF Profiles S, T, and G, making it compatible with any ONVIF-certified VMS including Milestone, Genetec, Hanwha Wisenet, and others. Add it as a standard ONVIF IP camera in your VMS.
Q: How much network bandwidth does the INSIGHT S285(2.8MM) consume?
A: H.265+ compression typically reduces bandwidth 40–60% compared to H.264 on the same scene. Exact bitrate depends on motion complexity and quality settings, but H.265+ at 8MP will consume roughly 2–4 Mbps on moderate motion. Check the datasheet or contact TP-Link pre-sales for detailed bitrate tables.
Q: Can I record to a microSD card if the NVR loses connection?
A: Yes. The INSIGHT S285(2.8MM) supports on-device microSD recording up to 512GB. Configure the camera to record locally, and it will continue capturing while network issues are resolved — no footage loss during brief NVR downtime.
Q: Is the INSIGHT S285(2.8MM) suitable for outdoor use?
A: The IP67 rating permits spray and temporary submersion, but it's not rated for sustained outdoor weathering (rain, snow, UV). It's designed for covered entries, overhangs, and indoor high-moisture areas. For full outdoor weather resistance, consult TP-Link's turret or bullet camera lines with IP66/67 outdoor housings.
Q: What warranty does the INSIGHT S285(2.8MM) include?
A: Manufacturer warranty details are not specified in available evidence. Contact TP-Link or your supplier for warranty coverage terms and duration.
The INSIGHT S285(2.8MM) hits a practical middle ground for indoor surveillance: 8MP resolution paired with dual-mode night vision (IR + white light) and hardware-accelerated H.265+ compression. If you're managing storage constraints on a 16-camera retail or hospitality deployment, the H.265+ codec delivers real savings — 40–60% smaller files than H.264 without visible quality loss on 8MP 24/7 footage.
Technical Highlights:
- 120dB WDR and dual-mode night vision: The combination of IR (30m range) and white-light LEDs means you get color detail in dim spaces without a separate floodlight. The 120dB WDR eliminates the overexposed/underexposed trade-off when sun hits a glass door — critical for retail entrances where you need both the outside and inside visible simultaneously.
- Edge-based human and vehicle classification: Real-time analytics run on the camera itself, not the NVR. This cuts false alerts dramatically — no more recording dog-induced motion triggers. In retail environments with high foot traffic, the difference between 50 daily alerts and 500 is the difference between actionable and useless.
- H.265+ with H.264 fallback: Modern NVRs and VMS platforms handle both simultaneously. Older clients pull H.264 (backward compatible); new systems use H.265+ for bandwidth efficiency. On a typical 4MP to 8MP mixed deployment, H.265+ alone saves 1–2 Mbps per camera at full frame rate.
Deployment Considerations:
- The 2.8mm lens is fixed — no zoom adjustment post-install. Measure your corridor width and mounting height before committing; at 3 meters height, you'll cover roughly 6–8 meters of floor width. If you need wider or tighter coverage, you're swapping the camera or choosing a different lens variant.
- IP67 rating is solid for indoor splash and high-humidity areas (kitchens, restrooms, washdown zones), but don't mount it in direct outdoor rain or frost. If you need true outdoor weather resistance, TP-Link's turret or bullet lines with full IP66/67 outdoor ratings are the move.
- MicroSD slots can fail under continuous 24/7 write cycles — the 512GB card life is finite. Use it as edge backup and failover, not your primary recorder. Sync frequently to your NVR or cloud archive.
Deploy the INSIGHT S285(2.8MM) in indoor retail floors, office lobbies, or hospitality check-ins where you need sharp facial and clothing detail without burning storage on every camera in the building. Pair it with TP-Link VIGI NVRs or any ONVIF VMS for straightforward integration and zero vendor lock-in.
