TP-Link EAP773 Omada BE11000 Ceiling Mount Tri-Band Wi

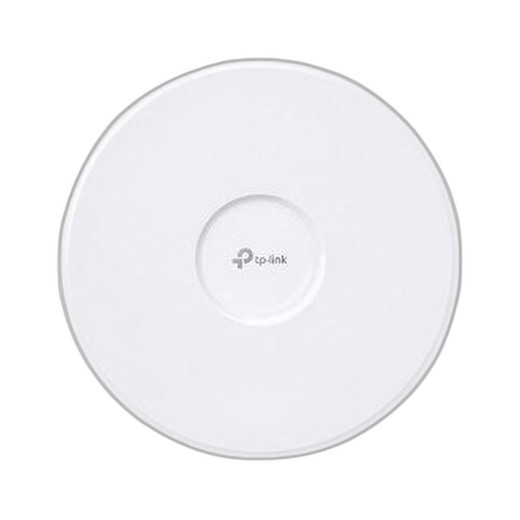

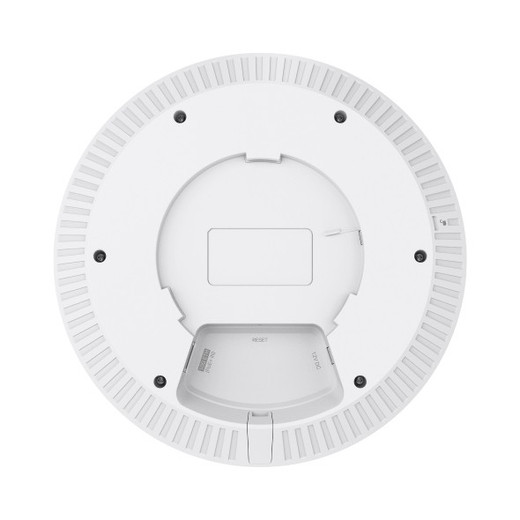

TP-Link EAP773 Omada BE11000 Wi-Fi 7 Ceiling Mount Access Point

Overview

The EAP773 is a ceiling-mount tri-band Wi-Fi 7 access point (US model: BE11000; EU model: BE9300) engineered for enterprise environments requiring high-density client support and multi-band spectrum utilization. The single 10G RJ45 port consolidates backhaul capacity into one connection, eliminating the need for multiple gigabit uplinks per AP — a practical simplification in warehouse automation, retail campuses, and high-client-density offices where cable routing and PoE infrastructure strain quickly multiplies. The 6 GHz band (5760 Mbps in US spec) offloads congested 5 GHz traffic, improving throughput predictability across 128 concurrent clients per band. Internal antenna design (2.4 GHz: 2×4 dBi; 5 GHz: 2×5 dBi; 6 GHz: 2×5 dBi) reduces visible clutter on acoustic drop ceilings and simplifies maintenance protocols. Multi-Link Operation (MLO) and 4K-QAM modulation reduce latency and focus RF efficiency — tangible for mobile device handoff and WMS scanners in motion.

Compatibility

The EAP773 integrates with the Omada SDN Controller (software-defined networking platform) for centralized provisioning, band steering, load balancing, and airtime fairness across multiple access points. Requires Omada Controller or cloud-based Omada management service for full feature deployment — standalone mode is not recommended for production enterprise use. Compatible with enterprise networks standardizing on Wi-Fi 7 infrastructure; backward-compatible with 802.11a/b/g/n/ac/ax clients. Supports Bluetooth 5.2 for auxiliary pairing and device management workflows. Seamless roaming across multiple EAP773 units (and other Omada APs) enables client handoff without reconnection delays — critical for barcode scanners and mobile tablets in active warehouse operations.

Installation Notes

Draws 30W at 12V DC. Supports 802.3bt PoE++ injection (preferred — eliminates separate power drop) or optional 12V DC power adapter (not included). Confirm PoE switch or injector explicitly supports 802.3bt output; standard 802.3at (30W max) and 802.3af (15.4W max) are insufficient. Ceiling/wall mounting kits included. Operating temperature range: 0°C–40°C (32°F–104°F); verify HVAC capacity in server closets or unconditioned spaces. Dimensions: 220×220×32.5 mm (W×D×H) — confirm ceiling grid or wall clearance before ordering. CE, FCC, RoHS, IC certifications verify regional compliance.

What's in the Box

• 1× EAP773 access point
• Ceiling and wall mounting kits (included)
• RJ45 ethernet cable
• Quick start guide
