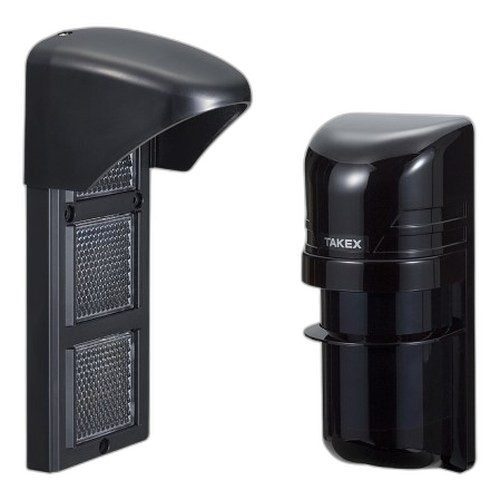

Takex PR-30BE Photoelectric Beam Detector
The Takex PR-30BE is a reflective photoelectric beam detector designed for outdoor perimeter security applications. With a 30-meter detection range and IP66-rated weatherproof construction, the PR-30BE provides reliable intrusion detection in demanding environmental conditions. This outdoor-rated photoelectric beam uses time-of-flight detection technology to identify obstructions along its detection path, making it suitable for fence lines, building perimeters, and open-area surveillance zones where continuous beam integrity monitoring is required.
Overview
Photoelectric beam detectors operate by projecting an infrared beam between a transmitter and receiver unit (or reflector). The PR-30BE uses reflective beam configuration, where a single unit projects the beam toward a reflective mirror, which returns the signal to the same unit. This configuration simplifies installation by eliminating the need to align transmitter and receiver across wide distances. The 30-meter range makes the PR-30BE suitable for medium-distance perimeter applications, from warehouse dock areas to parking lot boundaries and residential property lines.
Key Features
- 30-Meter Detection Range: Covers perimeter distances of up to 100 feet, appropriate for residential and light commercial security boundaries
- Reflective Beam Design: Transmitter and receiver integrated into single unit; beam reflects off passive mirror for simplified alignment and reduced installation labor
- IP66 Rating: Fully sealed against dust and water jets from all directions; suitable for direct outdoor exposure without protective enclosures in most climates
- Time-of-Flight Detection: Photoelectric sensing technology measures beam transit time to detect obstructions; not affected by ambient light fluctuation
- Outdoor-Rated Construction: Engineered for environmental exposure including moisture, temperature cycling, and UV radiation
- Intrusion Detection: Generates alarm signal on beam interruption; integrates with standard security control panels and alarm systems via relay output
Integration & Compatibility
The Takex PR-30BE connects to security control panels and alarm management systems via standard relay output contacts. The detector is compatible with most wired alarm system architectures, including hardwired perimeter loops and zone-based monitoring configurations. Relay contacts support normally-open and normally-closed configurations, allowing flexible integration into existing alarm logic.
Deployment Considerations
Outdoor installation of the PR-30BE requires proper positioning to maintain clear beam path between transmitter and reflector. The IP66 rating ensures moisture resistance, but the unit should be mounted to avoid direct water spray impact where possible. Temperature stability and vibration isolation improve detection reliability, particularly in high-wind environments. The 30-meter range is effective for property perimeters, fence line monitoring, and gate areas; longer distances require multiple beam units positioned in series or overlapping arrays.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Takex PR-30BE represents a straightforward, proven approach to outdoor perimeter intrusion detection. In my deployment planning work, I've found reflective beam detectors like the PR-30BE deliver consistent performance when beam alignment is maintained and the detection zone is kept clear of vegetation and moving debris. The 30-meter range sits at the practical limit for single-beam coverage; beyond that distance, false-alarm rates typically increase due to atmospheric particulates and thermal shimmer.
Technical Highlights:
- IP66 Environmental Rating: The PR-30BE's sealed construction handles outdoor moisture and temperature swings without performance degradation, reducing maintenance cycles in wet climates
- Reflective Beam Simplicity: Single-unit design eliminates transmitter-receiver alignment headaches; the passive mirror reflector is inherently more stable than dual-unit beam systems
Deployment Considerations:
- Mount the reflector on a stable post or fence structure at the same height as the detector; misalignment of more than 2–3 degrees will cause intermittent beam loss and nuisance alarms
- Vegetation management is critical; even light brush or climbing vines crossing the beam will trigger repeated alarms; position the beam height above typical weed growth lines
- In high-wind areas, consider vibration damping mounts to reduce beam drift; temperature-driven focus shift is minimal in quality photoelectric units, but mechanical movement from wind loading is not
The PR-30BE is ideal for property owners and integrators seeking cost-effective perimeter detection in the 20–35 meter range. Its simplicity, weatherproofing, and relay-based integration make it a reliable choice for hardwired alarm ecosystems. I recommend it for fence lines, parking boundaries, and building perimeter zones where beam obstruction is unlikely and maintenance staff can perform quarterly alignment checks.
