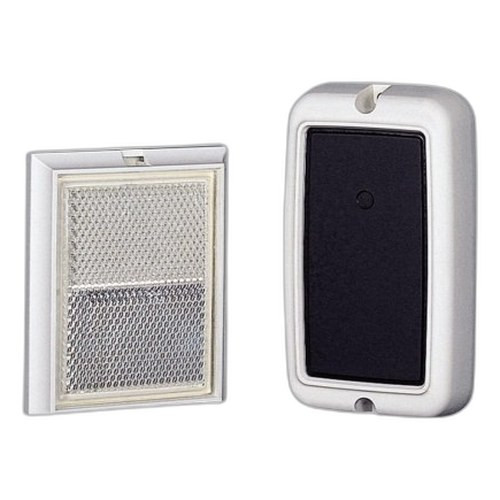

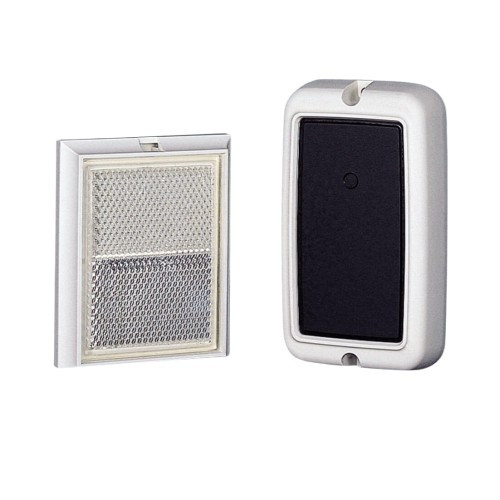

Takex PR-5B Photoelectric Beam Detector
The Takex PR-5B is a reflective photoelectric beam detector engineered for outdoor perimeter protection. Operating at a 5-meter detection range, this device uses a focused infrared beam to identify obstructions in monitored zones, making it suitable for fence lines, gate entries, and property boundaries where reliable volumetric detection is required.
Overview
The PR-5B operates on photoelectric beam principles: a transmitter projects an infrared beam toward a reflector, and a receiver monitors signal integrity. When an object interrupts the beam, the detector triggers an alarm output. This reflective configuration eliminates the need for a receiver unit at the far end of the monitored zone—the reflector handles return beam direction. The 5-meter range provides cost-effective coverage for standard perimeter applications without requiring multiple units in many installation scenarios.
Key Features
- 5-Meter Detection Range: Covers standard perimeter zones with single-unit deployment in many configurations
- Reflective Beam Design: Uses passive reflector, reducing installation complexity compared to separate transmitter/receiver pairs
- Outdoor-Rated Construction: Built for exposure to weather, temperature fluctuation, and environmental contaminants
- IP66 Protection Rating: Dust-tight and protected against high-pressure water jets, meeting demands of wet environments and coastal installations
- Infrared Technology: Immune to visible light interference, ensuring stable operation in daylight, dawn, dusk, and variable lighting conditions
- Alarm Relay Output: Direct integration with security control panels and annunciation systems via standard relay contacts
Integration & Compatibility
The PR-5B connects to security control panels through its alarm relay output, compatible with standard wired perimeter security architectures. No software interface or network protocol is required—installation integrates directly into conventional alarm system wiring. The detector suits both standalone perimeter applications and multi-zone installations where beam detectors are networked through a central control platform.
Outdoor Deployment Characteristics
The IP66 rating ensures the PR-5B withstands heavy rain, spray, and washdown environments typical of outdoor perimeter security. The reflective beam configuration tolerates minor reflector misalignment (within manufacturer specifications), allowing practical field installation without precision optics mounting. UV-stabilized housing materials protect the device from solar degradation during extended outdoor exposure.
The Takex PR-5B (often searched as PR 5B) serves security integrators deploying perimeter detection on constrained budgets or in applications where point-to-point beam detection across distances under 5 meters is sufficient. Its weatherproof design and relay-based interface make it a straightforward addition to existing alarm infrastructure without requiring system software upgrades or network protocol support.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Takex PR-5B in outdoor perimeter deployments, particularly for fence-line and gate-entry applications. The reflective beam approach offers practical advantages: eliminating the need for a separate receiver unit on the far side of a monitored opening reduces wiring runs and minimizes visual footprint. The 5-meter range is well-suited to residential and light commercial property boundaries where detection zones are concentrated rather than sprawling.
Technical Highlights:
- IP66 Weather Sealing: The IP66 rating provides dust and high-pressure water jet protection, which is essential in coastal environments or installations subject to automatic irrigation spray. Field experience shows reliable operation in heavy rain without nuisance alarms from moisture condensation.
- Infrared Beam Stability: Infrared wavelength immunity to sunlight and visible light interference ensures consistent detection performance throughout the day without the daylight/nighttime sensitivity shifts common in passive infrared detectors.
Deployment Considerations:
- Position the reflector perpendicular to the transmitted beam and account for temperature-induced beam drift during commissioning. Reflector alignment tolerance is typically ±10 degrees, but tighter alignment improves margin.
- Verify control panel relay input supports the PR-5B's alarm output voltage and contact current rating. Most modern wired panels accept standard dry contacts without issue, but legacy systems may require external relay interfaces.
The PR-5B is a reliable choice for straightforward outdoor perimeter detection where 5-meter range coverage meets security requirements. Its simplicity and weatherproof design reduce long-term maintenance compared to complex multi-sensor systems, particularly in stable deployment environments.
