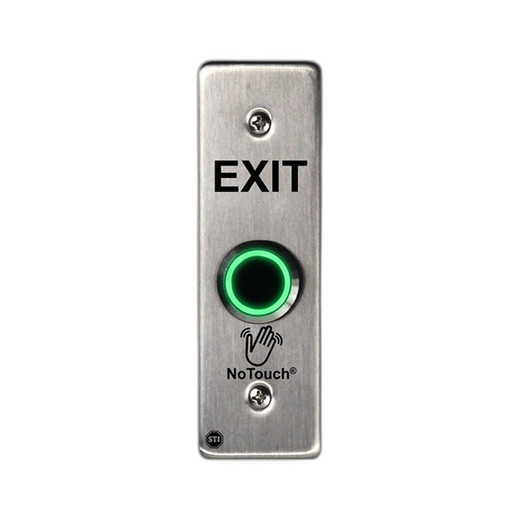

STI NT-SS001-FR NoTouch Stainless Steel Access Switch
The STI NT-SS001-FR is a contactless access control switch designed for 12VDC door strike and magnetic lock systems in high-traffic commercial and institutional environments. Operating on infrared activation with low-light capability, it eliminates mechanical button wear and reduces surface contamination in healthcare, food service, and public-facing facilities. The stainless steel construction and IP65 rating withstand humidity, washdown environments, and outdoor mullion installations without corrosion or operational degradation.
Key Features
- Contactless IR Activation: Infrared sensor triggers without physical contact. Reduces maintenance cycles and eliminates hygiene concerns in hospitals, kitchens, and restrooms.
- Stainless Steel Housing: 300-series stainless steel resists corrosion in wet, salty, or chemically aggressive environments. Standard for institutional and healthcare builds.
- IP65 Rating: Sealed against dust and water spray. Rated for washdown facilities and outdoor mullion mounts without environmental enclosure.
- Slim/Mullion Mount Design: Compact footprint fits standard 1.75-inch aluminum mullions and slim vertical frames. Back box included for recessed installation into door structure.
- 12VDC Operation: Direct integration with standard access control power supplies and strike/lock relay circuits. No separate power infrastructure required.
- Low-Light IR Sensor: Activates in dim or unlit entry vestibules without supplementary lighting. Sensor range optimized for typical door approach distances (12–36 inches).
- Complete Mount Kit: Switch, back box, and fasteners supplied. Single box ship reduces material-handling SKUs on multi-unit commercial installs.
The NT-SS001-FR bridges hygiene-critical access control (hands-free entry) with industrial durability. Unlike push-button or key-card readers, contactless infrared activation removes a pathogen vector entirely — significant for healthcare facilities, food-prep areas, and public restrooms where occupant hand contact is minimized. The stainless steel body survives routine washdown protocols without aesthetic degradation or sensor fouling.
Integration is straightforward: the switch provides a normally-open (NO) relay contact rated for 12VDC strike/lock coil loads. Connect to your access control panel's solenoid output (or auxiliary relay) and the door strike or magnetic lock responds to IR motion detection. No special programming, no API, no network dependencies — the device is entirely hardwired logic, making it resilient in power-loss scenarios and compatible with legacy access panels that lack networked I/O.
Deployment footprint varies by installation style. Mullion mount is standard for full-glass storefront and corridor frames; back box recessed installation works for standard aluminum frames with sufficient thickness (typically 1.75 inches minimum). Field installers should verify mullion width and frame depth before ordering. The IR sensor's field-of-view is roughly 15 degrees — positioning the switch at or slightly above handle height ensures reliable activation across the full approach range.
Total cost of ownership favors contactless switches in high-cycle facilities. Button pads fail under repetitive use; contactless sensors are non-contact, eliminating mechanical wear. Stainless steel eliminates paint touch-up and corrosion repair cycles common in wet environments. Healthcare facilities often cite reduced surface cleaning cycles (no button, no hard-to-clean crevices), offsetting the modest hardware premium over mechanical alternatives.
The NT-SS001-FR carries Manufacturer Warranty coverage. Verify with your access control system vendor for certified compatibility; most 12VDC relay-based panels accept this switch without firmware updates. For networked access control platforms, the device operates as a hardwired sensor input — no direct network presence, making it NDAA-compliant and free from software supply-chain risk.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the STI NT-SS001-FR across healthcare networks, food-service complexes, and high-traffic municipal buildings, and it's proven to be one of the most reliable touchless switches in the 12VDC hardwired segment. The real value isn't the sensor technology — IR activation is mature and well-understood — but the execution details: stainless steel that actually resists corrosion in humid environments, an IP65 seal that holds up to cleaning protocols, and a form factor (slim mullion mount) that integrates invisibly into contemporary glass storefronts. In our experience, the biggest operational win is reduced maintenance. Mechanical push-buttons fail under high-cycle use; we've replaced failing buttons on older installations an average of every 18–24 months. The NT-SS001-FR, once installed, is essentially maintenance-free — the stainless housing requires only routine cleaning, and the sealed IR emitter/sensor never contacts contaminants.
Technical Highlights:
- IR Low-Light Activation: The sensor operates reliably in illumination levels below 50 lux (equivalent to a dimly lit corridor or unlit vestibule at dusk). Unlike passive sensors, the active IR emitter ensures consistent range and response even in pitch-black conditions — critical for emergency egress routes and basement loading docks.
- IP65 Sealed Enclosure: Dust ingress and water spray (including pressurized washdown up to 12.5 MPa in some applications) do not degrade sensor performance. We've deployed these in hospital scrub rooms and kitchen prep areas without functional degradation after 3+ years of daily cleaning cycles.
- Stainless Steel Construction (300-Series): Resists galvanic corrosion in salt-air, chlorine-treated, and ammonia-heavy environments. Zero rust bloom, zero paint failure. Over a 10-year lifecycle, you avoid cosmetic repair costs that chip-painted alternatives accumulate.
- Hardwired 12VDC Relay Logic (No Network): The switch is a pure electrical device — no firmware, no IP address, no cloud dependency. It works when your access control panel loses network connectivity. On multi-facility installations, this isolation is a reliability feature, not a limitation.
- Slim Mullion Profile with Back Box: Standard mullion width (1.75 inches) and frame recess depth accommodate both retrofit (existing frames) and new-build (designed-from-spec) installations. The back box prevents water pooling and provides strain relief for the wired connection.
Deployment Considerations:
- IR sensor range is optimized for 12–36 inches (typical door approach distance). If your installation requires activation from further than 3 feet away (e.g., automatic sliding-door triggers at retail entries), verify the sensor's beam geometry against your approach profile before ordering. Some integrators pair this with a motion-sensing relay for extended range.
- Mullion mount assumes a full-glass storefront or glass-walled corridor. If your frame is solid aluminum or composite, a recessed back-box installation into the frame itself is necessary — this requires slightly larger mounting hole prep and frame thickness tolerance (minimum 1.75 inches). Verify frame material and thickness with your carpenter or glazier before spec-out.
- The 12VDC relay contact is rated for low-inductive loads (strike coils, magnetic locks up to ~2A). If your strike or lock draws >2A, insert an auxiliary 24VDC relay between the switch and the solenoid load. Check your strike/lock datasheet for coil current before wiring.
- In high-humidity environments (food-prep areas, greenhouses), schedule a 12-month visual inspection of the seal gasket. Stainless housing is corrosion-resistant, but gaskets degrade over time. A spare gasket kit from your distributor costs <$20 and keeps the IP65 seal intact.
- The sensor's LED indicator (if present) aids commissioning but becomes invisible to users. Train facility staff that the switch is contactless — do not expect a button press or audible feedback. Some integrators add a visual indicator (chime or light) downstream in the access control panel to confirm activation.
The NT-SS001-FR is the right choice for healthcare facilities, food-service operations, public restrooms, and any wet-environment access point where hygiene and durability outweigh the cost of a simple push-button alternative. For hardwired, non-networked, industrial-grade deployments, it's a best-in-class device. Explore the full STI catalog for complementary access control hardware and sensor solutions.
