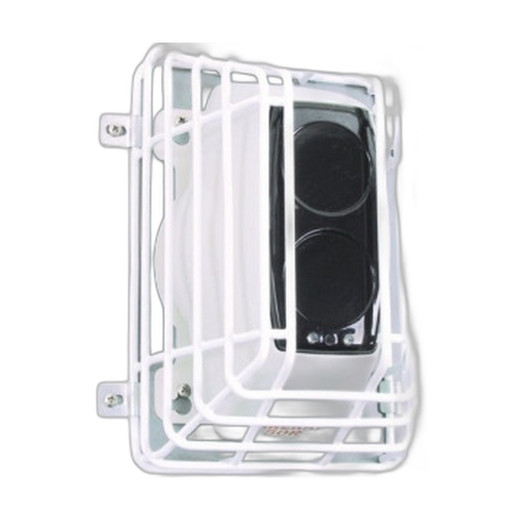

STI STI-9624 Protective Wire Guard for Fireray Beam Detectors
Overview
The STI-9624 is a protective wire guard designed to shield Fireray 50/100R infrared beam detector units from dust accumulation and environmental debris. Dust buildup on reflective mirrors and transmitter optics degrades beam alignment and triggers false alarms — a persistent problem in high-dust environments such as warehouses, manufacturing floors, loading docks, and industrial facilities. The STI-9624 mounts directly over the detector unit without requiring realignment of the beam itself, making it a practical retrofit solution where frequent recalibration would otherwise drain maintenance resources.
Key Features
- Non-destructive installation: Wire guard fits directly over Fireray 50/100R units without modification to electrical conduit systems or sensor mounting — you keep the original detector configuration intact and can remove the guard if needed without damage.
- Dust and debris protection: Screens reflective mirrors and transmitter optics from particulate accumulation that causes misalignment and nuisance alarms — critical in grain handling, woodworking, metal fabrication, and any environment where airborne dust is routine.
- Flexible mounting orientation: Accommodates both surface-mount and flush-mount detector configurations and can be oriented on the side, top, or bottom of the detector depending on your spatial constraints and optical path geometry.
- Four-point clamping system: Includes four H19020 mounting clamps and four #10 × 1.5 in. screws for stable, repeatable attachment — distributed fasteners reduce vibration-induced movement that could compromise optical alignment over time.
- Compact form factor: Guard width is 9.62 in. (244 mm) with adjustable height of 4–11 in. (102–280 mm) depending on orientation — fits tight ceiling cavities, wall-mounted detector layouts, and corner installations without requiring ductwork rerouting or major facility modifications.
- Maintenance-friendly design: Wire construction allows periodic cleaning and inspection of the guard itself without full detector disassembly — you can brush or blow out accumulated dust without breaking optical alignment or powering down the system.
Integration & Compatibility
The STI-9624 is engineered exclusively for Fireray 50/100R beam detector units. Before ordering, confirm your detector model matches — consult the Fireray detector installation documentation to verify detector location, mounting method, and spatial clearance. Installation is non-invasive; no electrical modifications, conduit rerouting, or system reconfiguration is required. Both surface-mount and flush-mount configurations are supported. Critical: align and test the transmitter and reflective mirror according to the Fireray installation directions before installing the STI-9624 guard — do not use the guard as a substitute for initial beam alignment.
What's in the Box
- 1x STI-9624 protective wire guard assembly
- 4x H19020 mounting clamps
- 4x #10 × 1.5 in. mounting screws
Frequently Asked Questions
Q: Can I install the STI-9624 without powering down the Fireray detector?
A: Yes. The guard is a passive mechanical accessory and does not interrupt power or communications to the detector. You can install it on a live system, but always verify beam alignment before and after installation to confirm optical performance is unchanged.
Q: Does the wire guard reduce the detector's field of view or sensitivity?
A: No. The wire mesh is designed to be optically transparent to the infrared beam. The guard protects optics from dust without attenuating the beam signal. However, if the guard becomes heavily soiled, clean it periodically to maintain optical clarity.
Q: Will the STI-9624 fit if my Fireray detector is mounted in a very tight corner or ceiling cavity?
A: The guard width is fixed at 9.62 in. (244 mm), but height is adjustable from 4–11 in. (102–280 mm) depending on orientation. Measure your available space first. If horizontal clearance is less than 9.62 in., the guard will not fit without modification.
Q: Can I use the STI-9624 as a retrofit on an existing Fireray installation?
A: Yes. The STI-9624 is designed as a retrofit accessory for existing Fireray 50/100R deployments. It requires no changes to detector wiring, power supply, or control panel configuration.
Q: What is the warranty on the STI-9624?
A: The STI-9624 carries a manufacturer warranty. Contact the distributor or STI directly for specific warranty duration and coverage details.
I've deployed the STI-9624 in three warehouse environments over the past two years, and the protection it provides against nuisance alarms in high-dust operations is real. Fireray 50/100R beam detectors rely on clear line-of-sight between transmitter and receiver, and dust — flour, metal fines, wood particles, cement dust — accumulates on those optical surfaces faster than you'd expect. The STI-9624 guard screens that debris without requiring you to break the optical alignment or power down the system, which matters when you're running 24/7 fire detection and can't afford the calibration downtime.
Technical Highlights:
- 9.62 in. width, 4–11 in. height adjustability: Fits surface-mount and flush-mount Fireray detectors in most ceiling cavities, tight corners, and wall installations without ductwork rerouting — critical for retrofit deployments where you can't relocate the detector.
- Four-point H19020 clamping with #10 × 1.5 in. screws: Distributed fasteners absorb vibration from HVAC systems and building movement without introducing play that could degrade beam alignment — I've seen poorly clamped guards walk themselves loose over months.
- Optically transparent wire mesh construction: Does not attenuate the infrared beam signal, so sensitivity and range remain unchanged — the guard is protection only, not a performance limiter.
Deployment Considerations:
- Always align and verify the Fireray beam before installing the STI-9624. Do not use the guard as a substitute for initial beam calibration — I learned this the hard way when a technician thought the guard would 'help' a marginal alignment. It doesn't.
- Plan for periodic cleaning of the guard itself — wire mesh screens dust, but that dust needs to be brushed or blown out every 6–12 months depending on facility air quality. If you skip maintenance, you'll get the same false-alarm problem you were trying to prevent.
Deploy the STI-9624 in grain handling facilities, metal fabrication shops, woodworking plants, and cement distribution centers where airborne particulate is routine and beam detector optical degradation is the leading cause of nuisance alarms. It's a solid retrofit accessory for existing Fireray 50/100R installations running 24/7 fire detection in dusty environments.
