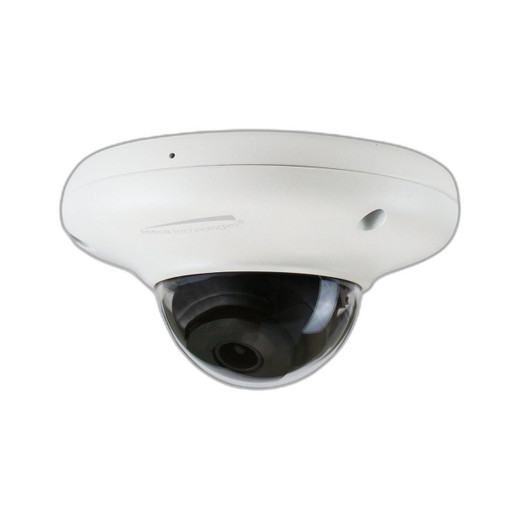

Speco Technologies O5P2 5MP Advanced Analytic IP Mini-Dome Camera
Overview
The Speco O5P2 is a compact 5MP IP mini-dome camera designed for both indoor and outdoor surveillance deployments. This PoE-powered camera combines native 5MP resolution with integrated analytics, true day/night imaging, and rugged IP67-rated construction. The O5P2 supports ONVIF Profile G and multiple video codecs including H.265 for bandwidth-efficient streaming, making it suitable for mid-scale deployments where analytics capability and power efficiency matter.
When this is the correct choice
Select the O5P2 when you need a compact, analytics-enabled camera for outdoor or semi-outdoor locations without requiring pan-tilt-zoom capability. This camera is ideal for facility entrances, parking areas, and perimeter monitoring where face detection and abandoned object detection add operational value. The fixed 2.8mm lens provides a moderately wide field of view suitable for general surveillance at 15–25 ft distances. PoE power delivery simplifies installation and eliminates the need for separate 12V supplies.
When to choose a different model
If your deployment requires continuous pan/tilt capability, optical zoom, or extreme wide-angle coverage, consider a PTZ or multi-sensor alternative. For applications demanding very long-distance IR illumination beyond typical mini-dome performance, or for applications where 5MP resolution is insufficient, evaluate higher-megapixel turret or bullet cameras. If your facility has no PoE infrastructure and prefers only 12V DC power, confirm power availability before specifying the O5P2.
Optics and field of view
The O5P2 is equipped with a fixed 2.8mm lens, providing a moderate horizontal field of view typical for entry monitoring and general area surveillance. The 1/2.7" CMOS sensor captures 5MP imagery at 2592×1944 pixel native resolution, delivering 30 fps at full resolution. This sensor size and lens combination are well-suited for indoor and outdoor fixed-position deployments where zoom adjustment is not required.
Imaging performance and low light
The O5P2 supports true day/night operation with integrated infrared illumination, enabling surveillance in complete darkness. True WDR (Wide Dynamic Range) processing handles scenes with mixed lighting conditions—such as entrances with bright outdoor light and dark indoor shadows—without image washout. IR night vision capability ensures continuous 24/7 monitoring even when ambient light is unavailable. The combination of true WDR and IR provides reliable image quality across typical security deployment scenarios.
Analytics and edge capabilities
Integrated analytics provide face detection and abandoned object detection at the edge, reducing the computational load on your VMS and enabling faster alarm response. These analytics run natively on the camera, eliminating the need for external processing servers for basic detection tasks. This capability is particularly valuable in entry monitoring and area-protection use cases where rapid event notification is critical.
Video encoding and streaming
The O5P2 supports H.265 (HEVC), H.264, and MJPEG compression. H.265 encoding reduces bandwidth and storage requirements by up to 50% compared to H.264 at equivalent quality, a significant advantage in bandwidth-constrained or high-density deployments. Multi-codec support ensures compatibility with legacy VMS platforms that may not yet support H.265, while modern systems benefit from improved compression efficiency.
Network and security
ONVIF Profile G compliance ensures broad compatibility with industry-standard VMS platforms, video management software, and third-party integrations. Network security features and signed firmware protect against unauthorized access and tampering. The camera supports standard TCP/IP networking and integrates seamlessly into existing IP surveillance infrastructure.
Environmental and durability ratings
IP67 rating provides complete dust protection and submersion resistance up to 1 meter for 30 minutes, making the O5P2 suitable for outdoor mounting and humid environments. Operating temperature range of -40°F to 140°F (-40°C to 60°C) covers most North American climates and moderate industrial environments. The rugged mini-dome design is less prone to impact damage than exposed turret styles. NDAA compliance meets federal procurement requirements for sensitive installations.
Power and installation notes

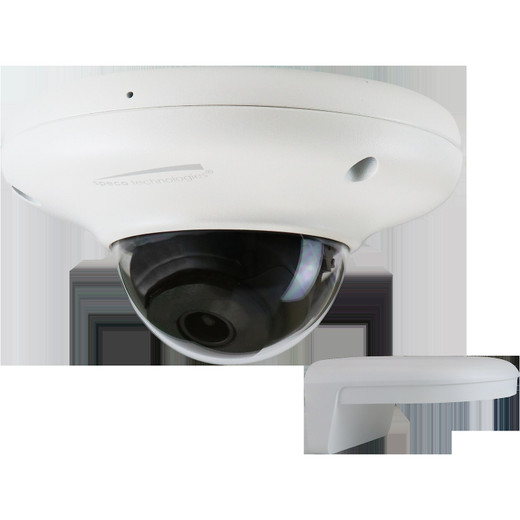

The O5P2 operates on PoE (802.3af) at 12V DC, drawing minimal power and simplifying cabling by combining data and power over a single Ethernet cable. A wallmount bracket is included, enabling rapid deployment on flat surfaces. Installation time is minimal—power up via PoE, configure network settings, and the camera is ready for commissioning. No additional power supplies or complex mounting hardware are required.
What is included
Package includes the Speco O5P2 camera unit and wallmount bracket. Contact us for complete package details and optional accessories such as cable clips, power injectors, or extended mounting hardware.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco O5P2 during planning phases for multi-site retail and facility deployments. This mini-dome is a practical choice when you need analytics-capable imaging in a compact form factor without the complexity of PTZ systems. The combination of 5MP resolution, edge-based face and object detection, and IP67 durability makes the O5P2 well-suited for entry monitoring and perimeter applications where both image quality and real-time alerting matter.
Technical Highlights:
- H.265 compression: Delivers 50% bandwidth reduction versus H.264, critical in high-density or bandwidth-limited deployments where you're managing dozens of simultaneous streams.
- Integrated analytics: Face detection and abandoned object detection execute at the edge, reducing VMS server load and enabling faster event-driven responses without external GPU processing.
- True WDR + IR: Combined day/night capability handles mixed-light entry scenes and provides full 24/7 coverage, even in completely dark environments.
Deployment Considerations:
- Fixed 2.8mm lens limits zoom flexibility—confirm field of view coverage at your target distance before final positioning.
- PoE power requirement mandates either PoE-capable network switches or inline injectors; verify infrastructure support during planning.
- Analytics accuracy (face detection confidence, object classification) is best validated in your specific lighting and scene geometry during pilot deployment.
The O5P2 represents solid value for security integrators specifying compact, PoE-powered mini-domes with native analytics. It trades zoom and extreme low-light performance for simplicity, durability, and edge processing efficiency. Pair it with a standards-compliant VMS supporting ONVIF Profile G, and you have a straightforward, maintainable system component.
Available in White.
