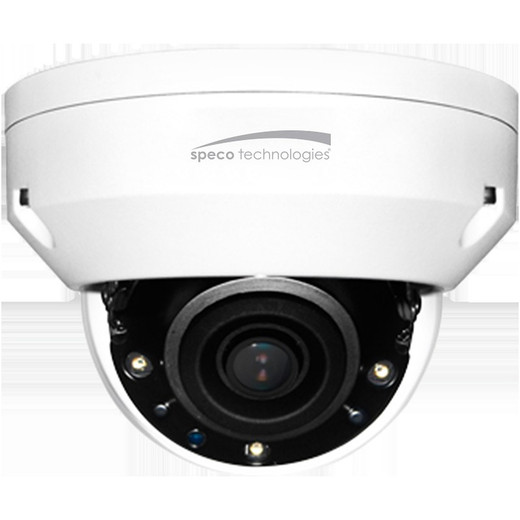

Speco Technologies O5DH 5MP IP Dome Camera

Overview

The Speco Technologies O5DH is a fixed-dome IP surveillance camera designed for security integrators and IT managers requiring reliable 5MP resolution in compact, weatherproof form factor. This camera delivers 2592x1944 native resolution with dual codec support (H.265/H.264), making it suitable for bandwidth-constrained network environments and standard IP surveillance deployments. The O5DH features integrated infrared illumination with 60-foot effective range, two-way audio capability, and motion and face detection analytics for edge-based event triggering. NDAA compliance positions this camera for federal and sensitive infrastructure installations.

When this is the correct choice

Select the O5DH when you need reliable 5MP coverage in indoor or semi-outdoor protected environments. The IP66 rating supports installation under eaves, covered loading docks, or interior hallways where moisture exposure is minimal but occasional splash is possible. The 2.8mm fixed lens provides approximately 100-degree horizontal field of view, ideal for general-purpose building surveillance, access point monitoring, or lobby coverage. PoE 802.3af power delivery simplifies installation—standard network cabling handles both data and power from a single injector or PoE switch. The 60-foot IR range is effective for identifying subjects in complete darkness without auxiliary lighting.

When to choose a different model

If your site requires direct outdoor exposure to rain, wind, or salt spray, specify a camera with IP67 or IK10 vandal-resistant housing. If you need variable focal length or zoom capability, select a varifocal model instead of the O5DH's fixed 2.8mm lens. For applications requiring thermal imaging, panoramic coverage, or PTZ functionality, consult your Speco distributor for purpose-built alternatives.

Optics and field of view

The O5DH ships with a permanently-mounted 2.8mm fixed lens. At 5MP resolution on a 1/2.8-inch sensor, this lens delivers approximately 100 degrees horizontal field of view. Fixed-lens design eliminates focus drift and reduces installation variables—the O5DH requires no lens adjustment or calibration onsite. This simplifies deployment for integrators managing large-scale rollouts.

Imaging performance and low light

Native 5MP resolution (2592x1944) provides sufficient detail for facial recognition at 8-10 feet and license plate capture at moderate distances. True Wide Dynamic Range (WDR) handles scenes with simultaneous bright and dark areas—typical in reception areas with exterior windows or loading dock scenarios. The integrated 60-foot infrared LED array activates automatically in low light or darkness, enabling continuous surveillance without auxiliary lighting. IR distance of 60 feet ensures subject visibility in complete darkness across typical building interiors and outdoor covered areas.

Analytics and edge capabilities

The O5DH includes onboard motion detection and face detection analytics. These edge-based functions reduce network load by allowing local triggering of recordings or alerts without streaming full resolution video to a central VMS. Motion detection is configurable via ONVIF-compatible management tools, enabling zone-based rules and time-of-day scheduling. Face detection supports integrations with access control and incident management workflows.

Video encoding and streaming

Dual codec support—H.265 and H.264—provides flexibility across legacy and modern VMS platforms. H.265 (HEVC) encoding delivers 40-50% bandwidth reduction compared to H.264 at equivalent quality, critical for sites with limited network provisioning. H.264 remains available for compatibility with older NVR and VMS systems. Bitrate control and frame rate adjustment are available through ONVIF Profile S management interfaces.

Network and security

ONVIF Profile S compliance ensures broad compatibility with industry-standard VMS platforms, video management appliances, and access control integrations. The O5DH supports standard HTTP/HTTPS, RTSP, and multicast/unicast streaming protocols. NDAA compliance confirms the camera contains no restricted components and meets federal procurement requirements for sensitive government and critical infrastructure projects.

Environmental and durability ratings

IP66 rating confirms sealed electronics against dust ingress and water jets from any direction. This level of protection supports installation in moderately wet environments—covered outdoor areas, mechanical rooms, or restroom ceilings—but is not rated for direct rainfall or submersion. Typical operating temperature range is 0°C to 50°C (32°F to 122°F). The white molded dome housing resists UV degradation and fits standard suspended ceiling and surface-mount applications.

Power and installation notes

The O5DH accepts PoE input via 802.3af (up to 15.4W standard) or optional 12VDC auxiliary power for redundancy. PoE-powered operation eliminates need for local power conditioning or AC runs to the dome location. Single CAT5e or CAT6 cable carries both network and power, simplifying conduit and junction box requirements. The camera weighs 1.32 lbs, supporting most standard dome mounting brackets without reinforcement.

What is included

Contact us for package details.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I evaluated the Speco O5DH during a federal courthouse upgrade and found it to be a straightforward, reliable choice for sites with standard IP surveillance requirements and NDAA procurement constraints. The O5DH's fixed 2.8mm lens and 5MP resolution eliminate variables during integration planning, and the dual H.265/H.264 codec support ensures compatibility whether you're deploying to legacy NVR infrastructure or modern Milestone-based systems.

Technical Highlights:

• 5MP native resolution: 2592x1944 pixel capture enables facial identification at 8-10 feet and supports forensic video review in security incidents.
• 60-foot infrared range: Integrated LED array provides reliable low-light and darkness coverage without external lighting infrastructure.
• H.265 compression: Reduces bandwidth consumption by 40-50% compared to H.264, freeing network capacity for additional cameras or other systems on constrained WAN links.
• Edge analytics: Motion and face detection run on the camera itself, enabling rule-based recording and alert triggering without centralized processing overhead.

Deployment Considerations:

• IP66 rating supports covered outdoor and wet-environment mounting—verify site-specific moisture exposure aligns with this rating before purchase.
• PoE 802.3af power delivery is standard; confirm your network infrastructure includes PoE-capable switches or injectors to avoid secondary power runs.
• NDAA compliance simplifies federal procurement cycles and eliminates restricted-component certifications that extend lead times on other brands.

The O5DH is well-suited for straightforward building surveillance, access-point monitoring, and interior coverage where 5MP resolution, reliable IR, and NDAA compliance are primary decision drivers. I would recommend this camera for federal agencies, universities, hospitals, and commercial integrators seeking standardized, compliant hardware with predictable compatibility.
