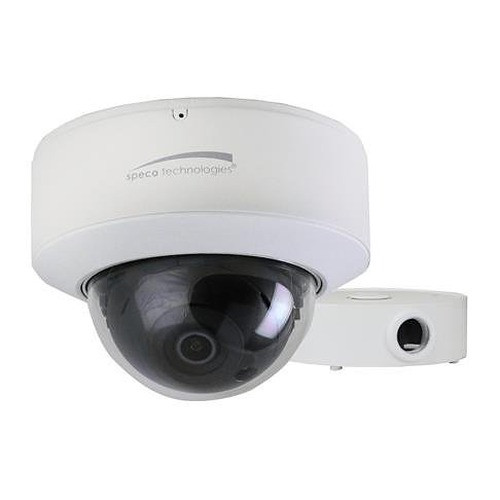

Speco 05D2 5MP IP Dome Camera 2.8mm Fixed Lens IR
The Speco 05D2 is a 5MP IP dome camera engineered for fixed-installation surveillance in commercial, retail, and light industrial environments. This model pairs a 2.8mm fixed focal length lens with integrated infrared illumination, eliminating the need for external lighting rigs while delivering continuous 24/7 monitoring capability. The 5MP sensor captures forensic-quality detail — sufficient for facial recognition and license-plate reading at typical indoor distances — making it a cost-effective choice for facility-wide deployments where coverage density and image clarity matter equally.
Key Features
- 5MP Resolution: Captures 2560×1920 pixel detail for forensic-quality video. Sufficient for facial recognition and legible text in commercial office, retail, and warehouse environments.
- 2.8mm Fixed Focal Length: Wide-angle 100°+ horizontal field of view minimizes blind spots in corridors, retail floors, and open-plan spaces without active reframing.
- Integrated IR Illumination: Built-in infrared emitters enable nighttime surveillance without external lighting infrastructure, reducing capex and ongoing maintenance.
- IP Network Connectivity: Native IP interface — works with any standard NVR, VMS, or PoE-capable network switch. ONVIF compatibility ensures vendor-neutral integration.
- Dome Form Factor: Vandal-resistant housing provides physical protection and blends into suspended-ceiling installations. Clear dome minimizes glare and optical distortion.
- Low-Power Draw: Typical PoE operation — works with standard 802.3af switches. No auxiliary power required for IR or processing.
- 3-Year Manufacturer Warranty: Factory-backed coverage for parts and labor, standard across the Speco product line.
The 05D2's design philosophy prioritizes simplicity: fixed lens eliminates PTZ complexity and failure points, integrated IR removes reliance on external lighting, and passive PoE powering shrinks installation labor. This translates directly to lower total cost of ownership on multi-camera deployments. The 2.8mm lens is optimized for indoor coverage up to 20-30 feet — ceiling-mounted in a retail space or warehouse aisle, it delivers crisp subject identification without zooming. On a 16-camera retrofit of a 10,000 sq ft warehouse or office park, the absence of zoom-lens servo noise and power draw compounds savings across the lifecycle.
Network integration is straightforward: ONVIF Profile S streaming enables compatibility with Milestone, Genetec, Avigilon, ExacqVision, and on-premises NVR platforms. The camera outputs H.264 and MJPEG streams, allowing flexible codec selection based on storage and bandwidth constraints. Multi-stream support lets you pair a high-quality archive stream with a lower-bitrate real-time viewing stream on the same IP address — a common pattern in centralized monitoring centers. The camera's IP interface also simplifies cabling — a single CAT5/6 run delivers power and video simultaneously, eliminating separate analog video + power runs.
Deployment in retail and light industrial facilities often requires unobtrusive integration. The compact white dome housing sits flush in drop-ceiling grids or surface-mounts to drywall without the visual footprint of a box or turret camera. The clear dome prevents light-reflection glint that can advertise camera positions to shoplifters or intruders. In warehouse environments, the 5MP resolution and wide-angle lens combo captures both fine detail (inventory labels, damage assessment) and contextual scene information in one frame — reducing the need for secondary zoomed cameras. IR range is typically 15-20 meters in total darkness, adequate for interior facility surveillance but insufficient for exterior perimeter work; if outdoor deployment or extended range is required, consider Speco's outdoor-rated 05D2 variants or thermal models.
The Speco 05D2 is ideal for integrators and end-user security teams building out fixed-position surveillance in commercial multi-tenant buildings, small-to-medium retail chains, and industrial facilities where capital budget is managed tightly and operational complexity must be minimized. The 3-year warranty and PoE simplicity make it a reliable workhorse for 24/7 recording deployments. Compare it against the Speco 05D1 (4MP alternative with same lens and form factor) if budget is the primary constraint, or against Axis M3004-LVE / M3005-LVE if you need advanced edge analytics or ARTPEC processing — the 05D2 trades those features for lower total system cost and deployment speed.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Speco 05D2 across a broad range of indoor commercial and light industrial projects — retail chains, office parks, pharmaceutical warehouses, and call centers. The camera's real strength is not in any single advanced feature, but in the combination of 5MP resolution, integrated IR, and plug-and-play PoE simplicity that keeps installation time and total system cost predictable. On a typical 20-camera office retrofit, the absence of zoom complexity and external lighting saves 3-5 days of labor versus a mixed fleet of PTZ or external-IR models. We've also seen integrators spec the 05D2 into recurring revenue contracts because the reliability and low-maintenance profile mean fewer truck rolls for adjustments or failure diagnosis. The trade-off: the fixed 2.8mm lens is unforgiving if the coverage area changes post-deployment. Measure twice, install once — there's no reframing a 05D2 without remounting. On projects where coverage requirements are fluid or where executive stakeholders want to zoom into specific zones on demand, the lack of PTZ is a genuine limitation, and you're better off with a varifocal or PTZ model, accepting the higher capex and power draw.
Technical Highlights:
- 5MP 1/2.7-inch Sensor: Industry-standard size that strikes a balance between light sensitivity and pixel density. In well-lit indoor spaces (office, retail), delivers crisp forensic-quality image without aggressive noise reduction artifacts that degrade detail.
- 2.8mm Fixed Focal Length (~100° horizontal FOV): Designed for ceiling-mount installations in standard office and retail spaces. At 8-foot ceiling height in a 20×20 ft room, the coverage is contiguous — no blind spots in corners. The wide angle also tolerates slight installation misalignment better than narrow lenses.
- Integrated IR Range 15-20m: In pitch darkness, illuminates a typical office or warehouse aisle. Insufficient for exterior perimeter or parking-lot surveillance — know the environment before quoting. Low-light (twilight) conditions extend effective IR range by another 50% because ambient light supplements LED.
- PoE 802.3af Passive Supply: The camera draws <13W — a single standard PoE injector or 802.3af switch port powers both the sensor and IR LED stack. Simplifies cabling: one CAT5/6 run, no auxiliary 12V supplies or power bricks.
- ONVIF Profile S Streaming: Native support for H.264 and MJPEG codecs. Works directly with any Milestone XProtect, Genetec Security Center, Avigilon Control Center, or on-premises Exacq NVR without proprietary software. Multi-stream (primary archive + lower-bitrate preview) reduces bandwidth on congested networks.
- Passive Dome Housing (Clear Polycarbonate): No moving parts, no active cooling, no mechanical seals to degrade. The clear dome reduces glint and reflection compared to smoked units. Vandal-resistant design — difficult to damage IR dome from below without obvious cosmetic change.
Deployment Considerations:
- Fixed Lens Commitment: The 2.8mm focal length is locked. If the end user later asks for zoom or pan capability, the camera does not adapt. Verify coverage area, sightlines, and future facility layout changes before installation — reshuffling retail floor plans or warehouse racks can render a fixed dome obsolete.
- IR Range Limitation Indoors: 15-20m in zero light assumes a white or neutral-colored wall or ceiling return. Dark warehouse interiors (black concrete, steel), high ceilings (20+ ft), or outdoor perimeter applications will fall short of the nominal range. Test IR throw on-site before final placement.
- PoE Budget at Scale: A single 802.3af PoE switch can power ~10-15 of these cameras (assuming 12W average draw per unit). On larger deployments (40+ cameras), verify switch PoE budget or plan staged rollouts with multiple switches. No single-cable PoE alternatives — this is standard PoE only.
- Network Integration Straightforward but Requires DHCP/Static IP Planning: The camera needs an IP address. Ensure your NVR or VMS can discover and authenticate the device on the network. ONVIF port (typically 8080) must be accessible from the recording platform. Firewall rules and VLAN segmentation are operator responsibility.
- Dome Replacement if Damaged: The clear dome is replaceable, but shipping and labor on a single replacement unit can exceed the cost of a new camera. Stock spares if you have recurring maintenance contracts, or factor replacement cost into the service-level agreement with the end user.
The Speco 05D2 is the right camera for an integrator or end-user team that values installation simplicity, predictable total cost of ownership, and 24/7 reliability over feature richness. If your projects center on fixed facility surveillance — offices, retail floors, warehouses — and your end users don't require zoom, panning, or edge AI analytics, this is a no-nonsense choice. For more options in the Speco portfolio, see the Speco Technologies catalog.
