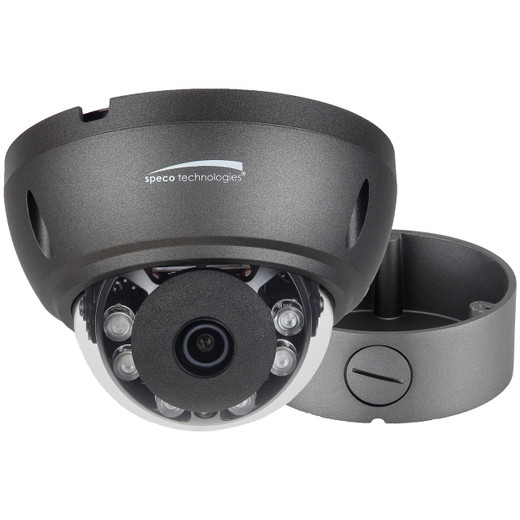

Speco Technologies HTD5TG 5MP HD-TVI Dome Camera
Overview
The Speco Technologies HTD5TG is a 5MP HD-TVI dome camera designed for reliable surveillance in fixed indoor and outdoor deployments. This model delivers native 5-megapixel resolution through HD-TVI transmission, eliminating the need for IP infrastructure while maintaining high-quality image capture. The grey housing and included junction box streamline installation, while TAA compliance ensures procurement eligibility for federal and GSA-managed projects. The HTD5TG is engineered for integrators and installers seeking a straightforward analog-transmission alternative that does not compromise on resolution.
When this is the correct choice
Select the HTD5TG when your system architecture centers on HD-TVI infrastructure, existing coaxial cabling, or when analogue transmission is mandated by site design. This camera is ideal for facilities requiring TAA-compliant equipment without the complexity of IP management. It performs well in controlled lighting environments and delivers sufficient low-light performance through integrated IR. Choose this model for retrofit projects where HD-TVI DVRs are already deployed, or for new installations where coaxial backbone investment is more cost-effective than network infrastructure.
When to choose a different model
If your deployment requires IP-native transmission, edge analytics, dynamic streaming optimization, or advanced cybersecurity protocols, evaluate IP camera alternatives. Do not select the HTD5TG if your facility demands wireless connectivity, cloud integration, or ONVIF-based VMS ecosystems. Projects requiring extensive multi-sensor fusion, panoramic coverage, or PTZ capability should look to purpose-built alternatives. Organizations with zero-trust network mandates or requiring firmware signing and secure boot should confirm HD-TVI limitations before procurement.
Optics and field of view
The HTD5TG features a fixed 2.8mm lens, delivering a wide horizontal field of view suitable for general-area surveillance in lobbies, hallways, and open floor plans. The 2.8mm focal length balances situational awareness with subject detail at typical indoor surveillance distances. This fixed-lens design eliminates motorized focus complexity and reduces installation calibration time. For applications requiring varifocal adjustment or telephoto reach, specify an alternative model.
Imaging performance and low light
Native 5MP resolution ensures sufficient pixel density for facial recognition, license plate capture, and object identification tasks at typical mounting heights. The HTD5TG integrates infrared illumination for zero-light operation, extending surveillance capability into complete darkness. IR operation maintains colour-to-monochrome switchover for seamless day/night transitions. Exact IR range, minimum illumination thresholds, and WDR capability are subject to lighting conditions and lens focal length; confirm exact performance parameters with your distributor or through field validation in your target environment.
Analytics and edge capabilities
The HTD5TG operates as a transmission-focused device without integrated edge analytics, motion detection firmware, or on-board video intelligence. All event detection and analytics processing must occur at the DVR or backend system level. This architecture simplifies camera firmware maintenance but requires sufficient processing capacity on your recording platform.
Video encoding and streaming
HD-TVI transmission delivers 5MP video natively over standard coaxial cabling without encoding overhead or bandwidth negotiation. Video rate, resolution scaling, and transmission parameters are governed by the connected HD-TVI DVR. The HTD5TG does not support H.264, H.265, MJPEG, or IP streaming protocols.
Network and security
As an analog-transmission device, the HTD5TG does not maintain IP connectivity, network credentials, or firmware update protocols. Traditional analog camera security considerations apply: protect coaxial runs from physical tampering and ensure DVR-level access controls. No ONVIF support, no 802.1X authentication, and no cloud integration are available on this model.
Environmental and durability ratings
The HTD5TG grey housing is rated for indoor and outdoor mounting. Exact IP rating, IK vandal-resistance rating, and operating temperature range should be confirmed with the manufacturer datasheet or your distributor. Dome construction provides moderate protection against incidental contact and environmental debris.
Power and installation notes
The HTD5TG is powered via standard 12VDC coaxial line or dedicated power supply. Junction box is included, reducing on-site wiring complexity. Fixed dome mount accommodates ceiling or wall installation. Coaxial BNC connectors ensure rapid integration with HD-TVI DVR infrastructure. No PoE operation.
What is included
- Speco HTD5TG 5MP HD-TVI dome camera
- Junction box
- Grey housing
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the HTD5TG during a municipal facility retrofit where existing HD-TVI infrastructure was already in place across multiple buildings. The transition from lower-resolution analog to 5MP HD-TVI without replacing the DVR backbone was operationally straightforward and cost-justified. The camera's simplicity—fixed lens, integrated IR, coaxial transmission—means fewer integration variables and lower field support overhead compared to IP alternatives.
Technical Highlights:
- 5MP HD-TVI native resolution: Delivers forensic-quality image capture over standard coaxial infrastructure without IP protocol overhead.
- Integrated IR and grey dome housing: Immediate low-light operation and discrete appearance in modern facility aesthetics.
- Included junction box: Reduces installation labour by pre-staging wiring transition points.
- TAA compliance: Eligible for federal procurement and GSA schedule integration.
Deployment Considerations:
- Confirm your DVR supports 5MP HD-TVI input; older HD-TVI recorders may require firmware updates or hardware upgrades to decode this resolution.
- HD-TVI transmission distance is coaxial-dependent; validate cable runs do not exceed manufacturer specifications for your environment (typically 400–500 metres for 5MP).
- This camera is transmission-only; all motion detection, analytics, and event logic must operate at the DVR level—ensure your recording platform has sufficient CPU and storage bandwidth for 5MP ingest.
The HTD5TG is a solid, low-complexity choice for facilities committed to HD-TVI architecture. It eliminates the architectural overhead of IP management while delivering 5MP resolution and native IR capability. I recommend it for retrofit deployments and new builds where coaxial infrastructure is already planned or cost-justified.
