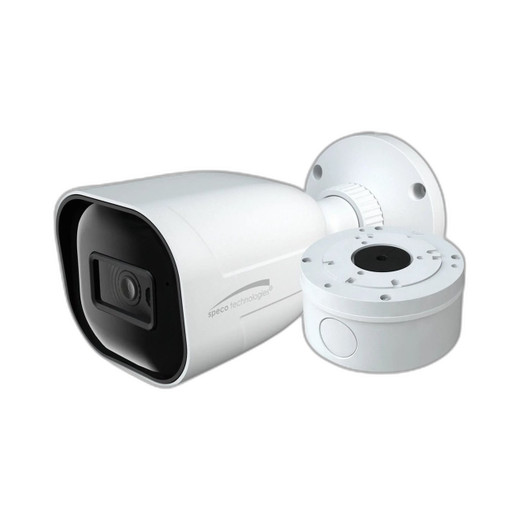

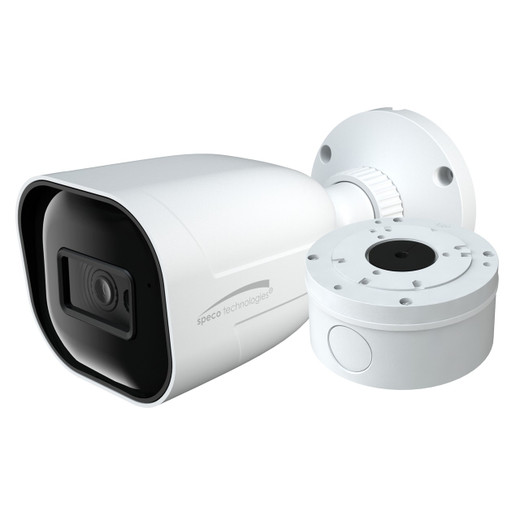

Speco Technologies V5B2 5MP HD-TVI Bullet Camera
Overview
The Speco Technologies V5B2 is a 5MP HD-TVI bullet camera designed for fixed outdoor surveillance installations. This model delivers native 2592×1944 resolution at 20 fps, combining infrared night vision with integrated wide dynamic range (WDR) to capture usable video across challenging lighting conditions. The V5B2 includes a junction box for streamlined installation and operates across a temperature range of -22°F to 122°F, making it suitable for varied North American climates. IP67-rated construction ensures dust and water resistance for exposed mounting scenarios.
When this is the correct choice
Select the V5B2 when you need a fixed-focal-length HD-TVI camera with IR capability for perimeter monitoring, parking lot coverage, or building exterior surveillance. The included junction box reduces field wiring complexity. This camera is appropriate for integrators building TVI-based systems where analog transmission over coaxial cable is preferred or where network infrastructure is limited. The 5MP resolution and fixed 2.8mm lens suit applications requiring moderate-distance wide coverage without zoom adjustment.
When to choose a different model
If your deployment requires remote focus adjustment, pan-tilt-zoom capability, or network-based IP streaming, select a varifocal or PTZ alternative. For applications demanding H.265 compression, edge analytics, or ONVIF interoperability, consider an IP camera instead. The V5B2's 20 fps maximum frame rate may be limiting for high-motion environments requiring 30 fps or higher capture rates.
Optics and field of view
The V5B2 is equipped with a fixed 2.8mm lens. This focal length provides a wide horizontal field of view suitable for general surveillance zones, hallways, and broad exterior coverage. The fixed lens eliminates the need for motorized focus adjustments post-installation, simplifying deployment and reducing mechanical points of failure.
Imaging performance and low light
Resolution is delivered at 5MP with a 1/2.7" CMOS sensor, producing images at 2592×1944 pixels. The camera incorporates infrared (IR) night vision, allowing surveillance to continue after dark without external lighting. Wide Dynamic Range (WDR) processing balances bright and dark areas in a single frame, improving detail recovery in mixed-light scenarios such as facility entrances and backlit outdoor zones. At 20 fps, the V5B2 captures smooth motion for standard surveillance tasks.
Analytics and edge capabilities
The V5B2 is a traditional analog HD-TVI camera and does not include on-board video analytics, object detection, or edge processing capabilities. Analytics must be performed at the DVR/NVR level or in backend VMS software.
Video encoding and streaming
As an HD-TVI camera, the V5B2 transmits compressed analog video over standard coaxial cable. No IP networking, encoding standards, or streaming protocols apply to this model. Video quality and transmission distance are managed by TVI receiver equipment (DVR/NVR) at the head end.
Network and security
The V5B2 is not a networked device and does not support ONVIF, RTSP, or IP-based protocols. Network security considerations do not apply. The camera operates as part of a closed-circuit analog surveillance system.
Environmental and durability ratings
The camera is rated IP67, meaning it resists dust ingress completely and can withstand temporary immersion in water up to 1 meter for 30 minutes. This rating supports outdoor wall or soffit mounting in rain, snow, and dust-prone environments. Operating temperature range is -22°F to 122°F, covering most North American climates including freezing winters and hot summers.
Power and installation notes
The V5B2 operates on DC 12V power. An AC/DC power adapter must be supplied separately. The included junction box facilitates field termination and reduces installation labor at the camera head. Coaxial cabling (RG59 or RG6) runs from the camera to a TVI-compatible DVR or hybrid receiver at the operations center. Power is delivered either through a separate 2-conductor cable or integrated power/video cables, depending on the selected power harness.
What is included
- Speco Technologies V5B2 5MP HD-TVI bullet camera head
- Junction box (wall/soffit mount bracket)
- Camera body weighs 1.87 lbs
Contact us for complete accessory lists, power supply recommendations, and cabling specifications.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Speco V5B2 during planning for a multi-site exterior security refresh. This is a straightforward HD-TVI camera well-suited to analog surveillance deployments where coaxial infrastructure is already in place. The included junction box is a practical touch that reduces field fabrication time on rooftop and soffit installations.
Technical Highlights:
- 5MP native resolution: 2592×1944 pixel capture delivers sufficient detail for facial and license plate work at moderate distances (15–30 feet depending on lens and lighting).
- Integrated IR: Day/night operation with infrared illumination ensures 24/7 surveillance without supplemental lighting.
- WDR processing: Wide Dynamic Range mitigates washout on backlit shots and improves usability in high-contrast zones.
- IP67 durability: Full dust and water resistance rated for exposed mounting in rain and freeze cycles.
Deployment Considerations:
- Verify that your DVR or NVR supports HD-TVI input; older analog-only hardware will not accept this signal without a converter.
- Plan coaxial runs carefully—TVI can transmit reliably up to 300+ meters depending on cable gauge, but longer runs may require re-clocking or booster amplifiers.
- The fixed 2.8mm lens is not adjustable after installation; confirm field of view requirements before mounting.
The V5B2 is a reliable choice for integrators building or extending TVI-based systems. Solid imaging performance, practical inclusion of the junction box, and IP67 sealing make this camera efficient for outdoor surveillance where traditional coax transmission is acceptable.
Available in White.
