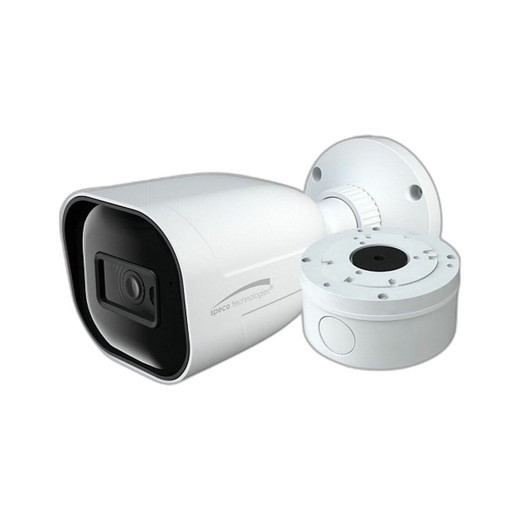

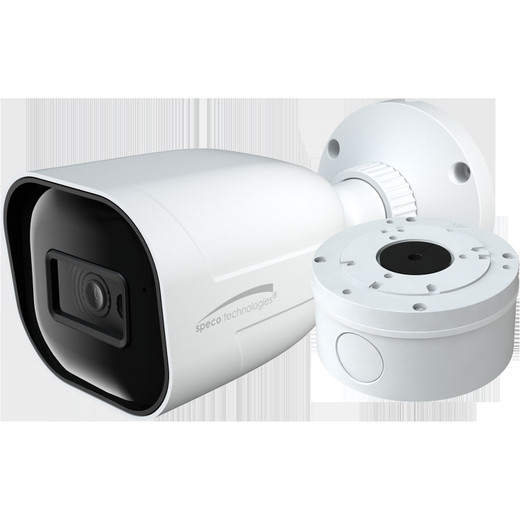

Speco Technologies VLB9 2MP HD-TVI Bullet Camera
Overview
The Speco Technologies VLB9 is a compact 2MP HD-TVI bullet camera designed for outdoor surveillance installations. This camera delivers 1920x1080 resolution at 30fps using a 1/2.9" CMOS sensor, making it suitable for general-purpose security deployments where cost-effectiveness and straightforward HD-TVI integration are priorities. The VLB9 includes a fixed 2.8mm lens and an integrated junction box for simplified field installation, reducing wiring complexity on the job site.
When this is the correct choice
Choose the VLB9 when you need a reliable, budget-conscious HD-TVI camera for outdoor perimeter monitoring, parking areas, or building entry points. Its IP67 rating and compact bullet form factor make it well-suited for wall-mounted installations where space is limited. The included junction box is particularly valuable on jobs where pre-fabricated cable runs and field termination reduce labor costs. This camera is ideal for integrators standardizing on HD-TVI infrastructure or upgrading analog systems where HD-TVI hybrid DVRs are already in place.
When to choose a different model
If your project requires higher resolution (4MP or above), motorized zoom capabilities, or advanced edge analytics, consider alternative offerings. The VLB9's fixed 2.8mm lens and 2MP sensor are not suitable for applications demanding identification-level detail at distance. Projects requiring PoE power delivery or IP-native architectures should evaluate IP camera alternatives. Environments with extreme vibration or high-impact vandalism risk may benefit from cameras with higher IK ratings and more rugged construction.
Optics and field of view
The VLB9 features a fixed 2.8mm focal length lens, delivering a moderate field of view appropriate for mid-range surveillance coverage. This fixed-lens design eliminates focus drift and reduces on-site commissioning time compared to varifocal models. The 2.8mm specification is a common field standard, ensuring integrators and technicians understand coverage patterns and can predict installation outcomes with confidence.
Imaging performance and low light
Operating at 30fps with a 1/2.9" CMOS sensor, the VLB9 captures smooth, full-motion video suitable for forensic review and real-time monitoring. Built-in WDR (Wide Dynamic Range) processing addresses backlit scenes common in outdoor surveillance, such as bright skies behind entry doors or reflective surfaces. This capability helps balance exposure across mixed lighting conditions without requiring manual aperture adjustment. The camera includes integrated IR (infrared) illumination for 24/7 operation, enabling effective surveillance in complete darkness.
Analytics and edge capabilities
The VLB9 is a fundamental surveillance camera without on-board video analytics or edge processing. It captures and transmits raw HD-TVI video to the DVR for recording and playback. Integration with advanced features such as motion detection, object tracking, or behavioral analytics depends entirely on DVR-side capabilities and VMS software.
Video encoding and streaming
As an HD-TVI camera, the VLB9 uses coaxial cable transmission native to HD-TVI standards. Video is encoded at the DVR and does not support independent H.264, H.265, or MJPEG compression at the camera level. This architecture simplifies cabling (single coax run) and avoids network bandwidth concerns, making it well-suited for analog-to-HD upgrade paths where existing coaxial infrastructure can be leveraged.
Network and security
The VLB9 operates on a closed HD-TVI coaxial network architecture and does not connect directly to Ethernet or IP networks. No network credentials, ONVIF compliance, or cloud features apply. Security is maintained through physical access control to the DVR and coaxial transmission lines, with no exposure to remote network exploits.
Environmental and durability ratings
The VLB9 carries an IP67 rating, confirming protection against dust ingress and temporary water immersion up to 1 meter depth. Operating temperature range of -22°F to 122°F (-30°C to 50°C) permits deployment in temperate and moderate cold climates. The camera's white housing and compact bullet profile suit wall mounting on building facades, soffit, or pole structures. The IP67 rating and temperature range make this camera suitable for outdoor perimeter and semi-protected indoor applications.
Power and installation notes
The VLB9 operates on DC 12V power, supplied via a separate two-conductor cable run alongside the coaxial video line. The included junction box simplifies field termination of power and coax, reducing errors and installation time. Ensure adequate 12V power supply capacity when planning multi-camera deployments. The bullet housing permits both vertical and horizontal mounting orientations; bracket and fastening hardware are recommended for permanent installations.
What is included
- Speco Technologies VLB9 Camera body with integrated IR illuminator
- 2.8mm fixed focal length lens (pre-installed)
- Junction box for power and video termination
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco VLB9 across several HD-TVI upgrade projects, and it delivers solid value for straightforward outdoor surveillance where legacy coaxial infrastructure is already installed. The camera's 2MP sensor and fixed 2.8mm lens are well-matched to perimeter monitoring, and the included junction box saves meaningful labor on rough-in and termination. The VLB9 is not a feature-rich camera, but that simplicity translates to reliability and predictable performance on the job.
Technical Highlights:
- HD-TVI Native: Single-coax transmission eliminates Ethernet complexity; works directly with existing analog DVR infrastructure upgrades.
- IP67 Durability: Proven weatherproofing for outdoor mounting; temperature range supports temperate deployment without enclosure.
- 30fps at 1920x1080: Full-motion video capture and WDR processing ensure usable footage in mixed light conditions typical of entry points and parking areas.
Deployment Considerations:
- Confirm 12V power supply capacity before commissioning multiple cameras; undersized supplies cause voltage sag and image quality degradation across the system.
- The fixed 2.8mm lens requires careful site surveys to confirm adequate coverage; varifocal models offer more flexibility on retrofit jobs where coverage assumptions change mid-project.
The VLB9 is a straightforward, cost-effective choice for integrators committed to HD-TVI standards. It performs its intended role without unnecessary complexity, and the included junction box addresses a genuine installation pain point. For budgeted outdoor surveillance where feature depth is not a requirement, this camera delivers measurable value.
