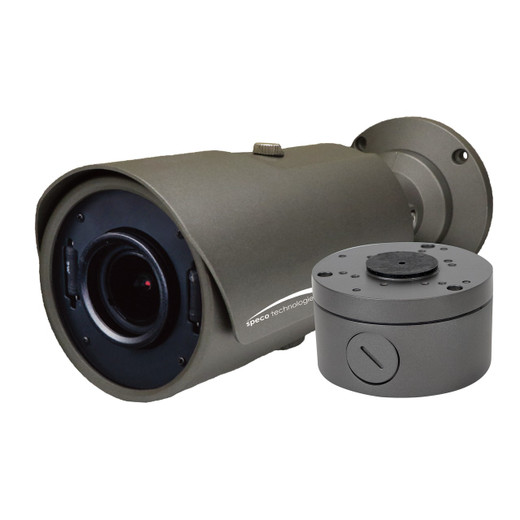

Speco Technologies HTI70TM 2MP HD-TVI Intensifier Bullet Camera
Overview
The Speco Technologies HTI70TM is a 2MP HD-TVI intensifier bullet camera engineered for challenging low-light surveillance environments. Built with grey housing and a motorized 2.8-12mm varifocal lens, the HTI70TM delivers flexible field-of-view adjustment across deployments without requiring lens changes. The included junction box simplifies installation by providing integrated connection management, reducing on-site wiring complexity. This model carries TAA (Trade Agreements Act) compliance, making it suitable for U.S. government and federal procurement requirements.
When this is the correct choice
The HTI70TM is the right choice for integrators and facilities needing reliable surveillance in extremely low-light or night-time environments where standard 2MP cameras fall short. The intensifier technology amplifies available light, making it ideal for parking areas, dark perimeters, loading docks, and outdoor sites with minimal ambient illumination. The motorized varifocal lens eliminates the need for manual lens adjustment, reducing service calls and enabling remote field-of-view optimization. TAA compliance makes this model mandatory for federal, state, and municipal procurement where Buy American provisions apply.
When to choose a different model
If your deployment requires higher resolution (4MP or above), fixed focal-length simplicity, or primarily daytime monitoring with occasional night capability, evaluate non-intensifier alternatives. Intensifier technology is optimized for near-total darkness; if sufficient ambient lighting exists (street lamps, facility lighting), standard low-light or infrared cameras may deliver equivalent results at lower cost. For PTZ (pan-tilt-zoom) capability or audio integration, confirm model support before committing.
Optics and field of view
The motorized 2.8-12mm varifocal lens provides flexible field-of-view adjustment from wider scenes (2.8mm) to telephoto coverage (12mm), allowing remote focus and zoom without physical site revisits. Motorized control enables integrators to fine-tune framing after installation, reducing rework time and supporting multiple coverage scenarios from a single camera position. The lens design is engineered to work seamlessly with the intensifier sensor, ensuring optimal light transmission and image sharpness across the zoom range.
Imaging performance and low light
The HTI70TM employs intensifier tube technology, which electronically amplifies available light rather than relying solely on infrared illumination. This approach is superior in environments with trace ambient light (starlight, distant street lamps, or reflected moonlight) where infrared-only cameras would require high power consumption and visible glow. The 2MP sensor resolution (1920 × 1080) provides sufficient detail for facial recognition, license plate capture, and object identification in low-light conditions. Intensifier performance is particularly effective in outdoor perimeter monitoring, port and logistics facilities, and dark parking structures.
Analytics and edge capabilities
Confirm with Speco technical documentation for onboard analytics support (motion detection, object tracking, or counting). HD-TVI format supports direct connection to compatible DVRs with integrated analytics; edge processing capabilities depend on recording device support rather than the camera itself.
Video encoding and streaming
The HTI70TM delivers HD-TVI (HD Transport Video Interface) output, a dedicated coaxial protocol optimized for low-latency, high-bandwidth video transmission over standard RG59/RG6 cabling. HD-TVI eliminates the IP networking overhead, making it ideal for analog-to-HD migration projects. The 2MP resolution streams at standard broadcast frame rates (30 fps); confirm specific bitrate and compression profile with your DVR or hybrid recorder specifications.
Network and security
As an HD-TVI camera, the HTI70TM does not use IP networking, eliminating network security vectors common to IP cameras. The coaxial connection is point-to-point, reducing attack surface and simplifying cybersecurity compliance for facilities operating closed-circuit surveillance systems. This architecture is advantageous for high-security sites, correctional facilities, and environments with restricted network policies.
Environmental and durability ratings
The grey housing is engineered for outdoor and semi-outdoor deployment. Confirm IP rating (weatherproofing) and temperature operating range with the technical datasheet before specifying for extreme climate regions. The bullet form factor and compact design support wall and eave mounting in exposed environments.
Power and installation notes
The HTI70TM operates on 12V DC, typical for HD-TVI bullet cameras. The included junction box provides integrated power distribution and signal management, reducing visible wiring and improving installation speed. Standard BNC connectors support rapid coaxial connections to DVR or hybrid recorders. Motorized lens operation requires 12V control line; verify your DVR or lens controller supports motorized zoom/focus commands.
What is included
- Speco Technologies HTI70TM 2MP intensifier bullet camera body
- 2.8-12mm motorized varifocal lens (factory installed)

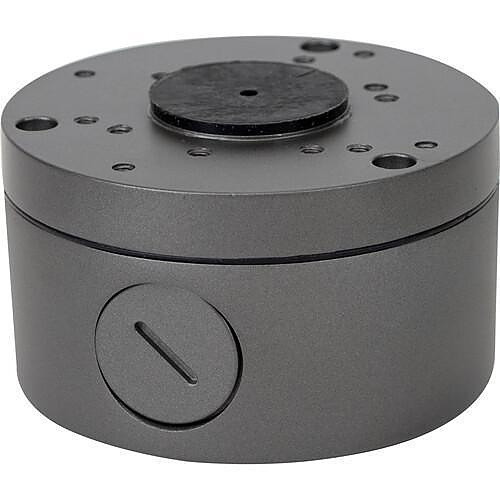

- Junction box for power and signal distribution
- Grey housing
- 12V DC power connector and control harness
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Speco HTI70TM in perimeter security and logistics deployments where standard cameras struggle after sunset. The intensifier technology proved superior to infrared-only alternatives in mixed-ambient environments—areas with distant street lamps or reflected moonlight where the sensor amplifies existing light rather than overwhelming it with IR glow. The motorized lens is a practical advantage; integrators can adjust zoom and focus remotely before finalizing mounting hardware, reducing site revisits and rework costs.
Technical Highlights:
- Intensifier Sensor: Amplifies available light for clear night vision without high-power infrared, reducing power draw and glow signature in sensitive security applications.
- Motorized 2.8-12mm Lens: Provides flexible zoom control and remote focus adjustment, enabling coverage optimization without manual lens changes.
- HD-TVI Output: Coaxial signal eliminates IP networking complexity and cyber vectors, simplifying integration into existing analog DVR infrastructure or hybrid recorders.
- TAA Compliance: Meets U.S. federal procurement requirements, opening access to government and institutional contracts.
Deployment Considerations:
- Verify your recording device supports motorized lens control; standard DVRs may require upgraded firmware or a separate lens controller.
- Position the camera to capture ambient light (reflected moonlight, distant lamps) for optimal intensifier performance; mounting in total-darkness enclosed spaces may require supplementary IR or visible light.
- The included junction box streamlines installation—pre-stage power and control connections before mounting to reduce conduit runs and labor time.
For integrators transitioning customers from infrared-heavy systems to lower-power, stealthier night surveillance, the HTI70TM closes a real capability gap. It is not a universal replacement for IR cameras, but in outdoor perimeter and open-area monitoring, the intensifier advantage is tangible. The motorized lens and TAA compliance make it a solid choice for mid-tier federal projects and private security operations where power efficiency and discreet operation matter.
