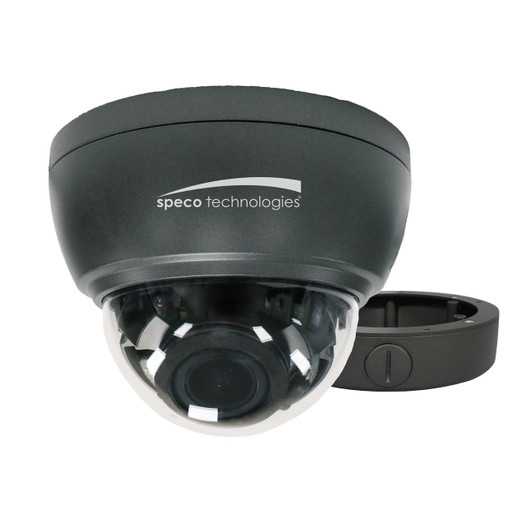

Speco Technologies HT7246T2 2MP HD-TVI Intensifier Dome Camera
Overview
The Speco Technologies HT7246T2 is a 2MP HD-TVI intensifier dome camera built for reliable surveillance across mixed lighting conditions without relying on IP infrastructure. This model combines a motorized 2.8–12mm varifocal lens with True WDR imaging and low-light intensifier technology to maintain consistent video quality whether you're monitoring bright outdoor scenes or unlit warehouses. It transmits video over standard coaxial cable (BNC connectors), making it an excellent fit for integrators standardizing on HD-TVI ecosystems or retrofitting existing analog sites. Operating temperature range of −40°F to 140°F supports year-round North American outdoor deployments. The IP67 environmental rating means rain, dust, and temporary submersion won't compromise the optics—critical for exposed mounting on exterior walls or in harsh warehouse conditions.
Key Features
- 2MP HD-TVI Resolution (1920×1080): Delivers frame-accurate detail at 30 fps over coaxial cable, eliminating the need to upgrade transmission infrastructure. Ideal for facilities already wired with BNC runs to a central DVR.
- Motorized 2.8–12mm Varifocal Lens: Field technicians adjust focal length without removing the camera housing—critical when site layouts change or initial FOV estimates prove incorrect. Reduces return visits and installation labor on hard-to-access dome mounts.
- True WDR (Wide Dynamic Range): Mitigates backlight, glare, and rapid lighting transitions by compressing bright and dark areas into a single usable image. Essential for loading docks where bay doors flood the scene with sunlight while nearby shelves remain shadowed.
- Intensifier Night Vision: Activates in low-light conditions, enabling 24/7 surveillance without external IR illumination or auxiliary lighting infrastructure. Reduces power consumption and installation complexity on budget-constrained projects.
- IP67 Environmental Rating: Survives direct rain spray, dust ingress, and temporary submersion—appropriate for outdoor eaves, covered but open warehouse loading areas, and high-humidity environments like cold storage.
- 12V DC Power with Junction Box: Requires a separate 12V DC power supply and coaxial transmission line to a head-end DVR or HD-TVI receiver. Junction box inclusion simplifies field wiring but adds bulk compared to compact fixed-lens alternatives.
Imaging Performance and Low-Light Capability
The HT7246T2 operates at a fixed 2MP (1920×1080) resolution, sufficient for identifying faces or license plates at 10–15 feet under controlled lighting. The intensifier night vision mode engages automatically in low illumination, amplifying available ambient light without external IR—a meaningful advantage in facilities where IR-based systems generate reflections off metallic surfaces or glass partitions. Combined with True WDR, this camera handles transitional lighting (dawn, dusk, interior/exterior thresholds) more gracefully than basic analog alternatives, reducing the need for DVR-side post-processing.
Video Transmission and Head-End Integration
As a pure HD-TVI camera, the HT7246T2 outputs composite analog video over BNC connectors. No IP encoding, H.264/H.265 compression, or network streaming occurs on the camera itself—all digitization and optional encoding happen at the DVR/NVR receiver. This architecture eliminates IP-related latency, simplifies air-gapped deployments, and avoids licensing complexity. However, it also means you must have a compatible HD-TVI DVR or external encoder in your ecosystem.
When This Is the Right Choice
Select the HT7246T2 if you have existing coaxial infrastructure, prefer to avoid IP camera licensing fees, or operate in environments where isolated analog surveillance is required. The motorized lens and True WDR make this camera appropriate for outdoor mixed-use sites (loading areas, parking, perimeter) where field-adjustable focus and bright-light handling justify the upfront cost. Integrators standardizing on HD-TVI cameras benefit from the family's consistency and lower decoder equipment requirements compared to native IP deployments.
When to Choose a Different Model
If your project requires cloud integration, ONVIF-based open standards, or IP-native video management platforms (Milestone, Genetec, Axis Companion), select an IP camera instead. Projects demanding resolution above 2MP should evaluate higher-megapixel alternatives in the HD-TVI or IP line. If you lack 12V DC power infrastructure and PoE conversion adds cost, consider a native PoE-powered camera instead. Analytics-dependent workflows (people counting, vehicle classification, loitering detection) are not supported natively on this platform—they require backend NVR analytics engines or third-party VMS plugins.
Optics and Field Adjustment
The motorized 2.8–12mm lens allows post-installation focus tuning—technicians can zoom in or out remotely or manually without breaking the seal. This flexibility is particularly valuable when initial site surveys underestimate FOV requirements or when weather conditions obscure the original installation context. The dome housing protects the motor and lens mechanics from weathering, extending field life in corrosive or high-humidity environments.
Environmental Durability
Operating range of −40°F to 140°F supports extreme North American climates without heater or cooler modules. The IP67 rating ensures the optics remain serviceable even after heavy rain or occasional submersion, though prolonged underwater exposure is not recommended. This durability is a real cost factor—fewer premature failures mean lower warranty claims and faster ROI on integrator labor.
Network and Security
The HT7246T2 has no network interface, IP stack, or cybersecurity surface. It does not support ONVIF, RTSP, HTTPS, or web-based configuration. Signal security relies entirely on physical access control to coaxial runs and the DVR facility. Organizations operating air-gapped surveillance architectures, government facilities with isolated networks, or facilities subject to strict IT segmentation policies benefit from this analog-only design—no firmware updates, no network credentials, no attack vectors via the camera itself.
Frequently Asked Questions
Q: Can I use the HT7246T2 with an IP-based video management system?
A: No. The HT7246T2 is an analog HD-TVI camera and outputs composite video over BNC connectors. To integrate with IP systems, you would need an external HD-TVI-to-IP encoder or a DVR that supports both HD-TVI input and network output. The camera itself has no network interface.
Q: What is the maximum cable run distance for the HT7246T2?
A: Standard HD-TVI coaxial cable (RG-6 or equivalent) supports reliable transmission up to approximately 300–400 feet, depending on cable quality and environmental interference. Beyond that, signal degradation may occur. Consult your DVR manufacturer's specifications for guaranteed maximum distances.
Q: Does the HT7246T2 include built-in recording or storage?
A: No. The HT7246T2 is a camera only and transmits live video to a remote DVR or HD-TVI receiver. All recording, storage, and playback functions are performed by the head-end equipment.
Q: What type of power supply do I need for the HT7246T2?
A: The camera requires a separate 12V DC power supply, typically rated 1–2 amps depending on lens motor activity and intensifier mode use. The included junction box simplifies wiring but does not include the power supply itself—that must be provided by the integrator or purchased separately.
Q: Is the HT7246T2 suitable for indoor use?
A: Yes. While rated for outdoor IP67 deployment, the HT7246T2 performs well indoors in areas with mixed lighting (retail, warehouses, office atriums). The motorized lens and True WDR make it adaptable to enclosed spaces where lighting levels vary significantly.
Q: Can I adjust the lens remotely?
A: The motorized lens can be adjusted on-site during installation, but remote adjustment requires a compatible HD-TVI DVR with motor control support. Some models support lens-motor commands via the analog signal; others do not. Verify with your DVR's control protocol before specifying this capability.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I spec the HT7246T2 when an integrator has a solid coaxial plant and wants to avoid the licensing and infrastructure headaches of IP. The motorized 2.8–12mm lens is a legitimate labor saver—you adjust focal length in the field without pulling the dome apart, and that matters on high-ceiling warehouse installs. True WDR plus intensifier night vision is a credible combination for loading docks and outdoor perimeters where you can't control lighting.
Technical Highlights:
- Motorized 2.8–12mm Varifocal Lens: Field-adjustable zoom eliminates the need for replacement camera swaps when initial FOV estimates miss the mark. Reduces site revisits on difficult-to-access dome mounts—real labor savings on commercial builds.
- True WDR + Intensifier Night Vision: Together these handle both bright backlit scenes (bay doors in sunlight) and unlit overnight conditions without separate IR infrastructure. Intensifier mode draws less power than external IR arrays, stretching 12V DC supply budgets.
- IP67 + −40°F to 140°F Operating Range: Survives heavy rain and extreme seasonal temperature swings without auxiliary heater/cooler modules. No climate conditioning equipment needed for northern U.S. or coastal salt-spray deployments.
Deployment Considerations:
- HD-TVI DVR/receiver is mandatory—there is no built-in storage or IP interface. Verify your head-end supports 2MP HD-TVI input and that coaxial runs are already installed or budgeted.
- 12V DC power supply must be provisioned separately; the camera does not include it. Factor in step-down transformer cost if your facility uses 24VAC CCTV distribution.
- Lens motor remote control is DVR-dependent. Some receivers support motor commands over the analog signal; others require separate control wiring. Confirm motor functionality with your DVR's datasheet before promising field-adjustable zoom to the end customer.
The HT7246T2 is a solid choice for warehouse perimeter and loading-dock surveillance on existing coaxial infrastructure. The motorized lens and True WDR justify the cost over fixed-lens 2MP alternatives when site conditions are unpredictable or subject to seasonal lighting shifts. Not a fit for cloud-connected or IP-native environments—choose this camera because you have coaxial plant and want reliable analog video, not because it's cheaper than IP.
