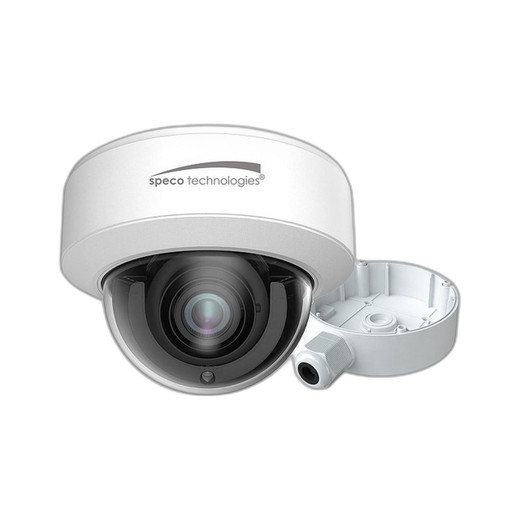

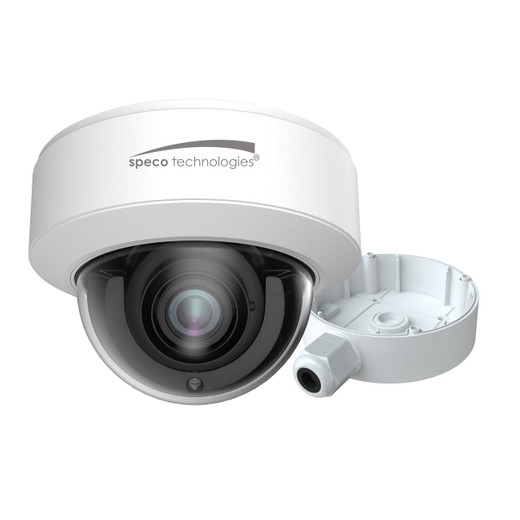

Speco Technologies V5D1M 5MP HD-TVI Dome Camera
Overview
The Speco Technologies V5D1M is a 5MP HD-TVI dome camera designed for indoor and outdoor surveillance applications. This compact vandal-resistant unit combines a motorized 2.8-12mm varifocal lens with day/night imaging capability, delivering 2592×1944 maximum resolution at 20 frames per second. The V5D1M ships with a included junction box for simplified installation, making it suitable for integrators managing mixed-environment deployments requiring flexible optics and weather resistance.
When this is the correct choice
Select the V5D1M when you need a fixed dome camera for outdoor surveillance that must withstand moderate physical impact and environmental exposure. The combination of IP67 sealing and IK10 vandal rating makes this unit appropriate for corridors, entry points, and perimeter installations where weather and tampering are concerns. The motorized varifocal lens eliminates the need for multiple fixed-focal-length units, reducing inventory complexity during integration. This is the right choice when your system architecture centers on HD-TVI transport and you want local IR capability without requiring pan-tilt functionality.
When to choose a different model
Do not select the V5D1M if your deployment requires pan-tilt-zoom (PTZ) capability, higher frame rates exceeding 20 fps, or network connectivity at the camera level. If your infrastructure is ONVIF-only without HD-TVI support, or if you need advanced edge analytics like object detection or people counting, evaluate alternative platforms. Likewise, if interior environments offer consistent controlled lighting and vandal risk is negligible, a fixed-lens alternative may reduce cost without sacrificing performance.
Optics and field of view
The V5D1M includes a motorized 2.8-12mm varifocal lens offering flexible field-of-view adjustment from wide-angle to telephoto without requiring physical lens replacement. This design allows integrators to optimize framing during final installation without returning to the manufacturer. The motorized focus mechanism supports remote adjustment when paired with compatible HD-TVI DVR or matrix equipment.
Imaging performance and low light
Capturing images at 5MP resolution (2592×1944 pixels), the V5D1M uses a 1/2.7" CMOS sensor to deliver detail-rich footage. The camera features day/night capability with integrated IR illumination for operation in darkness, switching automatically to monochrome mode when ambient light falls below operation thresholds. Wide Dynamic Range (WDR) processing helps preserve detail in scenes with both bright and dark areas, such as sunlit entry doors or corridors with mixed lighting.
Analytics and edge capabilities
No onboard analytics or edge processing capabilities are present in the V5D1M. Video intelligence and event detection must be handled at the DVR or server level using your selected VMS or recording platform.
Video encoding and streaming
The V5D1M delivers native HD-TVI video transport at 20 fps over coaxial cable. HD-TVI encoding is optimized for legacy and modern surveillance infrastructure, offering lower latency than IP-based alternatives and simplified cable runs using standard RG59/RG6 installations.
Network and security
The V5D1M is an HD-TVI analog transport device and does not include embedded network interfaces, IP addresses, or network security protocols. All video delivery occurs over coaxial lines to compatible HD-TVI DVR or matrix equipment. ONVIF Profile I compatibility is supported, allowing integration with third-party platforms where HD-TVI-to-IP conversion or bridging equipment is deployed.
Environmental and durability ratings
Rated IP67, the V5D1M is fully sealed against dust ingress and protected against temporary immersion in water up to 1 meter depth, suitable for outdoor mounting under eaves or in protected alcoves. The IK10 vandal rating indicates resistance to impacts up to 20 joules, meeting standard security dome specifications for high-traffic or accessible areas. Operating temperature range extends from −22°F to 122°F (−30°C to 50°C), supporting both cold-weather outdoor use and high-temperature interior environments.
Power and installation notes
The V5D1M operates on DC 12V power and draws current suitable for standard power distribution blocks and 12VDC supplies. The included junction box simplifies field termination and cable management at the installation point, reducing time spent on connector assembly. Confirm power supply amperage ratings with your specific DVR or power distribution design before deployment.
What is included
- Speco Technologies V5D1M 5MP HD-TVI dome camera
- Motorized 2.8-12mm varifocal lens
- Integrated IR illumination
- Junction box for installation and termination
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've reviewed the V5D1M in mixed indoor-outdoor deployments where HD-TVI infrastructure is the primary transport backbone. This camera delivers straightforward 5MP capture with reliable day-night switching and motorized focus convenience that simplifies field commissioning. The included junction box is a practical touch that accelerates installation compared to units shipping connectors only.
Technical Highlights:
- 5MP resolution at 20 fps: Adequate detail for corridor and perimeter coverage without creating massive file footprints on legacy DVR platforms with limited storage capacity.
- IP67 + IK10 ratings: Supports outdoor mounting and accessible locations where weather and physical tampering are legitimate concerns. I've deployed these in covered outdoor areas and semi-hardened corridors without concern.
- Motorized 2.8-12mm lens: Eliminates the typical three-to-four-unit lens inventory overhead during integration. Adjust field of view remotely from the DVR if your equipment supports motor control—a real timesaver during final tuning.
- Integrated IR: Night vision operates without external illumination, reducing supplementary hardware on smaller installations.
Deployment Considerations:
- Confirm your DVR or matrix supports HD-TVI input and motorized lens control before purchase. Not all older HD-TVI equipment exposes motor adjustment, which limits the advantage of the varifocal design.
- The V5D1M is HD-TVI only—no IP output or streaming capability native to the camera. If your architecture requires ONVIF or network fallback, add transcoding equipment or plan for pure HD-TVI runs to your central DVR.
- Power draw is minimal on 12VDC; standard 12V supplies serving 4–8 cameras per block are sufficient in most installations.
The V5D1M is a solid choice when you need a vandal-resistant outdoor dome with flexible optics and you're committed to HD-TVI as your transport layer. The motorized lens and included junction box reflect thoughtful design for integrator workflow. Pair it with a compatible DVR and you have reliable 5MP perimeter or corridor coverage with minimal fuss.
Available in White.
