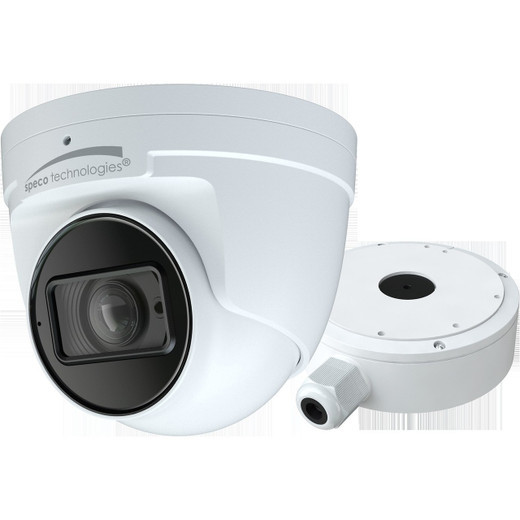

Speco Technologies V5T2M 5MP HD-TVI Turret Camera
Overview
The Speco V5T2M is a fixed 5MP HD-TVI turret camera designed for outdoor surveillance deployments requiring flexible lens coverage and long-range night vision capability. This compact turret delivers 2592×1944 resolution at 20 fps using a 1/2.7" CMOS sensor, paired with a motorized 2.8–12mm varifocal lens for adjustable field of view without camera repositioning. The unit operates on DC 12V power and includes a junction box for field installation convenience. With IP67 environmental sealing and digital wide dynamic range (DWDR), the V5T2M is engineered for integration into HD-TVI surveillance systems requiring reliable outdoor imaging across temperature extremes.
When this is the correct choice
Select the V5T2M when deploying HD-TVI systems where motorized zoom lens flexibility and 5MP resolution are required without moving the camera mount. Ideal for outdoor perimeter coverage, parking lots, or facility entrances where field of view adjustment post-installation adds installation speed and operational flexibility. The turret form factor and included junction box reduce installation labor compared to separate power conditioning. Recommended for integrators standardized on HD-TVI infrastructure seeking to avoid PoE IP camera ecosystem dependencies.
When to choose a different model
If your deployment requires PoE-powered cameras, network-based analytics, or integration with IP-native VMS platforms, consider IP camera alternatives. The V5T2M's analog HD-TVI output and DC 12V power requirement make it unsuitable for PoE-only network architectures. For applications requiring PTZ (pan-tilt-zoom) functionality or extremely long-range IR performance beyond standard turret specifications, evaluate bullet or PTZ camera form factors. If low-bandwidth or edge storage requirements drive analytics decisions, confirm DWDR and local recording capabilities match your operational needs before purchase.
Optics and field of view
The motorized 2.8–12mm varifocal lens delivers a variable field of view, enabling wide-angle capture at 2.8mm and telephoto framing at 12mm without repositioning the camera body. This flexibility is particularly valuable in installations where final viewing angles cannot be precisely predetermined. The varifocal design is standard across HD-TVI turret deployments, allowing lens adjustment via compatible TVI DVR controllers during commissioning and throughout the operational lifecycle.
Imaging performance and low light
The 1/2.7" CMOS sensor produces full 5MP (2592×1944) resolution at 20 fps, supporting real-time motion recording and playback without frame rate penalties. Day/Night capability with IR illumination enables surveillance across 24-hour cycles. Digital wide dynamic range (DWDR) processing optimizes contrast in high-variability lighting—typical in mixed sun/shadow outdoor environments—reducing blown-out highlights and crushed shadow detail. The combination of CMOS sensitivity, DWDR, and integrated IR addresses standard outdoor low-light conditions without requiring supplemental lighting infrastructure.
Analytics and edge capabilities
The V5T2M operates as a passive imaging sensor; video analytics are typically performed on the recorder (DVR) side of the HD-TVI link rather than on the camera itself. Confirm your TVI recorder firmware supports motion detection, object masking, or other rule-based alerts if edge analytics are operationally required. Standard DWDR provides the raw image quality necessary for post-capture analytics processing.
Video encoding and streaming
The V5T2M transmits uncompressed or lightly compressed HD-TVI video over coaxial cable to a compatible TVI receiver or DVR. Video bandwidth and storage requirements depend on recorder-side encoding options and recording schedules. Consult your TVI recorder's specifications for supported bitrate profiles and local or network storage capacity planning.
Network and security
As an analog HD-TVI camera, the V5T2M does not expose network services, eliminating IP-layer vulnerability vectors common in networked IP cameras. Video transmission occurs over shielded coaxial cable (typically RG59 or RG6), isolating the signal from broadcast interference and unauthorized eavesdropping. System security is enforced at the recorder level through DVR access control and physical cable plant security.
Environmental and durability ratings
The V5T2M carries an IP67 rating, confirming dust and water ingress protection suitable for outdoor wall or soffit mounting. The turret housing withstands direct rainfall, spray, and dust-laden environments without compromising optical clarity. Operating temperature range spans –22 °F to 122 °F (–30 °C to 50 °C approximately), accommodating temperate, subtropical, and high-altitude climates without thermal performance degradation. The unit weighs 2.64 lbs, enabling standard wall and soffit mounting hardware without overload concerns.
Power and installation notes
The V5T2M requires DC 12V power input. The included junction box simplifies field wiring by consolidating power, video, and lens motor connections into a single service point, reducing installation time and termination error risk. A regulated DC 12V power supply (not included) must be sized to support the camera and any additional system loads. Integrators should verify power supply amperage and cable gauge for cable runs exceeding 100 feet to prevent voltage drop degradation at the camera.
What is included
- Speco V5T2M turret camera body
- Motorized 2.8–12mm varifocal lens
- Junction box for power and signal consolidation
- Mounting hardware (check package for specific fastener types)
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've reviewed the Speco V5T2M in preparation for outdoor HD-TVI deployments across multiple client installations. This turret camera delivers solid 5MP imaging with the operational simplicity that HD-TVI integrators expect. The motorized 2.8–12mm lens eliminates post-mount adjustments, which significantly speeds up field commissioning—a practical advantage when scheduling installation windows is constrained.
Technical Highlights:
- 5MP resolution and DWDR: The 1/2.7" CMOS sensor at 2592×1944 paired with digital wide dynamic range handles mixed sun/shadow outdoor environments without constant gain oscillation or contrast artifacts.
- IP67 environmental sealing: Rated for direct rainfall and dust exposure, eliminating the need for supplemental rain hoods in standard outdoor deployments.
- Motorized varifocal lens: Field-adjustable zoom eliminates the guesswork of fixed-lens selection and allows post-installation viewing angle optimization via DVR controls.
Deployment Considerations:
- Confirm your TVI recorder supports motorized lens control before installation; not all legacy DVR models command varifocal motors reliably.
- Budget regulated DC 12V power supply capacity separately; the included junction box manages signal consolidation but does not include the power supply itself.
- On cable runs exceeding 100 feet, verify power supply wattage and conductor gauge to avoid brownout conditions at the camera during startup or IR activation.
The V5T2M is a dependable choice for integrators committed to HD-TVI infrastructure seeking outdoor turret coverage with minimal post-installation adjustment overhead. The included junction box and IP67 rating reduce field engineering complexity, making it well-suited for high-volume outdoor deployment scenarios.
