Speco Technologies V5T1M HD-TVI Turret Camera
Overview

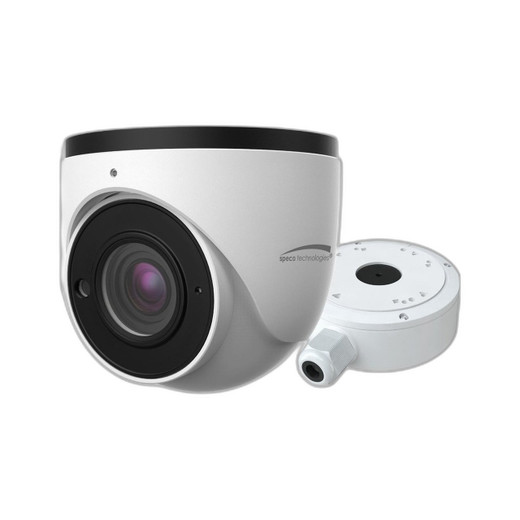

The Speco Technologies V5T1M is a 5MP HD-TVI turret camera designed for fixed outdoor and indoor surveillance deployments. This model combines a 2592x1944 native resolution with a motorized 2.8-12mm varifocal lens, delivering flexibility in field-of-view configuration without requiring physical repositioning. The V5T1M includes an integrated junction box for simplified installation in retrofit and new-build environments. Day/night capability with infrared illumination enables round-the-clock monitoring, while wide dynamic range processing preserves detail in mixed lighting conditions typical of industrial and commercial sites.
When this is the correct choice
Select the V5T1M for fixed-position surveillance requiring flexible zoom control and outdoor durability. The motorized lens is ideal when you need to adjust field-of-view remotely or during commissioning without removing the camera. The IP67 rating and operating temperature range of -22°F to 122°F suit temperate outdoor installations, including parking areas, building perimeters, and covered loading docks. The included junction box reduces installation labor for integrators. This camera is well-matched to HD-TVI systems that standardize on Speco or compatible HD-TVI DVRs and hybrid recorders.
When to choose a different model
If your deployment requires pan-tilt-zoom motion, consider a PTZ camera instead. For extreme cold (-40°F and below) or harsh industrial environments with washdown requirements (IP69K), evaluate specialized enclosures or higher-rated models. If you need ONVIF Profile S or G compatibility with IP camera infrastructure, or if your VMS standardizes on network-based recording, consider a 5MP IP turret with native ONVIF support instead of this HD-TVI model.
Optics and field of view
The 2.8-12mm motorized varifocal lens provides zoom range suitable for medium- to long-distance monitoring without fixed blind spots. At 2.8mm, the field of view expands for area surveillance; at 12mm, detail capture improves for facial recognition and license plate applications. Motorized focus and iris control are included. The lens is compatible with standard turret mounts and does not require manual adjustment in the field.
Imaging performance and low light
Native 5MP resolution (2592x1944) at 20 fps delivers clear detail for identification tasks across typical commercial viewing distances. The 1/2.7" CMOS sensor with day/night IR capability captures usable video in low-light conditions. Wide dynamic range (WDR) processing balances bright and dark areas in a single frame, eliminating silhouettes and overexposure common in backlit scenes. Infrared illumination supports night vision operation when ambient light is unavailable.
Analytics and edge capabilities
The V5T1M is ONVIF Profile I compliant, enabling basic interoperability with ONVIF-aware VMS platforms and third-party software. However, this turret camera does not include embedded video analytics, deep learning, or edge computing capabilities. For motion detection and tamper alerts, rely on your DVR or VMS platform's central analytics engine.
Video encoding and streaming
As an HD-TVI camera, the V5T1M encodes video using HD-TVI proprietary compression over coaxial cabling. Streaming capability is limited to TVI protocol; there is no native RTSP, HLS, or HTTP streaming. Integrate with HD-TVI or hybrid DVRs that support TVI input channels. HD-TVI bandwidth is lower than IP-based H.264/H.265, making this choice suitable for longer cable runs and systems where bandwidth efficiency over coax is a requirement.
Network and security
The V5T1M operates over coaxial cable and does not require network connectivity. As a wired analog-based camera system, it avoids IP-layer cybersecurity considerations but also lacks remote IP-based monitoring without a networked DVR. Secure your DVR with strong credentials and network isolation if remote access is needed.
Environmental and durability ratings
IP67 rating protects against dust ingress and submersion in shallow water, suitable for outdoor roof mounts and wall installations exposed to rain and moisture. Operating temperature range of -22°F to 122°F covers most temperate climates but may require supplemental heating or cooling in extreme seasonal swings. The included white housing integrates into building aesthetics and provides minimal visual impact compared to dark or metallic finishes.
Power and installation notes
The V5T1M is powered via DC 12V supply. Integration of AC/DC capability allows use of standard 12V regulated power supplies, commonly available through integrator inventory. No PoE or high-voltage switching is required. The included junction box simplifies field wiring and protects connections from moisture and UV exposure, reducing commissioning time. Coaxial cable distance to the DVR should not exceed recommended TVI specifications (typically 300-500 feet for full 5MP, shorter for longer distances depending on cable quality).
What is included
- Speco Technologies V5T1M turret camera body (white finish)
- 2.8-12mm motorized varifocal lens
- Integrated junction box
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Speco V5T1M during planning for several retrofit commercial surveillance projects. This turret camera delivers solid 5MP HD-TVI imaging in a compact form factor that simplifies installation over longer coaxial runs. The motorized 2.8-12mm lens eliminates the need for multiple fixed-lens SKUs and allows field technicians to adjust framing during commissioning without swapping hardware.
Technical Highlights:
- 5MP HD-TVI Encoding: 2592x1944 resolution at 20 fps provides sufficient detail for identification and long-distance monitoring without the bandwidth overhead of 4K or the expense of native IP cameras in standardized HD-TVI deployments.
- Motorized 2.8-12mm Lens: Varifocal range covers typical surveillance zones from area overview (2.8mm) to facial detail and license plate capture (12mm), with remote focus and iris control reducing field visits.
- IP67 Durability: Full dust and rain protection suitable for outdoor roof, eave, and wall mounting in temperate climates without additional enclosures.
- Integrated Junction Box: Pre-assembled wiring hub reduces labor and improves weatherproofing compared to loose terminal blocks exposed in the field.
Deployment Considerations:
- Coaxial-only connectivity limits this camera to HD-TVI DVR and hybrid recorder ecosystems. If your infrastructure is transitioning to IP, this is not the right choice; plan for IP turrets instead.
- The 20 fps frame rate is sufficient for most commercial surveillance but may feel slightly less responsive than 30 fps on fast-moving subjects or traffic. Validate against your site's motion requirements.
- 12V DC power simplifies wiring but requires a regulated power supply; ensure your power budget and cable gauge are adequate for the full camera count at your site distance.
The V5T1M is a dependable choice for HD-TVI integrators seeking a feature-rich fixed turret with motorized zoom and proven Speco reliability. Size your HD-TVI DVR input channels and coaxial plant accordingly, and this camera will deliver years of consistent day/night surveillance with minimal maintenance.
