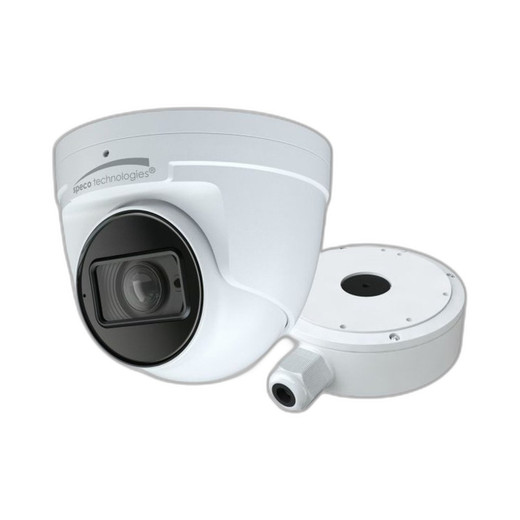

Speco Technologies V5T3M 5MP HD-TVI Turret Camera
Overview
The Speco Technologies V5T3M is a 5MP HD-TVI turret camera designed for outdoor surveillance deployments requiring weatherproof construction and flexible lens options. This model combines a motorized 2.8-12mm varifocal lens with integrated infrared night vision and wide dynamic range processing, making it suitable for mixed-light environments. The turret form factor provides easy installation and field adjustment, while the IP67 rating ensures reliable operation in wet and dusty conditions. Resolution reaches 2592×1944 pixels at 20 frames per second, delivering detailed imaging across a range of lighting conditions.
When this is the correct choice
The V5T3M is the right choice when you need a fixed outdoor turret camera with motorized zoom capability and day/night performance. Select this model for parking lots, perimeter monitoring, building facades, and facility entrances where a single camera must cover variable distances without repositioning. The 2.8-12mm motorized lens allows field technicians to adjust focal length post-installation, reducing site visits. IP67 weatherproofing supports installation in rain-prone or dusty industrial environments. HD-TVI transmission over coaxial cable suits integrators with existing analog infrastructure who want to upgrade resolution without rewiring.
When to choose a different model
Do not select the V5T3M if your project requires pan-tilt-zoom (PTZ) motorized movement—this is a fixed-position turret. If your installation demands PoE (Power over Ethernet) simplicity, evaluate PoE-capable network cameras instead. For indoor-only applications, consider non-weatherproof alternatives. If you need fixed focal length and cost optimization, fixed-lens models may be more economical. For analytics-heavy deployments requiring embedded edge AI or people-counting, verify embedded analytics capabilities with Speco before selection.
Optics and field of view
The V5T3M integrates a motorized varifocal 2.8-12mm lens, providing a 4.3x zoom range controlled from the DVR or via the included junction box. At 2.8mm, field of view is wide, suitable for hallway and entrance coverage. At 12mm, the camera narrows to medium telephoto range for identification-grade detail at distance. Motorized focus adjustment allows integrators to optimize sharpness during commissioning without returning to the site.
Imaging performance and low light
Sensor specifications include a 1/2.5-inch CMOS imager delivering 5MP (2592×1944) resolution at 20 frames per second. The camera features WDR (wide dynamic range) processing to handle back-lit and high-contrast scenes. Integrated infrared night vision activates automatically during low-light conditions, enabling monitoring in complete darkness. The sensor delivers 5MP resolution in both day and night modes, maintaining detail when artificial or solar illumination drops below threshold.
Analytics and edge capabilities
The V5T3M is a transmission-only HD-TVI camera with no embedded edge analytics. Video processing and object detection must occur at the DVR or external NVR. This design reduces on-camera computational load and keeps the unit cost-effective for infrastructure-heavy projects.
Video encoding and streaming
HD-TVI encoding delivers video over standard 75-ohm coaxial cable, compatible with existing analog infrastructure and legacy DVR platforms. Frame rate is constant at 20 fps, suitable for motion recording and playback in standard security workflows. Integration with IP networks requires a TVI-to-IP converter or TVI-capable NVR.
Network and security
The V5T3M operates as a coaxial HD-TVI device and does not communicate directly over IP networks. Network security is managed by the DVR or converter platform. Ensure your DVR firmware is current and remote access is restricted to authorized users.
Environmental and durability ratings
IP67 rating confirms the camera is dust-tight and can withstand immersion in up to 1 meter of water for 30 minutes. This certification supports outdoor mounting in rain, snow, and high-moisture environments. Operating temperature range is −22°F to 122°F (−30°C to 50°C), covering most North American climates. The included junction box houses power connections and provides weather sealing at the cable entry point.
Power and installation notes
The V5T3M requires DC 12V power supplied via a dedicated power supply or DVR's power output. Typical current draw is moderate and within the capacity of standard 12V, 2A-5A supplies. Power connection uses standard 2.1mm barrel connectors through the junction box. Installation is straightforward: mount the turret body to wall or ceiling using the provided bracket, thread coaxial video and power cables through the junction box, terminate at the DVR. The motorized lens requires DVR support for zoom and focus control; verify your DVR platform supports lens commands before purchase.
What is included
- Speco Technologies V5T3M turret camera body
- 2.8-12mm motorized varifocal lens (pre-installed)
- Included junction box for power and video connections
- Mounting hardware and bracket
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco V5T3M during the planning phase of several outdoor facility upgrades where customers had existing coaxial analog systems and wanted to add 5MP resolution without complete rearchitecture. The motorized lens is the standout feature—it lets you adjust zoom in the field, eliminating the need to remount or swap lenses during commissioning. The IP67 rating and −22°F to 122°F operating range handle real-world weather without flinching.
Technical Highlights:
- 5MP resolution at 20 fps: The 1/2.5-inch CMOS sensor delivers 2592×1944 pixels, offering a solid balance between detail and bandwidth on existing DVR infrastructure.
- Motorized 2.8-12mm lens: The 4.3x zoom range is field-adjustable from the DVR, eliminating post-install rework and reducing labor costs.
- WDR + integrated IR: Day/night imaging handles backlit perimeter shots and delivers usable IR footage in total darkness, crucial for after-hours monitoring.
- IP67 + wide temperature span: Built for harsh outdoor mounting—rain, dust, and seasonal temperature swings won't compromise performance.
Deployment Considerations:
- Verify your DVR supports motorized lens control and TVI input before purchase; older analog systems may require separate lens controller cards.
- Pair the V5T3M with quality 75-ohm RG59 or RG6 coax to avoid signal degradation over long runs. Keep video runs under 500 feet for clean HD-TVI transmission.
- Use the included junction box to protect power connections in exposed outdoor locations; extend power runs with weatherproof conduit if needed.
For integrators working with installed coaxial plant and customers who want HD-TVI 5MP without a full IP migration, the V5T3M delivers proven reliability and practical field serviceability. The motorized lens adds genuine value in multi-zone deployments.
Available in White.
