Speco Technologies H8D8M 4K HD-TVI Dome Camera
Overview
The Speco H8D8M is an 8MP HD-TVI dome camera designed for outdoor surveillance deployments requiring motorized zoom flexibility and vandal resistance. Built on a 1/2.5" CMOS sensor capable of 3840×2160 resolution at 15 fps, this camera delivers 4K imaging in day and night conditions. The unit ships with a motorized 2.8-12mm varifocal lens, integrated IR capability, and a junction box for field installation. IP67 weatherproofing and IK10 vandal rating make this camera suitable for exposed indoor and outdoor mounting locations where durability against impact and environmental stress is essential.
When this is the correct choice
Select the H8D8M when you need a fixed-position dome with motorized zoom capability in environments requiring strong vandal resistance and full weatherproofing. The IP67 rating and IK10 impact rating support installation in semi-exposed and outdoor locations prone to weather and physical interference. The 2.8-12mm motorized lens provides zoom flexibility for framing adjustments without camera repositioning—valuable for wide-area coverage where detailed identification becomes necessary. HD-TVI transport ensures compatibility with existing analog or hybrid TVI infrastructures without requiring IP-native backbone upgrades.
When to choose a different model
If your deployment requires remote pan/tilt/zoom functionality, select a PTZ camera instead of a fixed dome. If you need PoE power delivery, confirm your TVI DVR or recorder supports PoE-to-coax injectors or upgrades, as the H8D8M operates on DC 12V power. If your site requires analytics such as motion detection, people counting, or object classification at the edge, verify your backend system can decode and process H8D8M video streams; analytics capability depends on recorder and management software, not the camera itself.
Optics and field of view
The motorized 2.8-12mm varifocal lens provides approximately 4.3× zoom range, enabling wide-area monitoring at 2.8mm and targeted observation at 12mm without physical camera adjustment. The lens motor is integrated into the camera body, reducing external wiring complexity. Zoom position and focus can be controlled from the DVR or recorder via TVI protocol if the backend supports motorized lens commands.
Imaging performance and low light
The 1/2.5" CMOS sensor captures 8MP (3840×2160) at 15 fps in day mode. Wide Dynamic Range (WDR) processing reduces blown highlights and shadow crush in mixed-lighting scenes, improving detail preservation across high-contrast environments. Integrated IR illumination enables night vision operation without auxiliary lighting. The camera includes Day/Night switching and IR control, allowing automatic or manual toggling between color and monochrome imaging as ambient light falls.
Analytics and edge capabilities
The H8D8M itself does not embed video analytics. Detection, tracking, counting, and alarm functions depend entirely on the connected TVI DVR, NVR, or VMS platform. Confirm your recorder firmware supports motion detection, event triggers, and integration with third-party management software before deployment.
Video encoding and streaming
As an HD-TVI camera, the H8D8M encodes video in TVI format over coaxial cable to a compatible TVI-capable recorder. TVI provides high-bandwidth, low-latency transport optimized for analog and hybrid surveillance backbones. No IP networking, RTSP streaming, or H.264/H.265 compression applies to this camera; it is transport-agnostic to IP protocols.
Network and security
The H8D8M does not provide Ethernet, IP addressing, or network-based security features. It operates as a closed-loop analog transport device connected via coaxial cable to a TVI recorder. No firmware updates, remote access, or cyber-threat surface applies at the camera level.
Environmental and durability ratings
IP67 rating certifies dust and water resistance suitable for outdoor, semi-exposed, and splash-zone installations. The IK10 vandal rating indicates resistance to 20 joules of impact—equivalent to a 5 kg weight dropped from 40 cm—meeting requirements for high-vandalism environments such as public transit, schools, and retail. Operating temperature range of −22°F to 122°F (−30°C to 50°C) supports deployment across temperate and warm climates; confirm your site does not exceed these limits during seasonal extremes.
Power and installation notes
The H8D8M operates on DC 12V power supplied via the included coaxial cable or dedicated power lead. A junction box is included to simplify field termination and power distribution. Power consumption and wattage specifications were not provided in available documentation; contact the distributor for detailed electrical load data. Installation can be wall-mounted or ceiling-mounted using the supplied bracket hardware. Professional integration with the DVR should include lens calibration and IR intensity adjustment via the recorder menu.

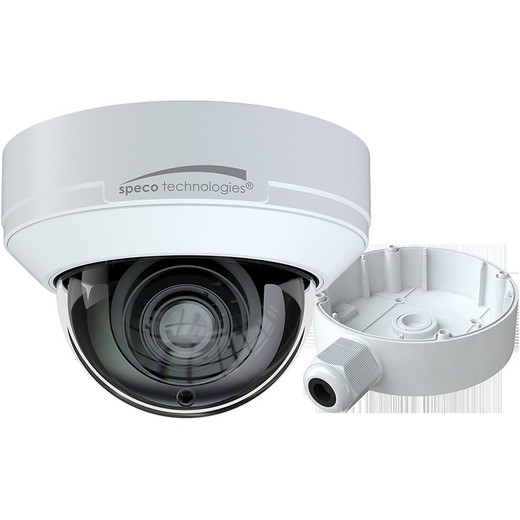

What is included
- Speco H8D8M dome camera body
- Motorized 2.8-12mm varifocal lens (pre-installed)
- Junction box for power and signal termination
- Installation bracket hardware
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Speco H8D8M in hybrid TVI/IP upgrade scenarios where existing coaxial infrastructure must remain in service. This camera addresses a specific need: motorized zoom in a vandal-rated dome form factor without requiring network provisioning. The 8MP sensor and motorized lens deliver practical zoom flexibility for framing adjustments, and the included junction box reduces field integration complexity significantly.
Technical Highlights:
- Vandal-Rated Dome Form Factor: IK10 impact rating and IP67 weatherproofing make the H8D8M suitable for high-touch or exposed outdoor locations where PTZ units would be vulnerable. The compact dome profile offers covert appearance compared to visible external zoom mechanisms.
- Motorized Zoom Flexibility: The 2.8-12mm motorized lens enables wide-to-narrow coverage changes via DVR commands, eliminating the need for manual lens adjustment or additional camera repositioning after installation.
- Day/Night with WDR: Integrated IR and WDR processing handle mixed-light and high-contrast scenes; the camera automatically switches to monochrome IR mode when ambient light drops, ensuring 24-hour surveillance without auxiliary lighting.
Deployment Considerations:
- Confirm your TVI DVR or recorder supports motorized lens control and WDR decode before purchase. Not all legacy recorders command motorized zoom or process WDR output correctly.
- Plan coaxial cable runs with adequate gauge and shielding for the full 2.8-12mm zoom range; lens motor current draw is modest but must not degrade video signal quality or power delivery to the camera.
The H8D8M is a solid choice for integrators maintaining TVI-based systems where zoom capability and vandal resistance are non-negotiable. It bridges the gap between fixed domes and full-motion PTZ units, offering practical flexibility within a rugged, weather-resistant enclosure. Verify recorder firmware compatibility and commission motorized lens settings during site acceptance.
