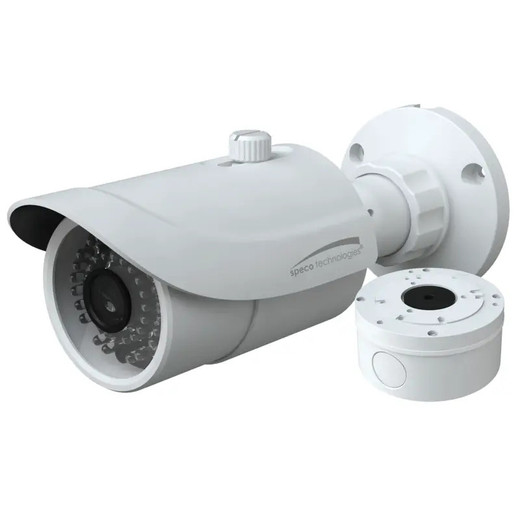

Speco Technologies H8B6M 4K HD-TVI Bullet Camera
Overview
The Speco Technologies H8B6M is an 8MP 4K resolution HD-TVI bullet camera designed for outdoor surveillance installations requiring long-range monitoring and flexible field-of-view control. This model combines native 4K imaging (3840×2160 resolution) with a motorized 2.8-12mm varifocal lens, delivering variable zoom capability without external PTZ infrastructure. The camera integrates a junction box for simplified field installation and wide operating temperature range, making it suitable for diverse climate conditions.
When this is the correct choice
The H8B6M is the correct choice for outdoor installations where HD-TVI infrastructure is already deployed or preferred, and where motorized zoom flexibility is required without full PTZ capability. It delivers 4K resolution for detailed forensic review and supports day/night monitoring with integrated IR illumination. The IP66 environmental rating qualifies this camera for exposed outdoor locations, including rooflines, perimeter walls, and areas subject to moisture and dust exposure. Select this model when integrators need cost-effective 4K capacity with motorized lens control in an HD-TVI ecosystem.
When to choose a different model
If your deployment requires pan-tilt-zoom (PTZ) movement or IP network-based streaming without HD-TVI encoders, this HD-TVI-only camera is not suitable. If operating temperatures below -22°F or above 122°F are expected, consult alternative models with extended thermal ratings. If compact indoor dome form factors are required, consider Speco's indoor dome offerings instead of this bullet design.
Optics and field of view
The H8B6M incorporates a motorized 2.8-12mm varifocal lens, providing 4.3× optical zoom range and field-of-view flexibility from wide-angle to telephoto framing without repositioning the camera body. The motorized design enables remote focus and zoom adjustment from the recorder or control interface, reducing site visits for FOV adjustments. The 1/2.5" CMOS sensor paired with this lens delivers crisp detail across the 8MP frame, supporting both wide coverage and targeted monitoring scenarios from a single installation point.
Imaging performance and low light
The H8B6M captures 8MP (3840×2160) 4K resolution at 15 fps, enabling high-definition detail suitable for forensic searches and facial/license-plate identification tasks. Day/Night functionality with integrated infrared illumination enables continuous operation across light transitions. Wide Dynamic Range (WDR) processing balances exposure across scenes with mixed lighting conditions—critical for areas with windows, backlighting, or reflective surfaces. The combination of IR night vision and WDR ensures usable video throughout 24-hour operation cycles.
Analytics and edge capabilities
Source evidence does not specify on-camera analytics, metadata extraction, or edge processing features for the H8B6M. Integration with analytics platforms depends on backend VMS or encoder capabilities, not the camera itself. Consult with your HD-TVI recorder or management software for available analytics pipelines.
Video encoding and streaming
The H8B6M outputs HD-TVI video signal—proprietary over coaxial cable. HD-TVI does not support native IP streaming or standard video compression codecs; video must be decoded at the HD-TVI recorder. This architecture simplifies cabling (single coax line) and avoids IP network load but requires compatible HD-TVI DVR or encoder equipment for any IP conversion or secondary streaming.
Network and security
As an HD-TVI analog camera, the H8B6M does not feature IP connectivity, ONVIF compliance, or embedded network security controls. Video transmission is analog over coaxial cable, eliminating network-based attack vectors at the camera level. Security posture depends entirely on physical cable routing and DVR access controls.
Environmental and durability ratings
The H8B6M carries an IP66 rating, confirming dust-tight construction and high-pressure water-jet resistance suitable for outdoor mounting. Operating temperature range is -22°F to 122°F (-30°C to 50°C), supporting most North American climates except extreme polar or desert edge conditions. The included junction box facilitates weatherproof field wiring and reduces moisture ingress at connection points. IP66 and motorized lens sealing ensure long service life in rain, snow, and salt-spray environments.
Power and installation notes
The H8B6M requires DC 12V power input. A dedicated power supply rated for 12V DC output must be installed at the recorder or power distribution box; typical camera current draw is moderate, but confirm power budget with your 12V PSU capacity. The included junction box simplifies field termination, accepting 12V in and coax video out. Standard bullet-form mounting hardware accommodates wall, corner, and soffit installation angles. Motorized lens control requires a compatible HD-TVI recorder with lens-control protocol support (typically via 4-pin connector on recorder).
What is included
- Speco H8B6M 4K bullet camera body
- 2.8-12mm motorized varifocal lens (pre-installed)
- Junction box for field wiring
- Standard mounting hardware
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Speco H8B6M during planning phases for outdoor surveillance projects where HD-TVI infrastructure is already in place. This camera delivers legitimate 4K resolution and motorized zoom without requiring dedicated PTZ wiring—a practical choice for integrators seeking cost-effective 4K capacity within existing coaxial networks.
Technical Highlights:
- 4K Native Resolution: 8MP (3840×2160) at 15 fps provides detailed forensic capability and supports license-plate and facial recognition tasks from a single fixed installation.
- Motorized Lens (2.8-12mm): Remote zoom and focus control from the recorder eliminates site revisits for FOV adjustments and simplifies multi-camera deployment logistics.
- IP66 + Extended Temperature: -22°F to 122°F operating range and dust/water resistance qualify this camera for exposed rooflines, perimeter walls, and harsh outdoor locations without protective housings.
- Integrated IR + WDR: Day/Night imaging and wide dynamic range processing maintain usable video across backlighting and mixed-light scenes.
Deployment Considerations:
- This is an HD-TVI analog camera—confirm your DVR or encoder supports HD-TVI input and motorized lens control before purchase. IP streaming requires a separate encoder.
- 12V DC power must be dedicated and properly sized; verify your power supply capacity exceeds typical camera draw to avoid voltage sag under peak current.
- The included junction box is a field asset—protect it from direct water spray and ensure proper strain relief on coax and power leads during installation.
The H8B6M is a solid fit for integrators maintaining HD-TVI infrastructure and needing 4K detail with motorized lens flexibility. Pair it with a compatible HD-TVI recorder and properly sized 12V supply, and you have a robust outdoor camera that will serve forensic and long-range monitoring duties reliably.
