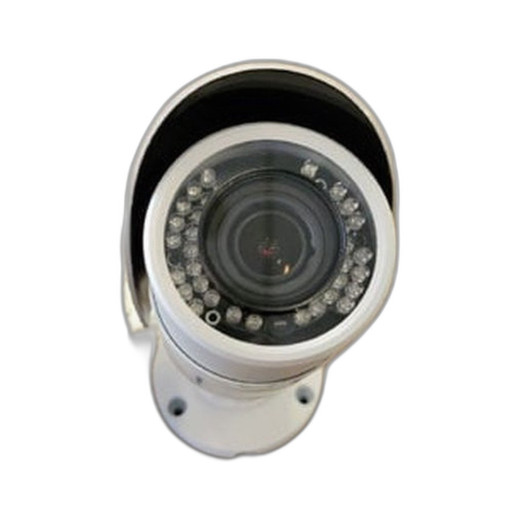

Speco Technologies VLB6 2MP HD-TVI Bullet Camera
Overview
The Speco Technologies VLB6 is a compact 2MP HD-TVI bullet camera designed for outdoor surveillance deployments requiring fixed or variable focal length imaging. This camera combines 1920x1080 resolution at 30fps with a 2.8-12mm varifocal lens to cover diverse scene requirements. The VLB6 delivers 2MP imaging performance in a sealed white housing rated IP67, making it suitable for wet environments and mounting locations exposed to dust and water ingress. HD-TVI transmission over standard coaxial cable simplifies integration into existing analog and hybrid surveillance systems.
When this is the correct choice
Select the VLB6 for outdoor bullet camera deployments where varifocal lens flexibility is needed and coaxial video transmission is preferred or already in place. This camera is well-suited for perimeter surveillance, parking areas, loading docks, and building facades where environmental sealing and temperature tolerance are requirements. The 2MP resolution and 2.8-12mm variable focal length balance field of view adaptability with installation simplicity. Choose this model when your system architecture supports HD-TVI video transport and you require infrared imaging capability.
When to choose a different model
If your deployment requires higher resolution (4MP or above), select a camera with greater pixel density. If your infrastructure mandates IP-based video transport (Ethernet), the VLB6's HD-TVI output will require a separate video encoder or hybrid DVR capable of HD-TVI conversion. If your environment demands ultra-wide dynamic range or specialized analytics (people counting, object tracking), evaluate cameras with advanced edge processors. For indoor-only applications in controlled temperature environments, smaller compact dome cameras may offer superior aesthetics and easier mounting.
Optics and field of view
The VLB6 includes a 2.8-12mm varifocal lens, providing 4.3x zoom range and field of view adjustment from wide-angle to narrow telephoto coverage without camera repositioning. Varifocal lens design allows on-site focal length optimization during installation, accommodating variable scene geometry and target standoff distances. The 1/2.9" CMOS sensor supports full 1920x1080 resolution across the lens zoom range, maintaining consistent image quality at any focal length setting.
Imaging performance and low light
The VLB6 delivers 2MP 1920x1080 imagery at 30 frames per second, providing smooth motion capture for general surveillance and event documentation. Wide Dynamic Range (WDR) processing enables simultaneous capture of bright and dark scene areas, reducing silhouetting and improving facial and vehicle recognition in mixed lighting. Integrated infrared illumination with day/night switching ensures continuous imaging during low-light and nighttime operation. The IP67 housing protects the sensor and optical path from moisture and environmental contamination that could degrade image clarity.
Analytics and edge capabilities
The VLB6 is a fixed-function camera without embedded motion analytics, artificial intelligence, or edge processing. Video analysis, event detection, and metadata extraction are performed by your connected DVR, hybrid recorder, or NVR platform via HD-TVI transmission. For deployments requiring edge-based people counting, object detection, or behavioral analytics, select a camera with integrated deep learning processors or consider video analytics software running on your backend platform.
Video encoding and streaming
The VLB6 uses HD-TVI video encoding, transmitting uncompressed or minimally compressed video over standard 75-ohm coaxial cable (RG59 or RG6). HD-TVI is compatible with DVRs, analog recorders, and hybrid systems equipped with HD-TVI video inputs. No H.264, H.265, MJPEG, or network streaming capability is present; video transport is coaxial only. Video quality scales with coaxial cable length and quality—professional-grade cabling is recommended for runs exceeding 200 feet.
Network and security
The VLB6 does not include network connectivity, ONVIF compliance, or IP-based video transport. This camera operates exclusively on coaxial video cabling, eliminating network-layer cybersecurity exposure but requiring physical cable routing and DVR-based recording. No firmware updates, remote configuration, or cloud connectivity are available. Operational security is managed entirely through your recording system's access controls and physical site security.
Environmental and durability ratings
The VLB6 carries an IP67 environmental rating, confirming complete dust ingress protection and immersion capability up to 1 meter for 30 minutes. This sealing level suits outdoor wall and soffit mounting in rain-prone climates, coastal salt-spray environments, and high-pressure wash zones. Operating temperature range of -22°F to 122°F (-30°C to 50°C) supports deployment in temperate, subtropical, and cold-climate regions. The white housing reduces solar heat absorption compared to black finishes, improving thermal stability in direct sunlight. Camera weight of 1.23 lbs enables single-person installation on standard bracket hardware.
Power and installation notes
The VLB6 operates on DC 12V power supplied via low-voltage wiring. A junction box is included with the camera, providing strain relief, power terminals, and protection for cable connections at the camera head. DC 12V power can be sourced from a standard 12VDC power supply, DVR auxiliary output, or hybrid recorder power distribution. Wire-in installation eliminates plug-connector complexity but requires proper power supply dimensioning and backup power consideration for continuous operation. Varifocal lens adjustment requires local physical access during commissioning; plan installation to allow technician access for focus and zoom optimization.
What is included
- VLB6 camera body with 2.8-12mm varifocal lens
- Junction box for power and cable management
- Hardware and mounting bracket (standard; confirm with distributor)
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
Having evaluated the Speco VLB6 during planning phases for hybrid analog-to-IP migration projects, I find this camera delivers solid 2MP imaging suited to traditional coaxial surveillance infrastructure. The VLB6 integrates efficiently into existing HD-TVI DVR systems without requiring network engineering or IP camera licensing. If you're operating a hybrid or analog-dominant system with established coaxial backbone, the 2.8-12mm varifocal lens provides practical flexibility without overcomplicating field installation.
Technical Highlights:
- Varifocal Lens (2.8-12mm): On-site focal length adjustment accommodates variable scene widths and target distances without camera relocation; 4.3x zoom range balances coverage flexibility with installation simplicity.
- IP67 Sealing: Complete dust protection and temporary immersion rating enable reliable outdoor mounting in wet climates and high-pressure wash environments.
- WDR Processing: Wide dynamic range imaging reduces contrast-related silhouetting, improving recognition accuracy in mixed sunlight and shadow scenarios.
- HD-TVI Video Transport: Coaxial cable compatibility leverages existing analog infrastructure; no network layer exposure and no IP configuration required.
Deployment Considerations:
- Confirm your DVR or hybrid recorder is HD-TVI compatible before ordering; analog-only systems cannot process VLB6 video without a separate HD-TVI decoder.
- Plan 12VDC power distribution and backup power support; the VLB6 has no PoE option and requires dedicated low-voltage wiring to each camera.
- Schedule technician time for varifocal lens focus and zoom commissioning on-site; this adjustment cannot be performed remotely and is critical for image sharpness.
For facilities with mature coaxial infrastructure and analog recording systems, the VLB6 offers a cost-effective path to 2MP imaging without network redesign. Pair it with quality coaxial cabling and proper 12VDC power supplies, and you'll have a durable outdoor camera rated for harsh environmental exposure.
