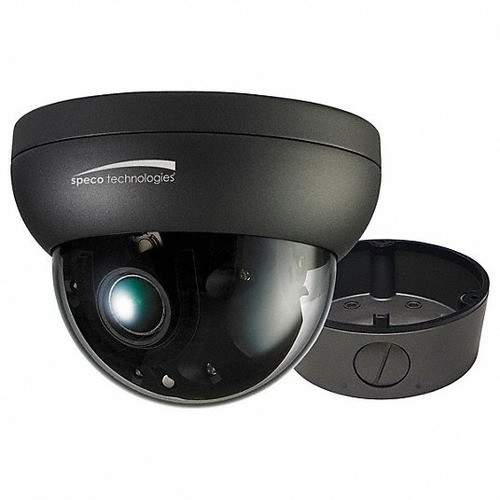

Speco Technologies HTD8TG 4K HD-TVI Dome Camera
Overview
The Speco Technologies HTD8TG is a fixed 4K HD-TVI dome camera designed for professional surveillance installations requiring high-resolution imaging in both indoor and outdoor environments. This 8-megapixel camera delivers 3864x2176 resolution at 15 fps, providing detailed scene capture for identification and forensic analysis. The HTD8TG combines HD-TVI transmission over standard coaxial infrastructure with modern sensor technology, making it an economical choice for upgrading legacy analog systems or deploying new HD-TVI networks. Gray housing and included junction box facilitate rapid installation in diverse mounting scenarios.
When this is the correct choice
Select the HTD8TG when you require 4K resolution over HD-TVI infrastructure without migrating to IP networks. This camera suits retail, parking, warehouse, and perimeter surveillance where coaxial cabling is already installed or preferred. The 2.8mm fixed lens provides a wide 110-degree field of view suitable for general-purpose area coverage. IP66 rating qualifies it for outdoor use with exposure to weather and dust. Day/night switching and integrated infrared deliver round-the-clock monitoring capability. TAA compliance makes it appropriate for U.S. federal and government procurement.
When to choose a different model
If your infrastructure is IP-native, consider native IP cameras instead; HD-TVI requires dedicated DVR or hybrid recorders. Facilities needing motorized zoom or pan-tilt control should evaluate PTZ models. If deployment temperature will exceed 122°F or drop below 14°F, verify thermal compatibility with your climate zone. Applications requiring audio, edge analytics, or storage beyond the camera itself should evaluate systems-level architecture separately.
Optics and field of view
The HTD8TG features a fixed 2.8mm lens delivering a wide horizontal field of view suitable for lobby, reception area, and general perimeter monitoring. Fixed focal length eliminates lens servo complexity and cost while providing consistent image geometry across installations. The wide aperture supports low-light performance in conjunction with the 1/2.0" CMOS sensor.
Imaging performance and low light
This camera captures 8-megapixel images at 3864x2176 pixels, providing four times the resolution of 1080p HD-TVI cameras. At 15 fps frame rate, it delivers smooth video for forensic review and real-time monitoring. The 1/2.0" CMOS sensor combined with Day/Night operation and integrated IR illumination enables imaging in low-ambient conditions. Wide Dynamic Range (WDR) processing addresses backlit scenes and mixed lighting environments, improving detail recovery in challenging brightness gradients. Night vision via onboard IR provides monitoring when ambient light is minimal or absent.
Analytics and edge capabilities
The HTD8TG supports ONVIF Profile I, enabling integration with compatible management and analytics platforms. Edge analytics or advanced event processing is handled by compatible DVR or NVR systems, not the camera itself; verify your recorder supports desired detection rules or metadata extraction.
Video encoding and streaming
HD-TVI video transmission occurs over standard 75-ohm coaxial cable, delivering uncompressed or lightly compressed 4K video directly to compatible HD-TVI DVRs. Hybrid recorders can demultiplex the HD-TVI signal for archival and playback. Bandwidth and storage are managed at the recorder level, not the camera.
Network and security
The HTD8TG operates as an analog HD-TVI device; traditional network security considerations (encryption, authentication, firmware updates) do not apply. Coaxial transmission is inherently isolated from IT networks, reducing attack surface but also limiting remote access and cloud integration unless a network bridge device is introduced at the recorder.
Environmental and durability ratings
IP66 rating confirms protection against sustained water jets and temporary submersion, qualifying the HTD8TG for outdoor mounting in rain, snow, and wet environments. Operating temperature range of 14°F to 122°F covers most temperate climates; verify compliance with your deployment zone extremes. Gray housing provides neutral aesthetics and thermal stability in direct sunlight.
Power and installation notes
The HTD8TG requires DC 12V power input at 5W consumption, typical for HD-TVI cameras. Low power draw simplifies PSU sizing and allows extended operation from backup batteries if needed. Included junction box accelerates field wiring and provides organized termination for power and coaxial connections. Standard dome mount points accept common wall and ceiling brackets. A single coaxial run carries both video and, where supported by the recorder, power transmission (some systems).
What is included
- Speco Technologies HTD8TG 4K HD-TVI dome camera (gray housing)
- Junction box for power and signal termination
- Mounting hardware for standard dome installation
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During a mixed-resolution surveillance retrofit at a mid-market distribution center, we deployed the HTD8TG alongside existing 1080p cameras to prioritize receiving dock and inventory areas without replacing all coaxial runs. The 4K output from the HTD8TG model noticeably improved facial recognition and license plate capture compared to legacy 720p TVI cameras, while the IP66 weather rating held up through a harsh winter season without image degradation.
Technical Highlights:
- 4K resolution at 8MP (3864x2176): Four times the pixel density of 1080p HD-TVI, enabling forensic-grade detail for identity and evidence documentation without network infrastructure overhaul.
- Day/Night with integrated IR: Automatic switching and onboard infrared illumination provide 24/7 coverage; no external IR ring light required in most scenarios, simplifying outdoor installations.
- Wide Dynamic Range (WDR): Compensates for backlit scenes and uneven lighting, improving usability in loading docks, parking structures, and mixed indoor-outdoor transitions.
- IP66 environmental rating: Suitable for exposed outdoor mounting with direct water and dust exposure; validates use in exposed perimeter, weather-prone regions, and uncontrolled environments.
Deployment Considerations:
- Confirm your DVR or hybrid recorder supports 4K HD-TVI input; older or budget models may downscale to 1080p, negating resolution benefit. Check recorder specs before finalizing the camera choice.
- Low power consumption (5W) and straightforward coaxial cabling make this camera ideal for retrofit projects where IT infrastructure or PoE availability is limited.
- The fixed 2.8mm lens delivers wide coverage suitable for general area monitoring; if you require zoom or pan-tilt capability, explore motorized options from Speco's HD-TVI lineup.
The HTD8TG represents a pragmatic upgrade path for facilities committed to coaxial infrastructure and seeking 4K detail without wholesale system replacement. Its IP66 durability, low power footprint, and straightforward installation make it a solid choice for outdoor perimeter and general surveillance applications where HD-TVI is the preferred transport medium.
