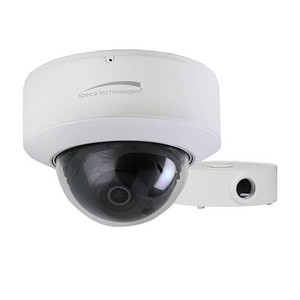

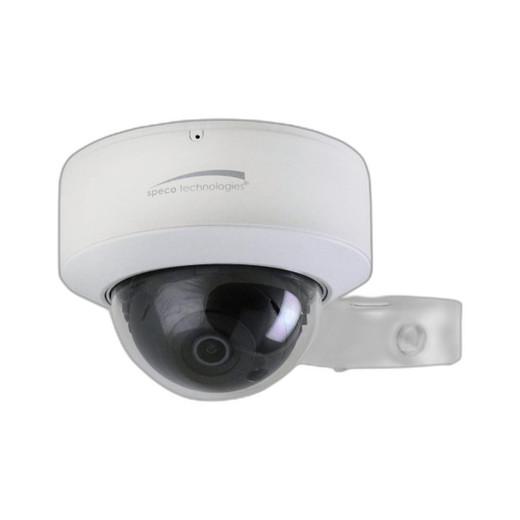

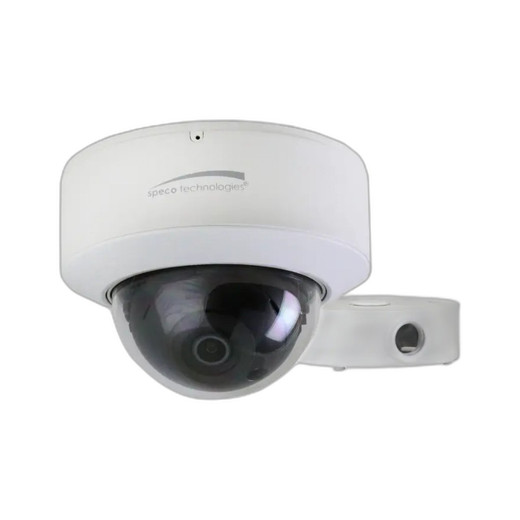

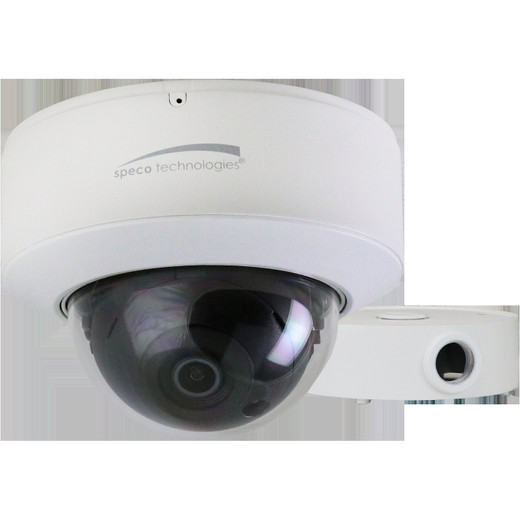

Speco Technologies O5D2 5MP IP Dome Camera with IR & Analytics
Overview
The Speco O5D2 is a fixed 5MP dome camera engineered for surveillance networks requiring embedded analytics and reliable low-light performance. With a 1/2.7" CMOS sensor capable of 2592x1944 resolution at 30 fps, this camera combines wide dynamic range imaging with face detection and abandoned object analytics to support proactive security operations. The O5D2 is built for both indoor and outdoor deployment in moderate vandal-risk environments, backed by IP67 weatherproofing and IK10 vandal resistance. This IP camera is a practical fit for Speco Technologies surveillance ecosystems integrating multiple vendors.
When This Is the Correct Choice
Select the O5D2 when you need a fixed-position dome camera with onboard analytics capabilities at mid-tier resolution. It excels in retail, office, and light industrial settings where face detection and object tracking enhance incident response. The camera's true day/night capability and IR illumination support 24/7 monitoring without external lighting. ONVIF Profile T compatibility ensures broad VMS integration, making it practical for mixed-vendor security ecosystems.
When to Choose a Different Model
If your deployment requires pan-tilt-zoom capability, higher resolution beyond 5MP, or extreme temperature operation below -40°F, evaluate higher-megapixel or PTZ alternatives from the same family. Applications demanding advanced deep learning analytics or thermal imaging should consider specialized camera lines. For indoor-only, non-vandal environments with minimal analytics requirements, lower-cost fixed cameras may offer better value.
Key Features & Specifications
- 5MP Resolution (2592 × 1944): Delivers sufficient pixel density for reliable face detection at typical indoor lobby and corridor distances—roughly 15–25 feet—without the storage and bandwidth overhead of higher-megapixel sensors. Captures 30 fps continuously, sustaining real-time playback and forensic review without dropped frames.
- H.265 Compression: Reduces file size and bandwidth consumption 40–60% compared to H.264 at equivalent visual quality. On 24/7 multi-camera recorders, this translates directly to longer retention windows or lower storage infrastructure costs.
- Fixed 2.8mm Lens: Provides a wider field of view suitable for lobby, corridor, and open-area monitoring. The focal length balances situational awareness across broad areas with sufficient detail for face detection at typical indoor and semi-outdoor distances—no motorized refocus needed, reducing complexity and failure points.
- True Day/Night with Integrated IR Illumination: The camera automatically switches to infrared mode in low light, enabling surveillance through complete darkness without external fill lighting. This eliminates dependency on environmental light control and reduces deployment costs in unlit areas like parking structures or exterior eaves.
- 1/2.7" CMOS Sensor with WDR: Wide dynamic range processing handles high-contrast scenes—bright windows paired with shadowed interiors—while maintaining detail in both light and dark regions. Critical in retail and office environments where windows create strong backlighting.
- Embedded Face Detection & Abandoned Object Analytics: Processing these tasks at the edge reduces bandwidth and storage overhead compared to centralized VMS analytics. Alerts trigger on detection, accelerating response times and reducing false alarms from non-relevant motion.
- PoE Power (802.3af): Draws under 13W via standard 802.3af PoE, eliminating the need for a separate power supply and simplifying cabling—one cable, one switch port per camera. Reduces installation labor and voltage drop risk in long cable runs.
- IP67 Weatherproofing: Protects against dust ingress and submersion in up to 1 meter of water for 30 minutes. Suitable for semi-outdoor eaves, covered porches, and transitional spaces. Not rated for permanent underwater or extreme spray conditions—for those, upgrade to higher IP ratings or alternative housings.
- IK10 Vandal Resistance: Withstands impacts up to 20 joules without compromise. Essential in high-traffic or detention facility deployments; standard domes scratch easily in lower-vandalism environments.
- ONVIF Profile T Certification: Guarantees compatibility with third-party VMS platforms including Milestone, Genetec, and others. Eliminates vendor lock-in on software side and permits mixed-camera deployments across multiple manufacturers.
- NDAA Compliance: Confirms the O5D2 meets U.S. federal procurement standards for absence of Chinese components in critical supply chains. Required for government contracts and sensitive facility upgrades.
Integration & Compatibility
The O5D2 integrates directly into any ONVIF Profile T–compliant VMS, including Milestone XProtect, Genetec Security Center, and others. Multi-stream capability allows simultaneous delivery of different resolution and frame-rate combinations to different clients—for example, full 5MP at 30 fps for forensic review while streaming 1MP at 15 fps for mobile viewing. Refer to your network video recorder documentation for exact codec support and storage planning; H.265 may require firmware updates on older systems.
Installation & Deployment Context
The dome form factor and IP67 rating suit indoor ceilings, semi-outdoor covered areas, and light-duty exterior mounting. Mount to standard junction boxes or pendant kits (sold separately). For warehouse or high-bay installations, consider pendant mounts to improve viewing angle and reduce glint from overhead fixtures. PoE simplification means your PoE switches handle both power and signal—verify your switch has sufficient budget for the full camera count before procurement.
Frequently Asked Questions
Q: Is the O5D2 NDAA Section 889 compliant?
A: Yes. The O5D2 meets U.S. federal procurement standards for absence of Chinese components in critical supply chains, confirmed by Speco Technologies documentation.
Q: What VMS platforms work with the O5D2?
A: Any ONVIF Profile T–compliant platform, including Milestone XProtect, Genetec Security Center, Bosch Divar, and others. Confirm your VMS supports H.265 decoding if you plan to use that codec; H.264 and MJPEG are universally supported.
Q: How far does the IR illumination reach on the O5D2?
A: Speco does not publish a specific IR range in available documentation. Test range varies with lens focal length, scene reflectivity, and target contrast. The 2.8mm wide-angle lens typically delivers usable IR coverage across a 20–30-foot viewing area in typical office or retail environments.
Q: Can I use the O5D2 outdoors full-time?
A: Yes, within limits. The IP67 rating and IK10 vandal rating support semi-outdoor eaves, covered porches, and transitional spaces. However, the camera is not sealed for extreme temperature swings below -40°F or continuous direct rain spray. For exposed exterior mounting, consider sealed junction boxes or weatherproof conduit enclosures.
Q: How much power does the O5D2 draw?
A: The O5D2 draws under 13W via standard 802.3af PoE. This allows safe deployment on budget-limited PoE switches without risk of port oversubscription.
Q: Does the O5D2 support two-way audio?
A: No two-way audio capabilities are listed in available documentation. The O5D2 is a video-only analytics camera; if audio is required, upgrade to a higher-tier model in the Speco line or add an external audio interface.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The O5D2 is a solid mid-tier fixed dome for environments where 5MP resolution and edge analytics justify the cost. The combination of H.265 compression and embedded face detection puts this camera in a practical sweet spot for retail and office deployments where bandwidth and storage are constraints but PTZ capability isn't needed. The 1/2.7" CMOS sensor with true WDR is the real differentiator here—it'll hold detail in high-contrast scenes without the firmware tuning headaches you sometimes encounter on cheaper sensors.
Technical Highlights:
- H.265 Compression: Expect 40–60% bandwidth reduction vs. H.264 at the same visual quality. On a 16-camera retail chain running 24/7, this saves roughly 2–3 TB per month in storage—compounding over time on your NVR or cloud bill.
- Embedded Face Detection & Abandoned Object Analytics: Processing at the edge means alerts fire locally before data reaches your VMS. Reduces false positives and cuts network traffic compared to server-side analytics. Pair this with your VMS's secondary rules engine for complex event scenarios.
- IP67 + IK10: The IP67 rating handles water jets and brief submersion; the IK10 vandal rating absorbs impacts that would crack cheaper dome shells. This resilience matters in high-traffic retail or education environments where dome cameras take accidental bumps.
Deployment Considerations:
- The fixed 2.8mm lens provides wide situational awareness but trades off facial detail at distances beyond 25 feet. If your deployment prioritizes face recognition at 40+ feet, step up to a 4mm or 6mm variant or a higher-megapixel model.
- IR range is not published—test in your specific environment before committing to dark perimeter areas. The 2.8mm wide angle spreads IR illumination across a larger area, reducing depth penetration compared to longer focal lengths.
- PoE power draw is under 13W, so port budgeting is straightforward on any 802.3af switch. No power injection or midspan supplies needed.
- Semi-outdoor IP67 rating means no permanent submersion or extreme spray exposure. For canopy eaves or loading dock overhangs, you're good. For full external mounting, plan for conduit protection or higher IP-rated housing alternatives.
The O5D2 is a sensible choice for multi-location retail, offices, and light industrial settings where you need 24/7 low-light coverage without IR spotlight washout, and where embedded analytics reduce your VMS processing load. It's not the choice for high-resolution forensics, extreme temperature zones, or PTZ tracking—but for its segment, it delivers reliable, cost-effective coverage with industry-standard integration.
