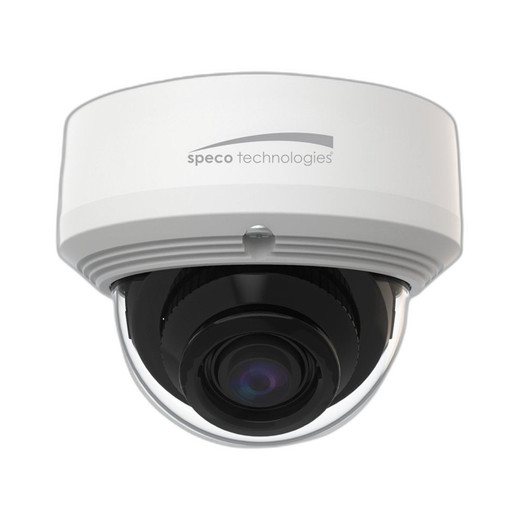

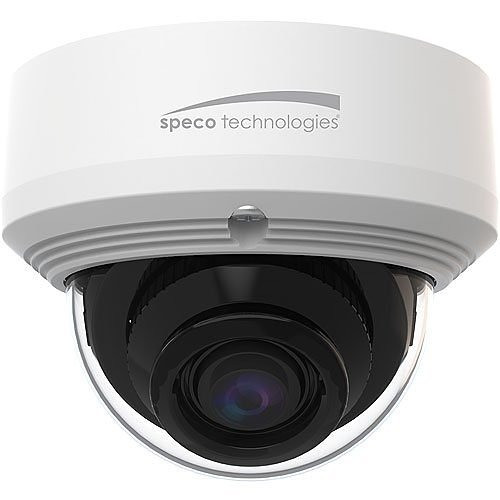

Speco Technologies O5D1G 5MP IP Vandal-Resistant Dome Camera
Overview
The Speco Technologies O5D1G is a 5MP IP dome camera engineered for high-security environments where vandal resistance and reliable image capture are operational requirements. This camera delivers 2880x1620 resolution at 30fps, housed in an IK10-rated vandal-resistant enclosure suitable for indoor and outdoor deployment. The O5D1G combines True WDR imaging, H.265/H.264 compression, and edge-based analytics including motion detection, line crossing, intrusion detection, and vehicle detection—enabling security integrators to deploy intelligent surveillance without reliance on external processing infrastructure.
When this is the correct choice
Select the O5D1G when your deployment requires impact-resistant housing in high-traffic or hostile environments—transit stations, public facilities, detention areas, and correctional institutions. The IK10 vandal rating protects against repeated deliberate impact. PoE power delivery via 802.3af simplifies installation in retrofit applications where DC 12V runs are impractical. The built-in analytics suite suits sites where you need motion, line crossing, intrusion, and vehicle detection without external edge devices or VMS licensing overhead. IP66 rating handles outdoor mounting under eaves or light precipitation; true day/night operation with microphone input supports audio correlation for incident review.
When to choose a different model
If your site requires panoramic or multi-sensor coverage, PTZ capability, or lens flexibility (varifocal or wide-angle specialty optics), evaluate alternative form factors. For very low-light outdoor sites requiring extended infrared range (>30m), confirm IR specifications against your deployment distance. If your VMS mandates specific profile compliance beyond ONVIF Profile T, consult compatibility matrices. The O5D1G is optimized for fixed-position, medium-range surveillance; it is not a panoramic, PTZ, or extreme low-light specialist.
Optics and field of view
The camera integrates a fixed lens optimized for dome form factor. Precise focal length and field of view details are available in technical documentation. The 1/2.7" CMOS sensor captures the full 5MP resolution across the 2880x1620 native frame size, supporting standard 16:9 aspect ratio output.
Imaging performance and low light
True Day/Night operation with mechanical IR cut filter provides automatic color/monochrome transition. True WDR (Wide Dynamic Range) processing handles scenes with mixed bright and dark regions—common in entryways, loading docks, and backlit outdoor areas. The sensor's 1/2.7" size and fixed optics determine baseline low-light sensitivity; night vision via infrared enables operation in zero ambient light. Operating temperature range of -22°F to 140°F ensures functionality across seasonal and climate-controlled facility variations.
Analytics and edge capabilities
The O5D1G includes on-camera motion detection, line crossing detection, intrusion detection, and vehicle detection. These analytics execute at the edge—no external GPU or secondary processing required—reducing latency and bandwidth for alert-driven workflows. Motion and line-crossing events can trigger recording, VMS alerts, or third-party webhooks. Vehicle detection enhances parking lot and perimeter monitoring. Integrators can enable/disable analytics per camera without configuration complexity.
Video encoding and streaming
Dual H.265 and H.264 codec support reduces bandwidth and storage requirements compared to H.264-only systems. H.265 achieves approximately 50% bitrate reduction at equivalent quality, critical for sites with bandwidth constraints or large camera deployments. The camera streams at 30fps across all supported resolutions. Multi-stream output allows simultaneous archival (H.265 long-term) and live-view (H.264 compatibility) without re-encoding penalty.
Network and security
ONVIF Profile T compliance ensures interoperability with standards-based VMS platforms and third-party integrations. Ethernet connectivity via RJ45 supports both PoE power and IP data on a single cable run. Network security details (802.1X, encryption, signed firmware) should be confirmed in the device datasheet. Audio input via built-in microphone allows correlated audio capture for incident investigation.
Environmental and durability ratings
IP66 rating protects against dust ingress and water spray—suitable for outdoor mounting under architectural protection or light weather exposure. IK10 vandal resistance withstands repeated impact and deliberate tampering, meeting EN 62262 standards for high-security applications. The dome form factor and compact 1.4 lb weight allow flush ceiling or wall mounting in confined spaces. Wide operating temperature range (-22°F to 140°F) ensures year-round operation in unheated or non-climate-controlled areas.
Power and installation notes
PoE power via 802.3af delivers 3.92W maximum consumption—well within standard PoE budget, allowing daisy-chaining on lower-budget switches when required. Alternatively, DC 12V auxiliary power supply is available for non-PoE infrastructure. The minimal power draw extends UPS runtime in backup scenarios. Compact dome housing simplifies installation in tight ceiling cavities; pre-drilled mounting provisions support standard M6 suspension hardware. Single RJ45 cable eliminates separate power and audio runs on greenfield deployments.
What is included
Contact us for package details.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Speco O5D1G in retrofit high-security environments where vandal resistance and edge analytics are non-negotiable. This camera addresses a genuine gap: IK10-rated domes with onboard vehicle and intrusion detection at the 5MP tier are uncommon. The combination of True WDR, H.265 encoding, and PoE simplicity makes the O5D1G operationally efficient without sacrificing hardness.
Technical Highlights:
- IK10 Vandal Rating: Proven in correctional and transit deployments; withstands repetitive impact without image degradation or housing failure.
- Edge Analytics Suite: Motion, line crossing, intrusion, and vehicle detection eliminate need for external edge devices in medium-scale installations.
- H.265 Encoding: 50% bandwidth reduction vs. H.264 at equivalent quality; critical for deployments with 20+ cameras on constrained networks.
- PoE 802.3af: 3.92W draw allows flexible switch selection and simplified cable management on retrofit projects.
Deployment Considerations:
- Confirm lens and field-of-view specs against your site layout before ordering; fixed optics require precision mounting angles.
- Test analytics tuning (motion sensitivity, line-crossing thresholds) during commissioning to minimize false alerts in high-traffic areas.
- Pair with PoE switches rated for 60W+ budgets if deploying clusters of O5D1G units; 3.92W per camera allows dense configurations.
- Use H.265 recording for long-term archive; maintain H.264 stream for live-view and third-party dashboard compatibility.
The O5D1G is a reliable, purpose-built vandal-resistant 5MP platform. It excels in correctional facilities, transit stations, and public-access areas where impact protection and edge intelligence justify the dome form factor. Sizing, lens verification, and analytics tuning are essential pre-deployment steps. Recommended for integrators familiar with ONVIF workflows and edge-based detection commissioning.
Available in White.
