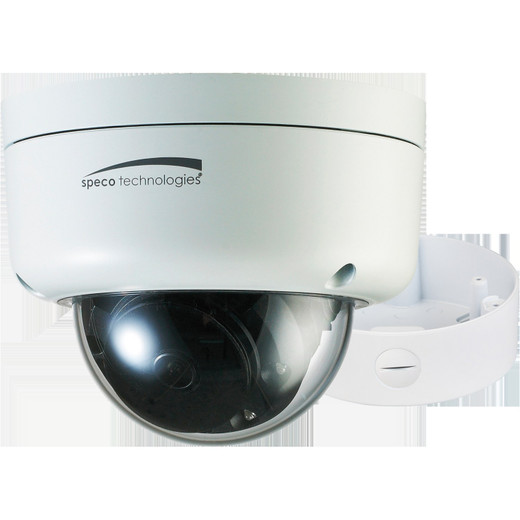

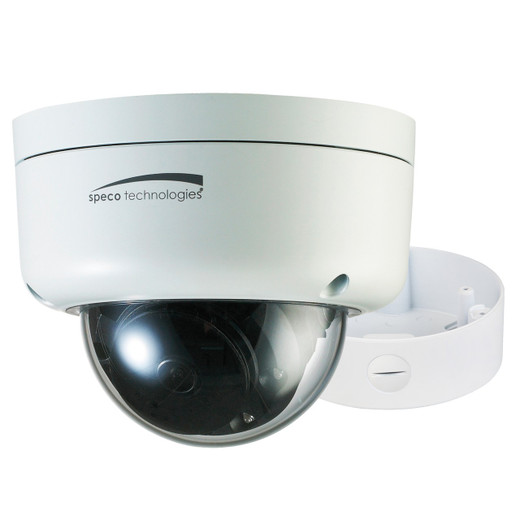

Speco Technologies O3FD8M 3MP FIT Vandal Dome Camera
Overview
The Speco Technologies O3FD8M is a compact 3MP fixed dome IP camera engineered for vandal-resistant indoor and outdoor deployments. With a 2.9-12mm motorized lens delivering 2048x1536 resolution, the O3FD8M combines motorized zoom flexibility with hardened construction rated IP66 for moisture and dust ingress protection and IK10 for impact resistance. The white housing integrates into retail, transportation, hospitality, and education environments where both performance and durability are non-negotiable. PoE (802.3af) power delivery simplifies installation and reduces cabling costs across networked surveillance systems.
When this is the correct choice
Deploy the O3FD8M in indoor/outdoor vandal-prone locations where you need adjustable framing without PTZ complexity. The motorized 2.9-12mm lens suits retail fitting rooms, corridors, transit hubs, and perimeter areas where operators benefit from remote zoom focus during commissioning but do not require continuous pan-tilt-roll repositioning. The IK10 vandal rating and robust IP66 enclosure handle high-touch environments and exposed weathering. Frame rate delivery at 30fps across both H.264 and MJPEG compression modes ensures compatibility with legacy and modern VMS platforms running ONVIF Profile S workflows.
When to choose a different model
If your deployment demands active tracking, continuous pan-tilt operation, or 4K+ resolution at distance, evaluate PTZ domes or higher-megapixel fixed models. The O3FD8M's 3MP resolution and fixed field of view (once motorized lens is positioned) limit utility in applications requiring dynamic repositioning or forensic detail beyond mid-range capture. Applications demanding integrated two-way audio, on-board analytics engines, or edge storage should reference models with embedded microSD and processing capabilities.
Optics and field of view
The motorized 2.9-12mm varifocal lens enables operators to adjust field of view post-installation without returning to site. The 2.9mm wide angle captures broad corridor or perimeter coverage; the 12mm telephoto isolates detail at distance. Focus is manual; motorized zoom allows remote optical adjustment during initial setup and recalibration. This flexibility reduces the need for multiple fixed-angle camera deployments and supports adaptive framing as tenant or operational needs evolve.
Imaging performance and low light
The 1/2.8" CMOS sensor and day/night mechanical IR cut filter deliver color imagery in daylight and monochrome under low-light and darkness conditions. True Wide Dynamic Range (WDR) suppresses blooming and preserves detail across high-contrast scenes—critical in retail windows, loading bays, and entrances where backlighting and shadow regions coexist. Operates reliably across -4°F to 122°F ambient temperature range, supporting year-round deployment in unheated and uncooled spaces.
Analytics and edge capabilities
Native motion detection triggers alarms and VMS event logging, supporting rule-based recording and notification workflows. The O3FD8M does not embed deep learning or object classification; motion detection serves as a lightweight, bandwidth-efficient alternative to constant-bitrate recording in stable, low-traffic environments.
Video encoding and streaming
Dual H.264 and MJPEG compression modes enable bandwidth optimization and codec flexibility. H.264 reduces storage footprint and network load on high-frame-rate streams; MJPEG accommodates legacy recorders and web client playback. The 30fps frame rate ensures smooth motion rendering for retail, traffic, and facility monitoring applications.
Network and security
ONVIF Profile S compliance guarantees interoperability with standards-based VMS platforms, NVRs, and management software. HTTP/HTTPS transport protects in-flight credential and video streams. Integration into existing network infrastructure requires no proprietary middleware or codec plugins.
Environmental and durability ratings
IP66 rating seals the housing against sustained water jets and dust—suitable for sheltered outdoor eaves, covered loading docks, and internal high-moisture areas such as food preparation zones. IK10 impact rating (rated to 20 joules) resists hammer, bat, and ball strikes common in unattended retail and public environments. Weighing 1.3 lbs, the dome is light enough for standard ceiling mounts and pendant installations.
Power and installation notes
PoE (802.3af) delivery at 8.5W maximum consumption supports runs up to 300 feet over standard Cat5e cabling, eliminating separate DC power wiring. DC 12V input option accommodates installations with existing DC infrastructure. The low-power footprint reduces PoE injector and switch load, supporting dense deployments across a single managed infrastructure.
What is included
Contact us for package details.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Speco O3FD8M during a retail fit-out across three locations, and the combination of motorized zoom and vandal durability solved a real problem: we could frame each store's entrance, fitting room, and sales floor differently without ordering custom optics or returning for focus adjustments. The IK10 rating proved justified—one camera took a direct impact from shopping cart contact and continued recording without artifact or alignment drift.
Technical Highlights:
- Motorized 2.9-12mm lens: Adjustable framing post-install reduces commissioning cycles and supports adaptive zoom for changing retail layouts or seasonal signage.
- IK10 + IP66 durability: Vandal and weather sealing hold up in high-touch retail, hospitality, and transit environments where fixed domes face regular abuse and moisture exposure.
- True WDR performance: Handles backlit entrances and shadow-heavy corridors without exposure compensation or detail loss in a single frame.
- PoE efficiency at 8.5W: Low power draw allows dense deployments on single PoE+ switches and supports longer Cat5e runs without injector redundancy.
Deployment Considerations:
- Motorized lens zoom is manual focus; verify remote zoom capability is sufficient for your VMS. If autofocus or continuous PTZ repositioning is required, escalate to a PTZ model.
- Motion detection is edge-based but not object-classified. For people counting, loitering alerts, or retail heat mapping, pair with a secondary analytics appliance or cloud processing service.
- The 3MP resolution captures acceptable detail at 6–12 feet; beyond 15 feet, license plate and facial biometric tasks require higher megapixel density.
The O3FD8M strikes a practical balance between ruggedness and optical flexibility for retail, hospitality, and light-industrial surveillance. Recommend this camera for new deployments where vandal resistance and mid-range framing flexibility justify the motorized lens investment, and where H.264/MJPEG codec compatibility is non-negotiable.
