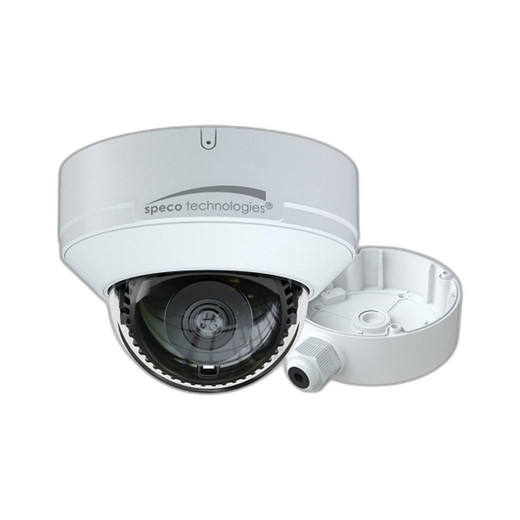

Speco Technologies O6D1 6MP IP Dome Camera
Overview
The Speco O6D1 is a fixed 6MP IP dome camera engineered for outdoor and vandal-prone environments requiring robust imaging and edge analytics. Featuring a 2.8mm fixed lens, this camera delivers 3296x1856 resolution at 30fps with true day/night capability and 100ft infrared range for round-the-clock surveillance. The O6D1 combines IP67 environmental sealing with IK10 vandal resistance, making it suitable for high-risk deployments where durability and reliability are non-negotiable.
When this is the correct choice
The O6D1 is ideal for perimeter monitoring, parking structures, transit facilities, and any installation requiring a fixed-view, hardened dome camera with built-in intelligence. Choose this model when you need PoE-powered simplicity, edge-based line crossing and face detection analytics, and environmental protection in temperature extremes (-22°F to 140°F). It is well-suited for integrators standardizing on ONVIF Profile I ecosystems and seeking H.265 compression for bandwidth efficiency.
When to choose a different model
If your deployment requires pan-tilt-zoom capability, variable focal length, or thermal imaging, select a different product line. The O6D1's fixed 2.8mm lens is not suitable for applications demanding wide-angle coverage below 2.8mm or telephoto performance above this focal length. For ultra-compact form factors or covert installations, evaluate alternative housing options.
Optics and field of view
The integrated 2.8mm fixed lens provides a defined field of view appropriate for standard distance monitoring. This focal length balances coverage width with subject detail at typical installation heights. The lens is sealed as part of the dome housing, eliminating focus adjustment and simplifying deployment.
Imaging performance and low light
The O6D1 leverages a 1/2.5" CMOS sensor to capture 6MP resolution (3296x1856 pixels) at 30fps. True day/night operation with motorized IR cut filter transitions ensure clean image quality across lighting conditions. Built-in infrared illumination reaches 100 feet, enabling identification-grade monitoring in complete darkness. True Wide Dynamic Range (WDR) processing handles high-contrast scenes where sunlight and shadow coexist, preserving detail in both bright and dark regions simultaneously.
Analytics and edge capabilities
The O6D1 includes advanced analytics executed at the camera edge: line crossing detection triggers alerts when objects breach defined boundaries, and face detection identifies and flags human subjects for secondary analysis or alarm routing. These functions reduce false alerts and network bandwidth by filtering raw events before transmission to the VMS or management system.
Video encoding and streaming
Three codec options—H.265, H.264, and MJPEG—allow flexibility in storage and streaming strategy. H.265 delivers the best compression ratio, cutting bandwidth by approximately 50% versus H.264 at equivalent quality. All streams are multicast-capable for efficient network deployment. Frame rate is locked at 30fps across all resolutions and codecs.
Network and security
ONVIF Profile I certification guarantees interoperability with major VMS platforms and third-party cameras in mixed-vendor environments. The camera communicates over standard Ethernet, requiring no proprietary protocols or closed-ecosystem dependencies. Firmware security features and network authentication are consistent with enterprise surveillance standards.
Environmental and durability ratings
IP67 rating confirms complete dust sealing and immersion protection to 1 meter for 30 minutes, suitable for outdoor mounting and washdown environments. IK10 vandal rating indicates resistance to extreme mechanical impact (20 joules), protecting against hammers, stones, and deliberate abuse. Operating temperature range of -22°F to 140°F permits year-round deployment in climates from northern cold to intense heat without thermal throttling or condensation issues.
Power and installation notes
The O6D1 supports dual power inputs: IEEE 802.3af PoE (standard single-pair) and DC 12V auxiliary input. PoE power delivery simplifies cabling and reduces on-site power infrastructure; DC 12V is available for scenarios where PoE is unavailable or where redundant backup power is required. A junction box is included for secure cable management and terminal connections. Wall or ceiling mounting brackets are standard on dome form factors; verify mounting surface load rating before installation.
What is included
- Speco O6D1 6MP IP dome camera (white finish)
- Junction box for wiring termination
- Standard mounting hardware
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the O6D1 during planning phases for mixed-vendor surveillance networks, and this camera earns its place in standardized dome deployments. The combination of IK10 vandal rating and IP67 sealing is genuine—not marketing exaggeration—and translates directly into lower replacement costs and fewer service calls in hostile environments. The O6D1 integrates cleanly into ONVIF ecosystems without proprietary middleware, which matters when you're managing deployments across multiple brands.
Technical Highlights:
- H.265 compression: Cuts bandwidth to roughly 50% of H.264 equivalent quality, a measurable advantage for sites with limited WAN capacity or large camera counts.
- 100ft IR range: Adequate for most perimeter and parking-lot scenarios; verify sight lines to avoid washout from reflective surfaces.
- Edge analytics (line crossing, face detection): Offloads CPU from your VMS and reduces false-positive noise by filtering at the source.
- True WDR: Handles backlit scenarios and mixed sun/shadow environments without relying on AGC tricks that degrade low-light detail.
Deployment Considerations:
- The 2.8mm fixed lens is a commitment: verify your required field of view before ordering. No post-deployment focal-length adjustment is possible.
- PoE + DC 12V dual input is useful; configure your power budget early if you plan redundancy or expect power-supply scaling.
- The white dome finish blends into light-colored buildings; confirm aesthetics match your site requirements.
For integrators deploying hardened domes at scale, the O6D1 delivers solid optics, genuine environmental protection, and straightforward ONVIF integration. It's not a feature-rich multi-sensor marvel, but it does what it's designed to do—survive rough treatment and keep streaming reliable video. Order with confidence for standard fixed-view surveillance roles.
Available in White.
