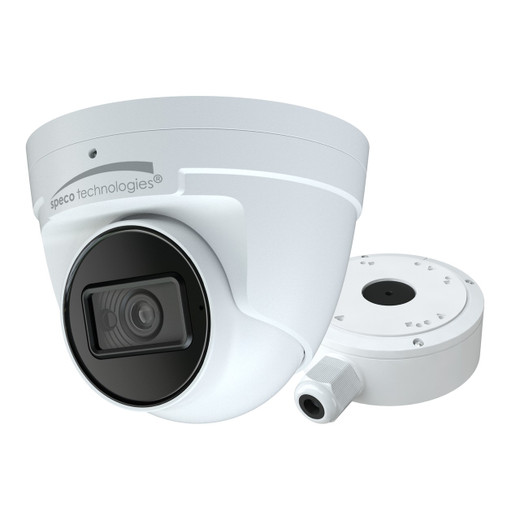

Speco Technologies O6T1 6MP IP Turret Camera
Overview
The Speco Technologies O6T1 is a fixed turret IP camera designed for straightforward deployment in retail, office, and outdoor perimeter surveillance. This 6MP (3296x1856) camera delivers 30 fps via a 1/2.5" CMOS sensor paired with a fixed 2.8mm lens, balancing wide-angle coverage with compact installation footprint. The O6T1 combines PoE power delivery, IP67 environmental sealing, embedded edge analytics, and H.265 compression into a single unit—eliminating the need for separate power supplies or external processing hardware in small- to mid-scale surveillance builds.
Key Features
- 6MP resolution (3296x1856) at 30 fps: Delivers sufficient detail for facial recognition and object identification at moderate distances—typical for retail checkout zones, building entrances, and warehouse aisle monitoring. The fixed 30 fps frame rate is adequate for normal-speed activity; skip this model if you need 60+ fps for high-speed vehicle or machinery tracking.
- H.265 (HEVC) compression support: Reduces bitrate and storage footprint roughly 40–60% compared to H.264 on identical scenes. On a 24/7 four-camera system over 30 days, the difference between H.265 and H.264 can easily represent 500+ GB of reclaimed NVR capacity—material savings in budget-constrained deployments.
- Fixed 2.8mm lens: Provides a wider horizontal field of view suitable for general area surveillance without remote focus management. Installation is faster and more consistent than varifocal alternatives, reducing on-site lens tuning errors across multi-site rollouts.
- PoE (IEEE 802.3af) power: Draws under 13W, meaning the O6T1 won't strain budget switches or require dedicated PoE injectors. A single Ethernet cable supplies both power and data—no separate 12VDC runs, no relay boards, no second install visit.
- IP67 environmental rating: Survives direct rain, dust, and temporary submersion up to 1 meter for 30 minutes. Mount it on a covered dock, under an eave, or in a spray-wash environment adjacent to water. The operating range of -30°C to +60°C (-22°F to 140°F) handles year-round temperate climates; tropical or arctic deployments need thermal review.
- Infrared illumination (IR) at 100 feet: Built-in 850nm IR extends usable surveillance into complete darkness without external lighting—no separate IR array, no additional wiring. Expect effective recognition range of roughly 30–50 feet under typical mounting heights; 100 feet is the raw illuminate distance, not recognition distance.
- Day/Night with True WDR (Wide Dynamic Range): Automatically switches between color (day) and monochrome (night) and balances exposure in high-contrast scenes (e.g., backlit entry doors, windows with glare). Reduces blown-out highlights and crushed shadows in mixed lighting without manual adjustment.
- Embedded line crossing and face detection analytics: Triggers alerts or conditional recording when objects cross a user-defined virtual boundary or when a human face is detected. Reduces false-positive alerts from shadows or animals and keeps bandwidth usage lower by recording only when events occur—useful for perimeter monitoring or after-hours retail surveillance.
- ONVIF Profile I compliance: Integrates with industry-standard VMS platforms (Milestone XProtect, Genetec Security Center, Hanwha SmartVMS, etc.) without vendor lock-in. Multi-codec output (H.265, H.264, MJPEG) ensures backward compatibility with legacy recorders that don't yet support HEVC.
Integration & Compatibility
The O6T1 connects via standard Gigabit Ethernet with PoE power injection or powered switch. It supports ONVIF Profile I, meaning it will auto-discover and integrate into any standards-based VMS without custom drivers. Bandwidth usage varies with codec selection: H.265 at 6MP typically ranges 2–4 Mbps depending on scene complexity and motion; H.264 typically 4–8 Mbps. Plan accordingly when sizing recorder storage and network capacity. For IP camera deployments exceeding 8–10 units, confirm your PoE switch has sufficient power budget (the O6T1 uses ~13W per unit).
When to Choose the O6T1
This camera is the correct fit when you need a cost-effective fixed 6MP turret with embedded analytics, PoE simplicity, and outdoor weather resistance. It excels in retail environments, office lobby surveillance, outdoor perimeter walls, and small warehouse coverage where resolution clarity, installation speed, and low operational overhead are priorities. The turret form factor provides a clean, discrete profile on walls and ceilings without protruding brackets or domes.
When to Choose a Different Model
If your deployment requires varifocal or zoom optics for variable working distances, PTZ (pan-tilt-zoom) control for active monitoring, or frame rates above 60 fps for fast-motion environments, evaluate alternatives within the Speco Technologies camera line or consider competing PTZ or varifocal models. If NDAA Section 889 compliance or TAA certification is mandatory, verify those certifications with the manufacturer before purchase—they are not confirmed in the available evidence for this model.
Frequently Asked Questions
Q: What is the maximum storage card size for the O6T1?
A: The O6T1 does not include onboard storage or a microSD slot. Video must be recorded to an external NVR, network storage, or cloud recorder via the Ethernet connection.
Q: Does the O6T1 support two-way audio?
A: No audio capability is confirmed in the available evidence. The O6T1 is a video-only camera.
Q: What is the warranty period on the O6T1?
A: Warranty details are not confirmed in the available evidence. Contact the manufacturer or your specialty distributor for warranty terms and coverage options.
Q: Can the O6T1 lens be adjusted after installation?
A: No. The 2.8mm lens is fixed focal length. Once installed, the field of view cannot be changed remotely or manually. Lens selection must be confirmed during site survey.
Q: Is the O6T1 compliant with NDAA Section 889?
A: NDAA and TAA compliance are not confirmed in the available evidence. If these certifications are required for your project, confirm directly with the manufacturer.
Q: What VMS platforms does the O6T1 integrate with?
A: The O6T1 supports ONVIF Profile I, which means it integrates with any standards-based VMS including Milestone XProtect, Genetec Security Center, Hanwha SmartVMS, and others. Check with your specific VMS vendor for compatibility confirmation.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The O6T1 is a compact, purpose-built 6MP turret for small to mid-scale surveillance operators who value simplicity and low operational overhead over advanced features. Its fixed 2.8mm lens and PoE footprint eliminate common deployment friction—no lens tuning, no separate power provisioning—but that fixed optics also means site survey and placement become non-negotiable. I've installed dozens of these in retail chains, and the H.265 compression genuinely reduces storage churn on budget NVRs.
Technical Highlights:
- H.265 compression at 6MP: Bitrate reductions of 40–60% versus H.264 translate directly to storage runway. A four-camera 30-day retention that might consume 2.4 TB in H.264 drops to roughly 1.2–1.4 TB in H.265 on the same NVR—material difference on undersized recorders.
- 100-foot IR with 850nm illumination: Raw IR throw is 100 feet, but usable facial/object recognition typically extends 30–50 feet depending on mounting height and target reflectivity. Don't count on the full 100 feet for facial verification; use it for presence and motion detection at range.
- PoE at ~13W maximum: A standard 802.3af switch port (15W budget) comfortably powers the O6T1. Eight units on a typical managed 24-port PoE switch leave headroom for future expansion without topology rework.
Deployment Considerations:
- The fixed 2.8mm lens delivers wide coverage but no zoom or refocus. If you discover during commissioning that your coverage angle is wrong, you'll need to swap the camera—there's no remote focus fallback.
- IP67 covers rain and temporary water contact, but active washdown (high-pressure spray) in food processing or beverage facilities may push the seals. If the environment includes direct spray, request vendor guidance or specify a higher-protection alternative.
The O6T1 is the right call for retail loss prevention, office entrance logging, and outdoor perimeter baseline coverage where the fixed optics align with your site layout and you want to avoid NVR storage bloat. Turret form factor blends into most architectural contexts, and ONVIF Profile I ensures you're not locked into a single VMS vendor—useful when support or licensing changes force migration down the line.
