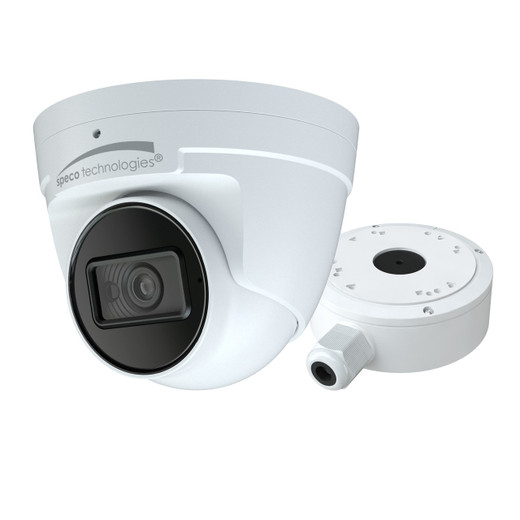

Speco Technologies O8T9 8MP IP Turret Camera
Overview
The Speco Technologies O8T9 is an 8MP (3840×2160) fixed turret camera engineered for mixed indoor and outdoor surveillance where environmental durability and forensic image quality matter. The turret form factor mounts flush to flat surfaces, resisting rain and dust contamination better than bullet designs—essential in warehouse, parking structure, and utility building deployments. ONVIF Profile P compliance ensures integration with any standards-based network video recorder or VMS without proprietary licensing. NDAA Section 889 compliance qualifies the O8T9 for federal, state, and municipal projects where supply-chain assurance is a contractual requirement.
Key Features
- 8MP resolution (3840×2160): Captures sufficient detail for forensic review and legible facial/license-plate identification across wide areas—meaningful when you're reviewing recorded incidents days later and need to confirm suspect identity or vehicle registration.
- Fixed 2.8mm lens with 1/2.8" CMOS sensor: Wide horizontal field of view suitable for lobby, hallway, and general area coverage. No varifocal adjustment eliminates focus drift during temperature cycling and vibration—a real reliability win in manufacturing and transit environments where thermal swings are common.
- H.265 video compression: Cuts bandwidth and storage costs 40–60% compared to H.264, depending on scene complexity. On a 24/7 multi-camera NVR, this difference compounds fast—fewer hard drives, lower power consumption, cheaper long-term storage.
- True day/night with mechanical IR cut filter: Automatically switches between color imaging in daylight and monochrome at night without manual intervention. True WDR (wide dynamic range) handles backlit scenes—windows next to dark interior spaces—without ghosting or shadow loss. Ensures usable forensic video in mixed-lighting scenes.
- 30fps at full 8MP resolution: Smooth motion capture at the camera's native resolution, not downsampled playback. Real-time responsiveness for security operations center (SOC) monitoring and incident response.
- PoE (802.3af) power, 9.0W consumption: Standard 15.4W PoE supplies the O8T9 and three additional cameras per port. No 12V power runs, no external transformers, no electrical permitting headaches. Simplified cabling cuts installation labor and spares budget.
- IP67 environmental rating: Direct rain, dust, and hose-down spray won't degrade the image. Skip this if you need full submersion (fish tanks, submerged underwater housings)—IP67 stops at temporary water contact, not sustained immersion.
- Embedded analytics (line crossing, face detection, vehicle detection): Runs on-camera without external edge servers or cloud processing. Line crossing triggers alerts when objects breach perimeter zones—reduces false alarms in high-traffic areas. Face detection flags human subjects for rapid investigative review. Vehicle detection supports parking lot occupancy and toll-booth classification workflows. These cut bandwidth via intelligent recording: record detail only when analytics fire, not 24/7 raw streams.
- NDAA compliance: No Chinese components in the supply chain. Meets GSA Schedule and federal procurement rules—a hard requirement, not a nice-to-have, in government and critical-infrastructure bids.
Integration and Compatibility
The O8T9 is ONVIF Profile P compliant, meaning it streams H.265 and H.264 video via RTSP to any standards-based NVR or VMS. Built-in microphone supports audio input for two-way communication via SIP or ONVIF audio channels—useful for access-controlled perimeter gates or warehouse loading dock communication. No proprietary plugins, no vendor lock-in.
When to Choose the O8T9
- You need high-resolution forensic imaging across wide areas—hallways, loading docks, parking structures—where legible subject identification drives post-incident investigation ROI.
- Your PoE switch budget is tight. At 9W, the O8T9 leaves room for four units per 60W PoE+ port, maximizing infrastructure efficiency.
- Federal, state, or municipal contract requires NDAA compliance and supply-chain transparency—the O8T9 passes procurement audit without exception.
- Turret form factor is a non-negotiable: your mounting surface is flat concrete, brick, or panel, and you want minimal weathering on the lens and sensor.
- Your VMS or NVR is ONVIF-native. No custom integrations needed; the O8T9 plugs in like any other standards camera.
When to Choose Alternatives
- PTZ or remote zoom required: The O8T9 uses a fixed 2.8mm lens. Consider a varifocal turret or PTZ model if you need zoom flexibility post-deployment or motorized pan/tilt tracking.
- Extended IR night vision: The O8T9 lacks integrated IR illumination. Design assumes ambient light at night (street lights, parking lot floods). If you need true dark-condition imaging, select a camera with integrated 850nm IR and published range specs (e.g., 30m+).
- Ultra-high resolution (12MP+) or high-speed capture (60fps+): The O8T9 maxes at 8MP and 30fps. For forensic lip-reading detail or sports-field tracking, step up to higher-megapixel or higher-frame-rate variants in the Speco Technologies catalog.
- Extreme temperature ranges: Operating range is –40°F to 140°F. If your site hits Arctic conditions (below –40°F) or extreme heat (above 140°F), verify thermal specs on alternative models before specifying.
Frequently Asked Questions
Q: Is the O8T9 NDAA Section 889 compliant?
A: Yes. The O8T9 carries NDAA compliance, confirming it meets supply-chain requirements for federal, state, and municipal procurement. No Chinese-origin components in the critical path.
Q: What compression codecs does the O8T9 support?
A: H.265 (primary, cuts bandwidth 40–60% vs H.264) and H.264. MJPEG is not specified. H.265 is enabled by default; H.264 is available for legacy VMS or PoE-limited networks.
Q: Does the O8T9 have built-in infrared illumination?
A: No. The O8T9 is designed for lit or minimally lit environments (ambient light from street lamps, parking floods). It includes a mechanical IR cut filter for day/night operation but no active IR emitter. For true darkness (0 lux) deployment, choose a model with 850nm or 940nm IR illumination and published range specs.
Q: What is the maximum PoE power draw?
A: 9.0W. This allows four O8T9 units per 60W PoE+ port, or five units per 90W PoE++ port. No separate 12V supply needed.
Q: Is the O8T9 compatible with Milestone XProtect and other ONVIF VMS platforms?
A: Yes. ONVIF Profile P compliance ensures integration with any standards-based NVR or VMS. No proprietary plugins required. Verify your VMS version supports ONVIF streaming (H.265 support varies by platform release).
Q: Can the O8T9 be wall-mounted, or is it ceiling-only?
A: The turret form factor supports wall and ceiling mounting. Flat surface contact is required; pendant/pole mounts require adapters. Confirm mount hardware availability with your integrator before specifying.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The O8T9 is a workhorse turret for integrators who don't want to explain why a bullet camera collected rain on the lens. The 8MP resolution and ONVIF compliance give you the forensic quality and vendor-neutral integration that warehouses and municipal contracts demand, and the 9.0W power footprint means you're not burning through your PoE budget on a single camera.
Technical Highlights:
- H.265 compression with true WDR: 40–60% bandwidth reduction vs H.264, plus wide dynamic range handling for backlit dock doors and mixed-lighting loading bays. On a 24-camera warehouse system recording 24/7, this is a 2–3 TB/week storage savings—real money in year-two operating costs.
- 9.0W PoE consumption: Four O8T9 units fit comfortably on a single 60W PoE+ port. You won't need to upgrade switch infrastructure to deploy O8T9s across a warehouse floor or parking structure.
- Embedded analytics (line crossing, face detection, vehicle detection): Reduces false alarm noise in SOC monitoring by triggering alerts only when the camera detects a rule violation. Line crossing is particularly useful for perimeter enforcement in distribution centers where forklifts and foot traffic cross constantly.
Deployment Considerations:
- Fixed 2.8mm lens means upfront site survey is non-negotiable. Field of view is locked at deployment. If coverage expectations shift post-installation, you'll need to reposition the camera or add a second unit—there's no zoom to compensate.
- No integrated IR illumination. The O8T9 relies on ambient light at night. Parking structures with LED floods or warehouses with 24-hour lighting work fine. Outdoor perimeter sites without passive lighting will produce very dark or useless night footage—factor in separate IR illuminator or lighting in the network design.
- Turret form factor requires flat mounting surface. Pendant poles, corner brackets, and articulating arms need adapters. Confirm bracket availability before you lock in the camera model.
The O8T9 is the right call for warehouse receiving docks, multi-story parking structures, and municipal utility sites where NDAA compliance is a line-item requirement, environmental durability beats bullet aesthetics, and PoE budget is scarce. Skip it if you need PTZ tracking, extreme darkness imaging without auxiliary lighting, or frame rates above 30fps.
