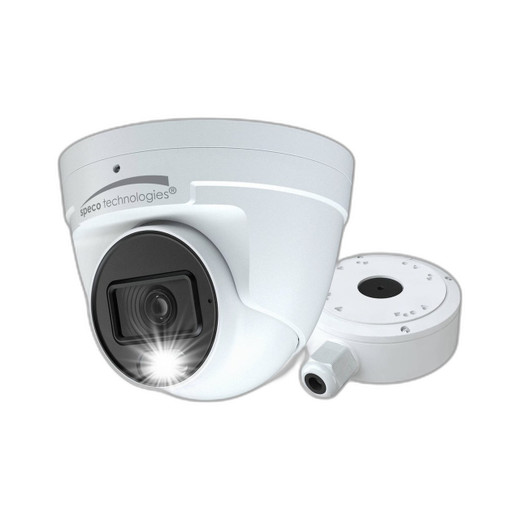

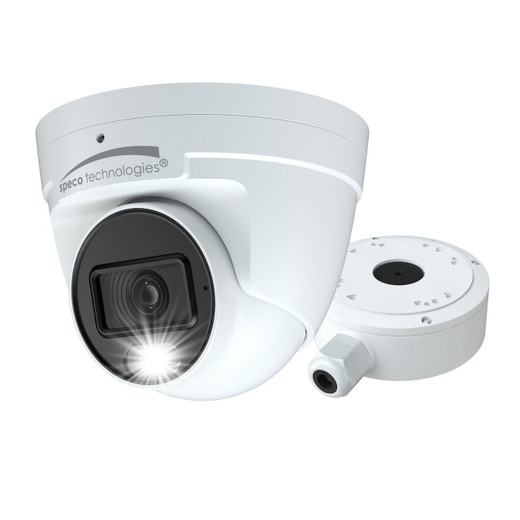

Speco Technologies O4LT1 4MP IP Turret Camera
Overview
The Speco Technologies O4LT1 is a compact 4MP (2560×1440) turret-form IP camera built for outdoor perimeter, parking lot, and facility entrance monitoring. It uses a 1/3" CMOS sensor paired with white light intensifier technology—eliminating the infrared glow and heat signature of traditional night vision, yet maintaining usable image quality across day and night cycles without supplemental lighting in semi-lit environments. Operating on standard PoE+ (802.3at), the O4LT1 draws just 5.5W, meaning it won't strain your network switch power budget even in large multi-camera deployments. IP67 weathering handles direct rain and dust without concern. The camera runs edge-based motion and vehicle detection analytics, reducing false alarms and cutting bandwidth overhead by filtering low-confidence events before they reach your recorder or VMS.
Key Features
- 4MP Resolution (2560×1440): Delivers sufficient detail for facial recognition and license plate capture at typical security distances (10–25 feet), balancing image clarity with manageable file sizes.
- 2.8mm Fixed Lens: Provides a moderate, predictable horizontal field of view suited to entry points and perimeter segments; fixed design eliminates focus drift after installation but requires accurate pre-deployment distance verification.
- True Wide Dynamic Range (WDR): Automatically balances exposure across high-contrast scenes—windows, backlighting, mixed indoor/outdoor transitions—ensuring readable faces and detail in shadowed areas without overexposed bright spots.
- White Light Intensifier Night Mode: Augments low-light image brightness using visible-spectrum amplification rather than infrared LEDs; ideal for urban or semi-lit sites where ambient light is available and IR bleed or thermal concerns are a factor.
- H.265/H.264 Dual Encoding: H.265 delivers roughly 50% better compression than H.264 at equivalent quality—a meaningful saving on 24/7 recordings across dozens of cameras, reducing both storage footprint and network bandwidth consumption.
- Edge Motion & Vehicle Detection: On-camera analytics trigger alerts and event recording based on detected motion or vehicle presence, suppressing false positives from wind, shadows, or lighting flicker and reducing reliance on server-side processing.
- PoE+ Powered (5.5W): Standard 802.3at PoE injection means no separate power supply; minimal wattage draw keeps your network infrastructure lean and avoids power-budget conflicts in switch oversubscription scenarios.
- IP67 Environmental Rating: Sealed against direct rain and dust; suitable for exposed outdoor mounting (eaves, poles, walls) where equipment must survive seasonal weather without protective enclosures.
- Operating Temperature −40°F to 140°F: Maintains stable imaging across temperature extremes typical of North American outdoor sites, from winter freeze to summer heat.
- ONVIF Profile P Certification: Integrates cleanly into heterogeneous VMS platforms—Milestone, Genetec, or open-standard ecosystems—without vendor lock-in or custom drivers.
- NDAA Section 889 Compliant: Meets federal procurement restrictions, clearing integration into government and sensitive-facility deployments.
Integration & Compatibility
The O4LT1 conforms to ONVIF Profile P, enabling straightforward integration into standard IP camera management ecosystems. Edge analytics—motion and vehicle detection—emit ONVIF-compliant event streams, so your VMS can consume alerts and trigger recording rules without custom middleware. The camera pairs with any PoE-capable network switch delivering 802.3at (minimum 30W per port) and supports both H.265 and H.264 encoding, allowing you to optimize compression per your recorder's capability and storage policy.
When This Is the Correct Choice
Choose the O4LT1 when you need a low-power, compact turret for outdoor perimeter or entrance monitoring in environments where supplemental or ambient lighting is available. White light intensification is preferable if you want to avoid infrared bleed into adjacent spaces or if thermal concerns limit IR use. The fixed 2.8mm lens and 30fps maximum frame rate suit static coverage areas; if you need zoom or pan-tilt capability, a PTZ model is necessary. PoE simplicity and edge analytics make this a cost-effective choice for multi-camera deployments where installation labor and infrastructure cost matter.
When to Choose a Different Model
If your site operates with minimal or zero ambient light (dense forest, unlit parking garage, interior loading dock), a camera with active infrared illumination and lower minimum lux rating will deliver superior night performance. If you need varifocal or zoom capability to re-frame coverage after installation, the fixed 2.8mm lens is a limitation; consider a higher-end turret camera with a motorized lens in the same family. If you require frame rates exceeding 30fps or pan-tilt-zoom functionality, the O4LT1's fixed form factor and speed ceiling won't suffice. For indoor-only or climate-controlled installations, a non-weathered dome or compact turret may offer equivalent performance at lower cost.
Frequently Asked Questions
Q: Does the O4LT1 work with Milestone XProtect or Genetec Security Center?
A: Yes. The O4LT1 is ONVIF Profile P certified, meaning it integrates into any standards-compliant VMS, including Milestone XProtect and Genetec Security Center, without custom drivers or firmware.
Q: Can the O4LT1 be used indoors, or is it outdoor-only?
A: The O4LT1 is rated for outdoor and semi-exposed environments (IP67). While it can be mounted indoors, its white light intensifier design assumes some ambient light availability; in completely dark indoor spaces, an infrared camera would be more practical.
Q: What is the difference between the white light intensifier and infrared night vision?
A: White light intensifier amplifies visible-spectrum ambient light (moonlight, street lamps, building lights) to improve low-light images. Infrared uses active LED illumination invisible to the human eye. White light avoids IR glow, heat signatures, and light bleed into adjacent spaces; infrared works in complete darkness but consumes more power and can reflect off nearby surfaces.
Q: Is the O4LT1 NDAA Section 889 compliant?
A: Yes, the O4LT1 is NDAA-compliant, meeting federal procurement restrictions for government and sensitive-facility deployments.
Q: What is the warranty on the O4LT1?
A: Warranty terms are not specified in the available evidence. Contact the manufacturer or an specialty reseller for warranty details.
Q: Can I use a standard PoE switch, or do I need PoE+?
A: The O4LT1 is rated for PoE+ (802.3at) but draws only 5.5W max, so it will function on standard PoE (802.3af) switches as well. However, PoE+ is recommended to avoid power-budget constraints if you are powering multiple higher-wattage cameras on the same switch.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco Technologies O4LT1 hits a specific deployment sweet spot: outdoor perimeter and entrance monitoring where ambient or supplemental lighting is available and infrared isn't practical or desired. The white light intensifier approach is genuinely useful in urban and semi-lit environments—parks, downtown plazas, lit parking lots, building exteriors with street or building lighting. At 5.5W draw, the O4LT1 won't trigger power-budget contention on modest PoE switches, and the IP67 rating means you can mount it directly to exterior walls or poles without a protective housing.
Technical Highlights:
- H.265 Compression at 4MP: Cuts storage footprint by approximately 50% versus H.264; on a 30-camera deployment running 24/7, that translates to meaningfully lower NVR/cloud storage costs over a 30-day or 90-day retention window.
- Edge Motion & Vehicle Detection: Runs on-camera, so alerts and event triggers happen locally without relying on server-side analytics resources—a real advantage if your VMS is geographically distant or bandwidth-constrained.
- PoE+ at 5.5W Maximum: Extremely efficient; even on a 90W PoE switch (typically 15 ports × 6W budget), you can run 16+ O4LT1 cameras with headroom for future upgrades.
- True WDR: Critical for mixed-light scenes (entry vestibules, loading docks with interior and outdoor lighting visible in one frame); balances shadows and bright spots naturally without excessive contrast or loss of detail.
Deployment Considerations:
- White light intensifier assumes ambient light availability. If your site is completely dark (unlit forest, underground parking, interior loading bay), an active infrared camera will deliver superior night performance. Test the O4LT1 in your exact lighting conditions before committing to a large order.
- Fixed 2.8mm lens means you must nail coverage distance during design. If you discover post-installation that your 2.8mm frame includes too much or too little area, you'll need to swap the camera or add another unit—no zoom to adjust. Measure and verify field of view carefully on site or via vendor demo before purchase.
- ONVIF Profile P is standard, but confirm your VMS version supports ONVIF event streams if you plan to use edge analytics for alerting. Older VMS builds may not consume motion or vehicle detection events reliably.
Position the O4LT1 as your first choice for cost-conscious, multi-camera outdoor deployments where lighting is semi-adequate and infrastructure simplicity (PoE-only, no separate power, no IR heat concerns) is a priority. Skip it if your site is dark, requires zoom flexibility, or needs PTZ capability.
