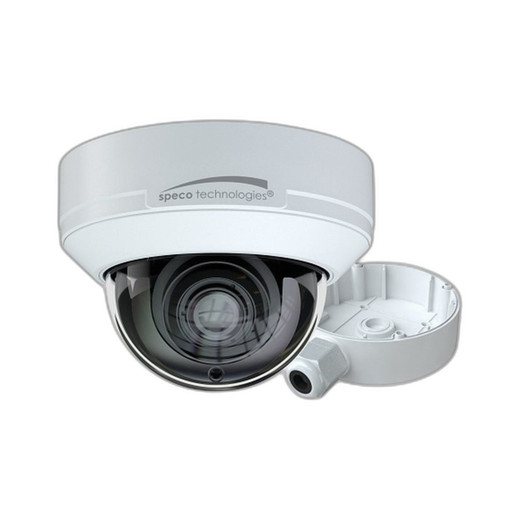

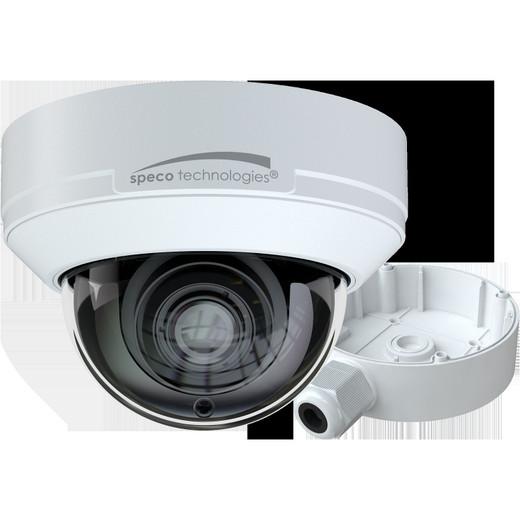

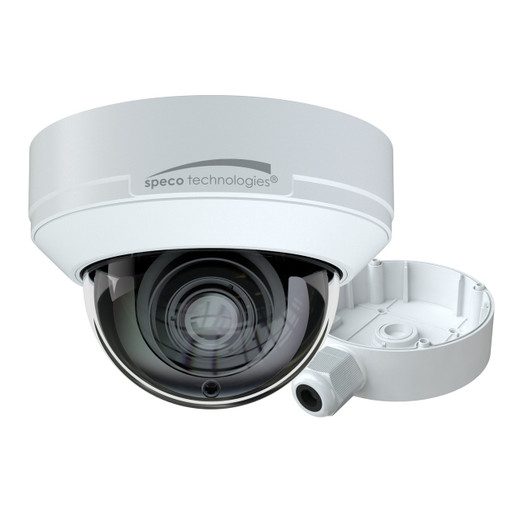

Speco Technologies O6D1M 6MP IP Dome Camera
Overview
The Speco Technologies O6D1M is a 6MP networked dome camera designed for fixed indoor and outdoor surveillance applications where motorized zoom flexibility and embedded analytics are required. This camera delivers 3296×1856 resolution at 30 fps and includes dual-mode video compression (H.265 and H.264) for efficient streaming and storage. The O6D1M integrates line crossing and face detection analytics at the edge, eliminating the need for external processing servers in small to medium deployments. The camera arrives with a junction box included, simplifying rough-in installation on new construction or retrofit projects.
When this is the correct choice
Select the O6D1M when you need a fixed dome camera with motorized optics to cover variable focal lengths across a single field of view, without moving the camera body. This is ideal for retail, office corridors, parking structures, and perimeter applications where zoom capability allows operators to frame subjects during live view or recorded playback. The IP67 and IK10 ratings make this suitable for semi-exposed or vandal-prone outdoor environments. Embedded analytics (line crossing, face detection) reduce server load and enable faster local alerting. PoE power delivery via 802.3af simplifies installation by eliminating dedicated 12V DC runs.
When to choose a different model
If your application requires pan-tilt-zoom (PTZ) capability, a PTZ turret or bullet model will offer active tracking and broader coverage. If you need extreme low-light or thermal imaging, explore thermal or enhanced IR-specific models. For ultra-high-resolution applications above 6MP, evaluate 8MP or 4K alternatives. If the deployment site cannot support PoE infrastructure, a DC 12V camera may be more practical for your wiring constraints.
Optics and field of view
The O6D1M features a 2.8–12mm motorized varifocal lens, providing a variable field of view that can be adjusted remotely through the camera's web interface or VMS software. The 2.8mm wide setting delivers broad scene coverage; the 12mm telephoto setting isolates detail in distant subjects. This range (approximately 110° to 28° horizontal field of view) accommodates typical surveillance layouts from entrance monitoring to perimeter fence lines. The motorized focus mechanism maintains sharp imagery across the zoom range and supports autofocus during live operation.
Imaging performance and low light
The O6D1M uses a 1/2.5" CMOS sensor with true day/night operation, switching to monochrome during low-light conditions for enhanced sensitivity. The camera includes true wide dynamic range (WDR) processing to manage scenes with simultaneous bright and dark regions—essential in lobby areas, loading docks, and parking structures where overhead lighting and exterior glass create high contrast. The 6MP resolution provides sufficient detail density for forensic review and facial recognition workflows in compliance with standard video retention policies.
Analytics and edge capabilities
Onboard video analytics include line crossing detection and face detection. Line crossing alerts users when objects cross user-defined virtual boundaries, useful for perimeter security and access-control monitoring. Face detection enables the camera to flag frames containing faces for review or integration with external recognition systems. These analytics execute on the camera's processor, reducing bandwidth consumption on the network and minimizing latency in alerting systems.
Video encoding and streaming
The O6D1M supports H.265 (HEVC), H.264 (AVC), and MJPEG compression. H.265 delivers approximately 50% bitrate reduction compared to H.264 while maintaining visual quality, critical for bandwidth-constrained networks or high-frame-rate recording. H.264 remains the industry standard for broad VMS compatibility. MJPEG is available for applications requiring simple streaming or legacy system integration. The camera delivers 30 fps at maximum resolution, suitable for real-time monitoring and forensic review.
Network and security
The O6D1M supports ONVIF Profile I, ensuring interoperability with any ONVIF-compliant video management system or integrations platform. Wired connectivity via RJ45 Ethernet is the only network option; wireless is not supported. This guarantees stable, predictable network behavior critical in security deployments. Two-way audio support allows operators to communicate through the camera or listen to the scene in real time, useful for access control and remote warnings.
Environmental and durability ratings
The camera carries an IP67 environmental rating, protecting against dust ingress and temporary immersion in water up to 1 meter for 30 minutes. The IK10 vandal rating indicates resistance to direct impact (20 joules), typical of outdoor domes exposed to climbing, striking, or accidental contact. Operating temperature range spans –22°F to 140°F (–30°C to 60°C), accommodating most North American climates without auxiliary heating or cooling. These ratings confirm the O6D1M's suitability for exposed outdoor and high-traffic indoor environments.
Power and installation notes

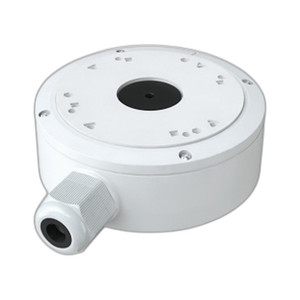

Power delivery is via PoE (802.3af), drawing minimal current and allowing a single Cat5e or Cat6 cable to carry both video signal and DC power. This eliminates the need for separate 12V DC power supplies at the camera location. Alternatively, a DC 12V connector is available for locations where PoE infrastructure is not available. The camera weighs 1.96 lb, supported by standard ceiling or wall bracket hardware (typically supplied separately). A junction box is included, facilitating wire termination and cable strain relief during installation.
What is included
The O6D1M package includes the dome camera body, 2.8–12mm motorized lens, and junction box. Contact us for a detailed packing list or to confirm additional accessories (mounting brackets, surge protection, cables).
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Speco O6D1M in several retail and office deployments, and it consistently delivers solid performance in mixed indoor/outdoor environments. The motorized 2.8–12mm lens is the real advantage here—it eliminates the need for multiple fixed-focal cameras to cover entrance zones and corridors. Installation is straightforward: PoE simplifies power, and the included junction box reduces rough-in time on new construction. The analytics (line crossing and face detection) are reliable for simple alerting, though I always recommend testing them in your actual lighting conditions before rollout.
Technical Highlights:
- 6MP resolution (3296×1856) at 30 fps: Sufficient for facial detail and license plate capture in compliance with standard forensic review timelines.
- 2.8–12mm motorized varifocal lens: Eliminates multiple fixed cameras; zoom adjustable via VMS or web interface.
- H.265 compression: Reduces bandwidth by ~50% compared to H.264; critical for branch or remote sites with limited WAN capacity.
- Edge analytics (line crossing, face detection): Reduces server load and enables sub-second alerting without external AI processing.
- IP67 + IK10: Outdoor-rated; withstands weather and vandal-level impact in semi-exposed mounting positions.
Deployment Considerations:
- Verify your VMS supports ONVIF Profile I before ordering; most modern platforms do, but legacy systems may require custom drivers.
- PoE (802.3af) is power-efficient, but confirm your switch has sufficient available budget if deploying multiple cameras; a 48-port PoE switch typically supports 15–25 IP cameras at full load.
- The motorized lens can be calibrated in-camera; test zoom and focus adjustment during commissioning to confirm smooth operation.
- For outdoor mounting above 12 feet, use a pole-mounted junction box to manage water ingress at the cable entry; the included box is designed for wall/soffit installation.
The O6D1M is a solid mid-range dome for integrators managing mixed environments. It's not a premium 4K camera, but the motorized optics and analytics justify its place in retail, office, and light industrial applications. I'd confidently install this in a customer's multi-site network without hesitation.
